DTC P0121 Throttle Position (TP) Sensor Rationality Check: Notes

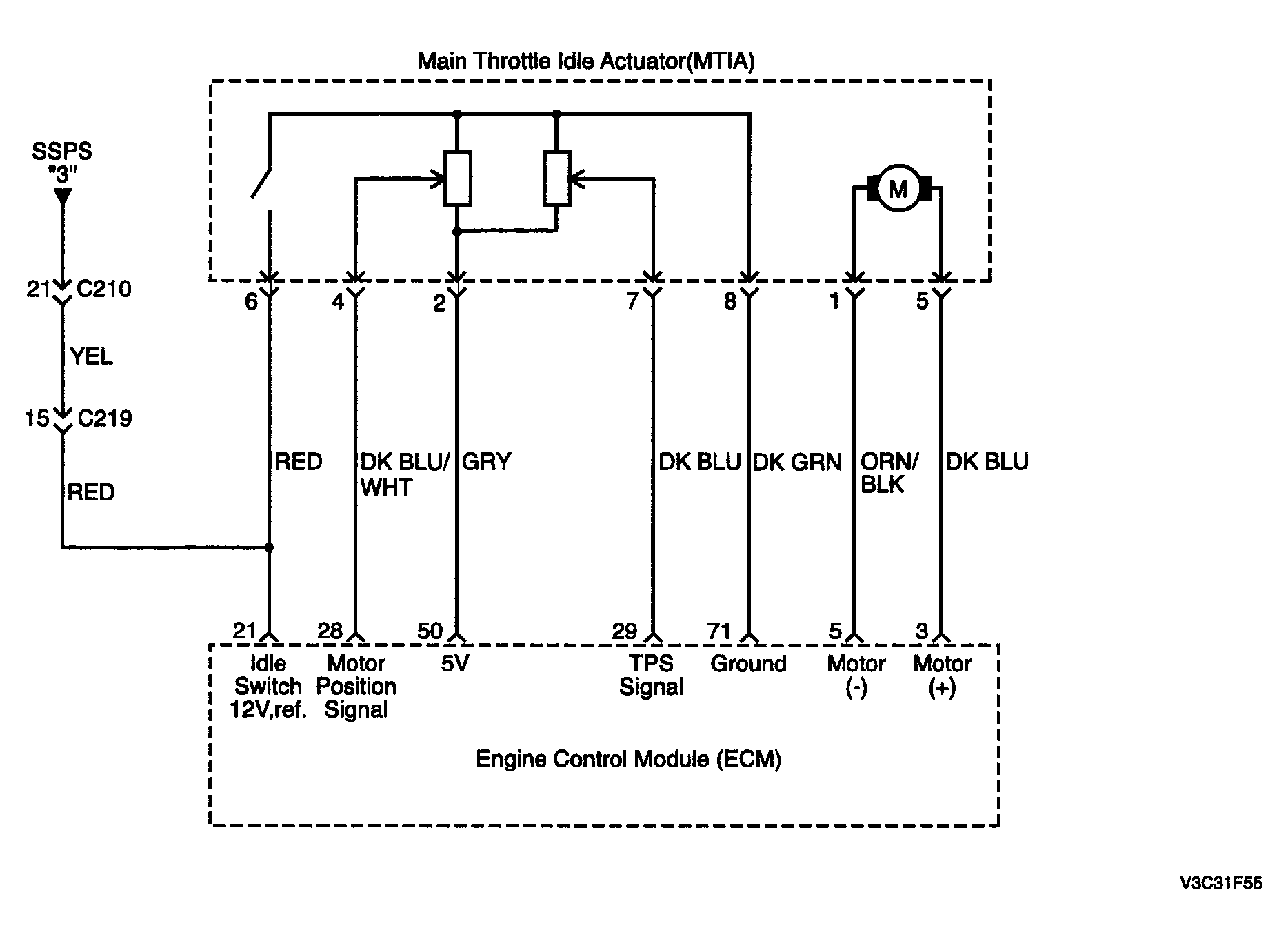

Fig 1: P0121 Throttle Position (TP) Sensor Rationality Check - Circuit Diagram
G04094433Courtesy of SUZUKI OF AMERICA CORP.
