Home >> Suzuki >> 2005 >> Verona EX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine General Information And Diagnosis >> Diagnostic Information and Procedures >> DTC P0444 EVAP Purge Control Valve Circuit Open >> Notes
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

DTC P0444 EVAP Purge Control Valve Circuit Open: Notes

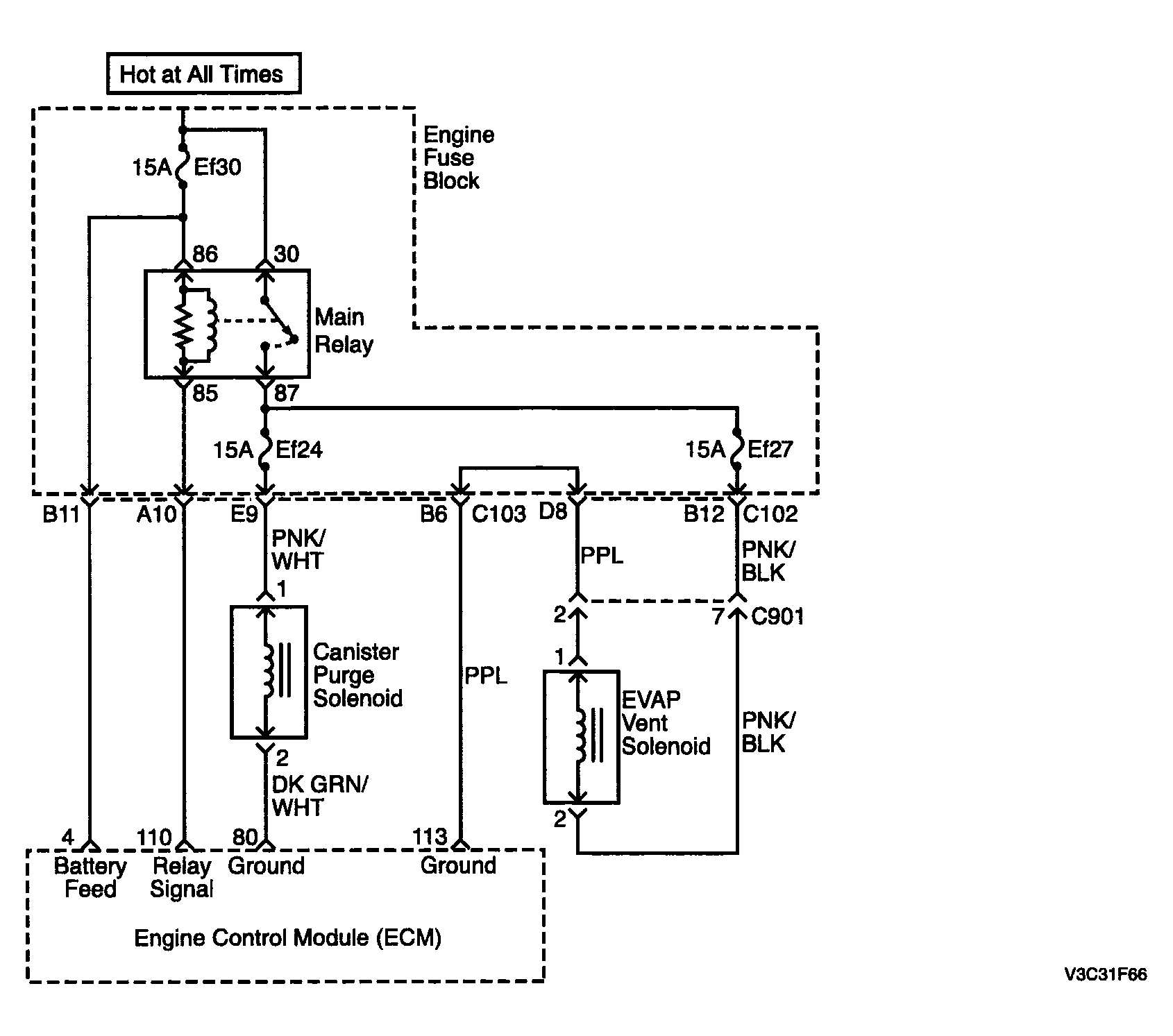

Fig 1: P0444 EVAP Purge Control Valve Circuit Open - Circuit Diagram
G04094490Courtesy of SUZUKI OF AMERICA CORP.
