On-Board Diagnostic (OBD II) System Check: Notes

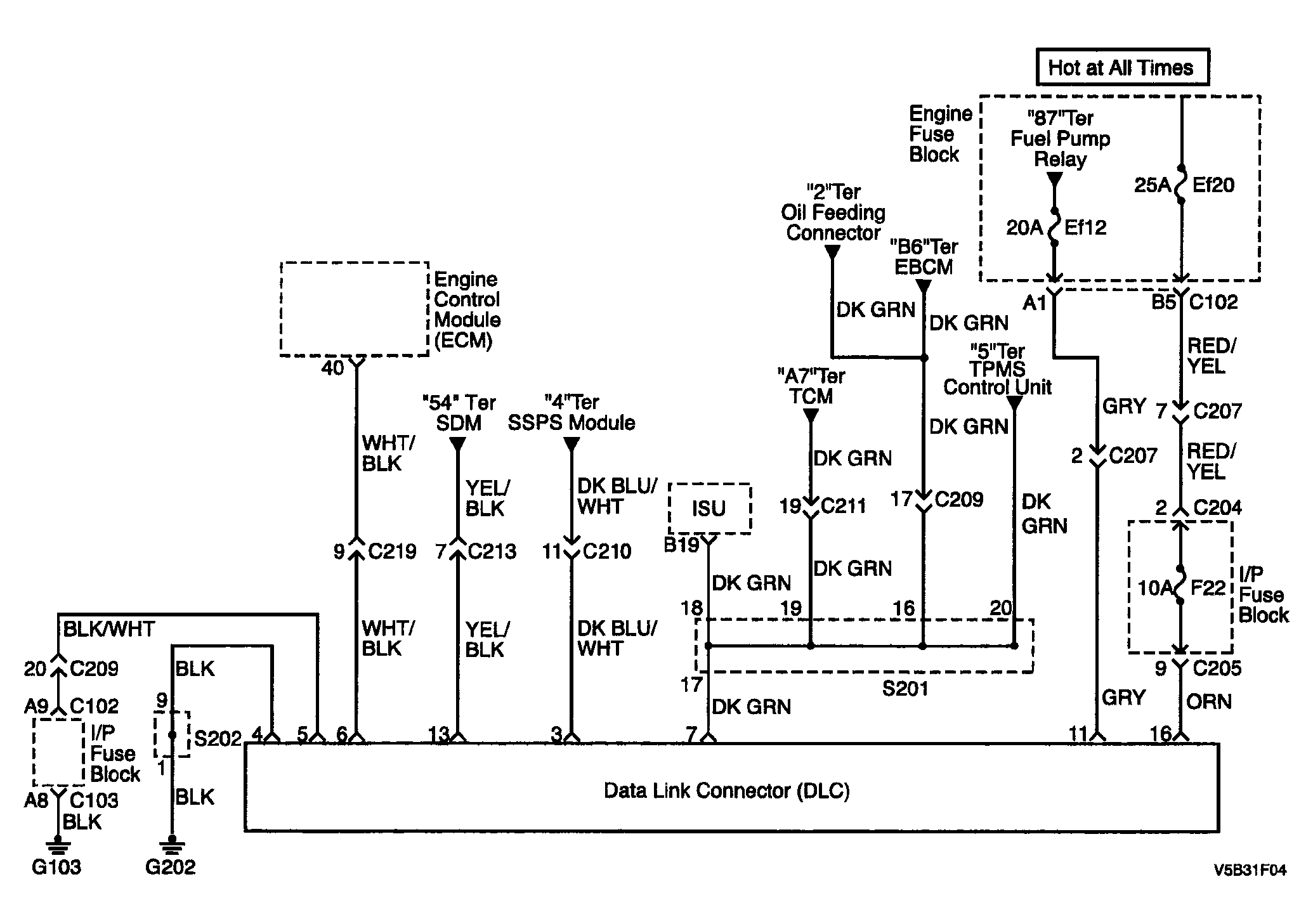

Fig 1: On-Board Diagnostic (OBD II) System Check - Circuit Diagram
G04094404Courtesy of SUZUKI OF AMERICA CORP.
