DTC B1448 OC Passenger Sensor MAT Defect: Notes

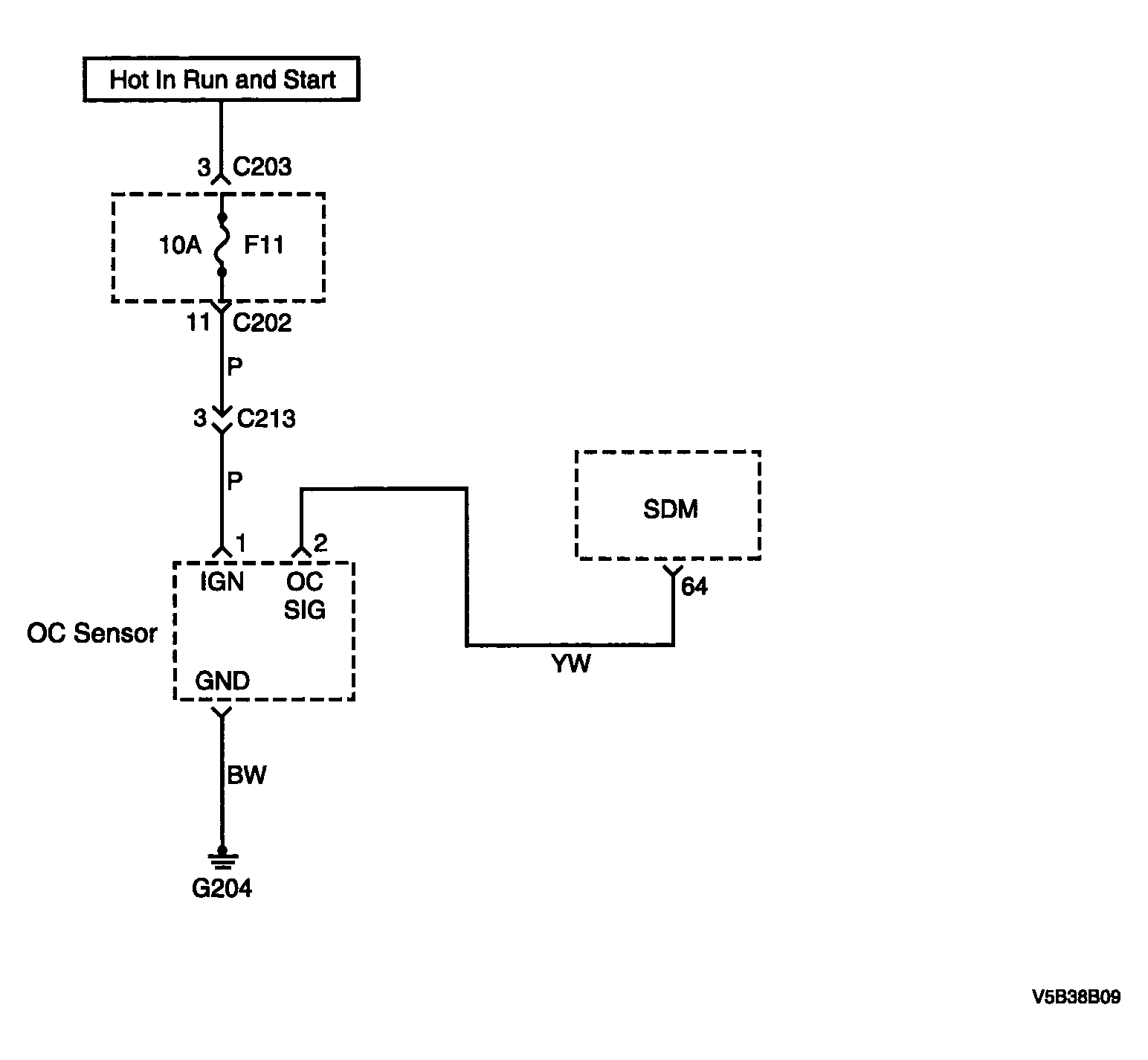

Fig 1: DTC B1448 Circuit OC Passenger Sensor MAT Defect
G04096046Courtesy of SUZUKI OF AMERICA CORP.
