Torque Converter Components

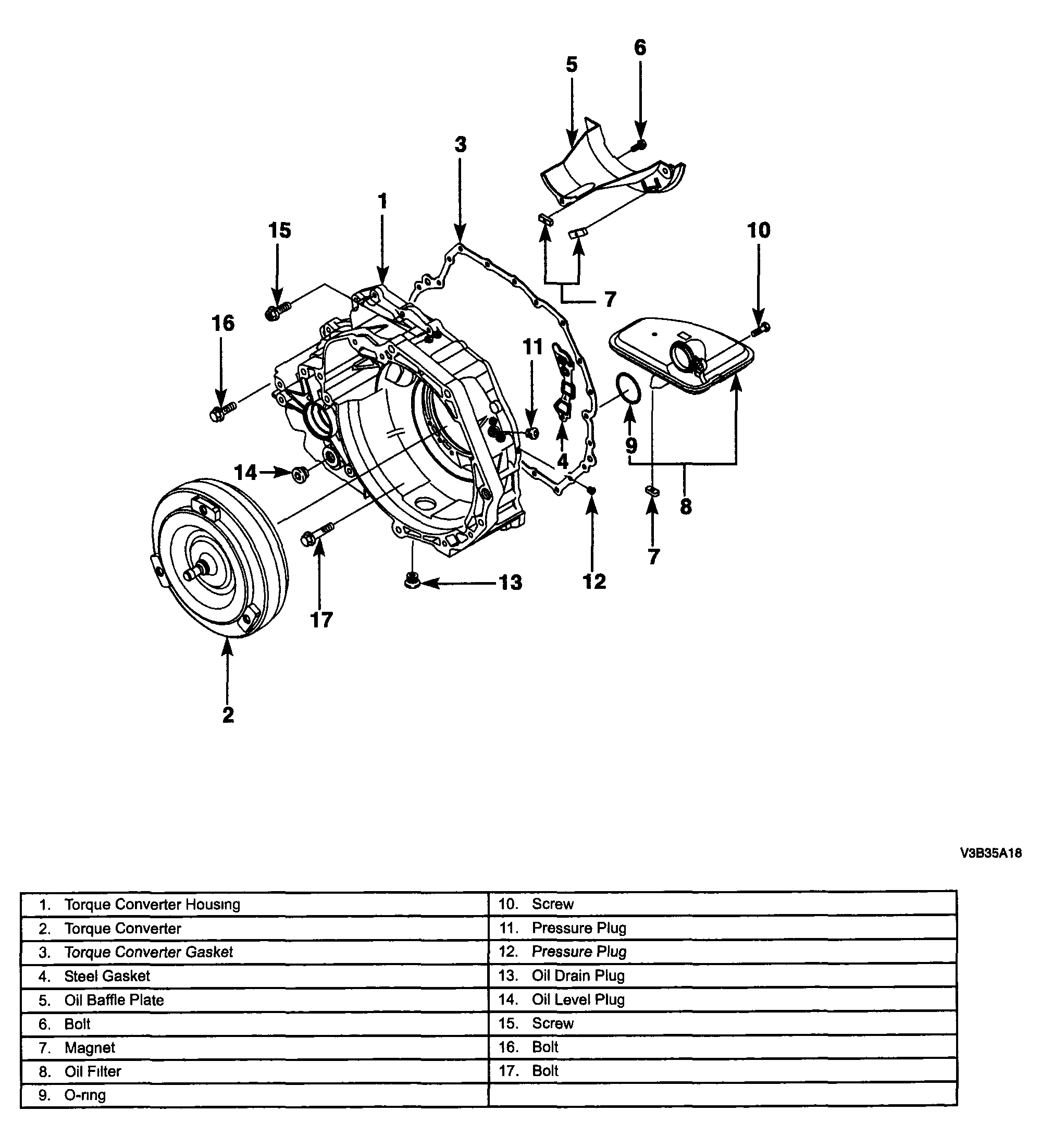

Fig 1: Exploded View Of Torque Converter Components
G04095484Courtesy of SUZUKI OF AMERICA CORP.
