DTC P0274 Injector 5 High Input: Notes

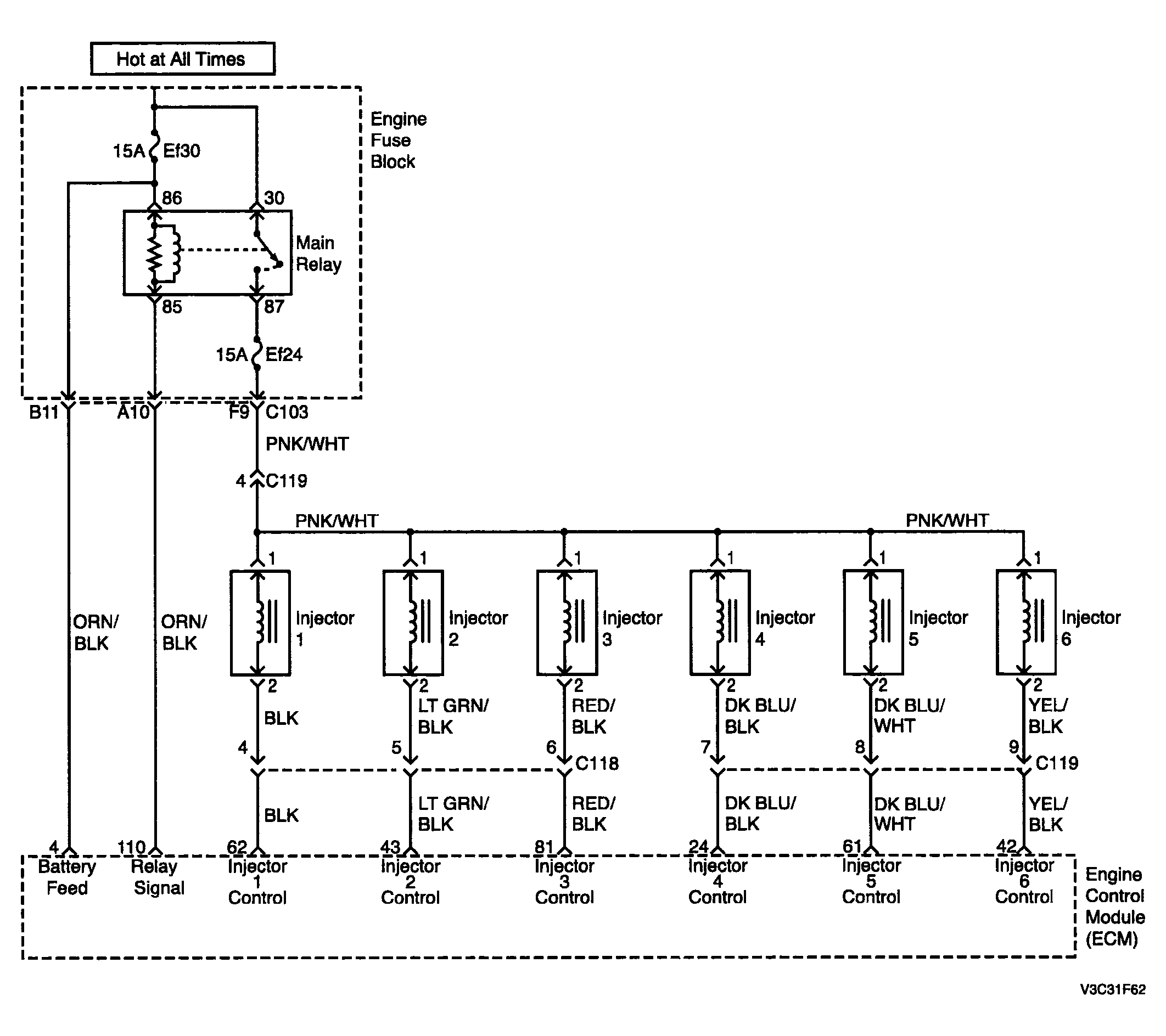

Fig 1: P0274 Injector 5 High Input - Circuit Diagram
G04094466Courtesy of SUZUKI OF AMERICA CORP.
