Front Stabilizer Bar and/or Bushings Components

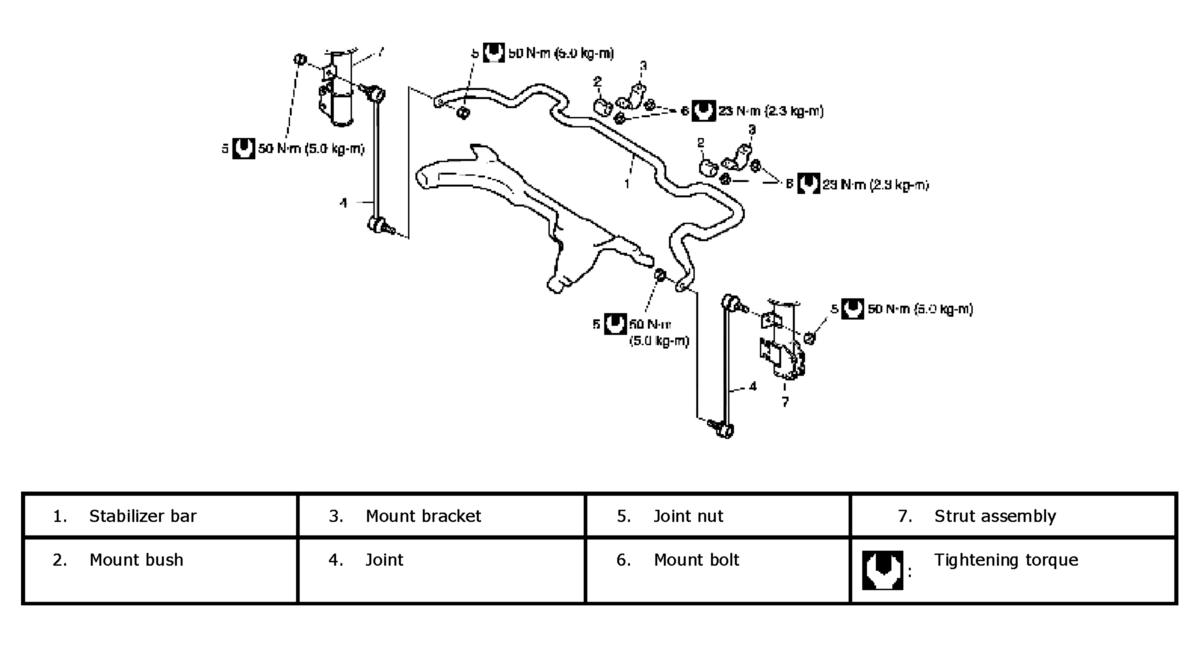

Fig 1: Front Stabilizer Bar And/Or Bushings Replacement Components & Torque Specification
G04590106Courtesy of SUZUKI OF AMERICA CORP.
