Transaxle Rear Cover Components

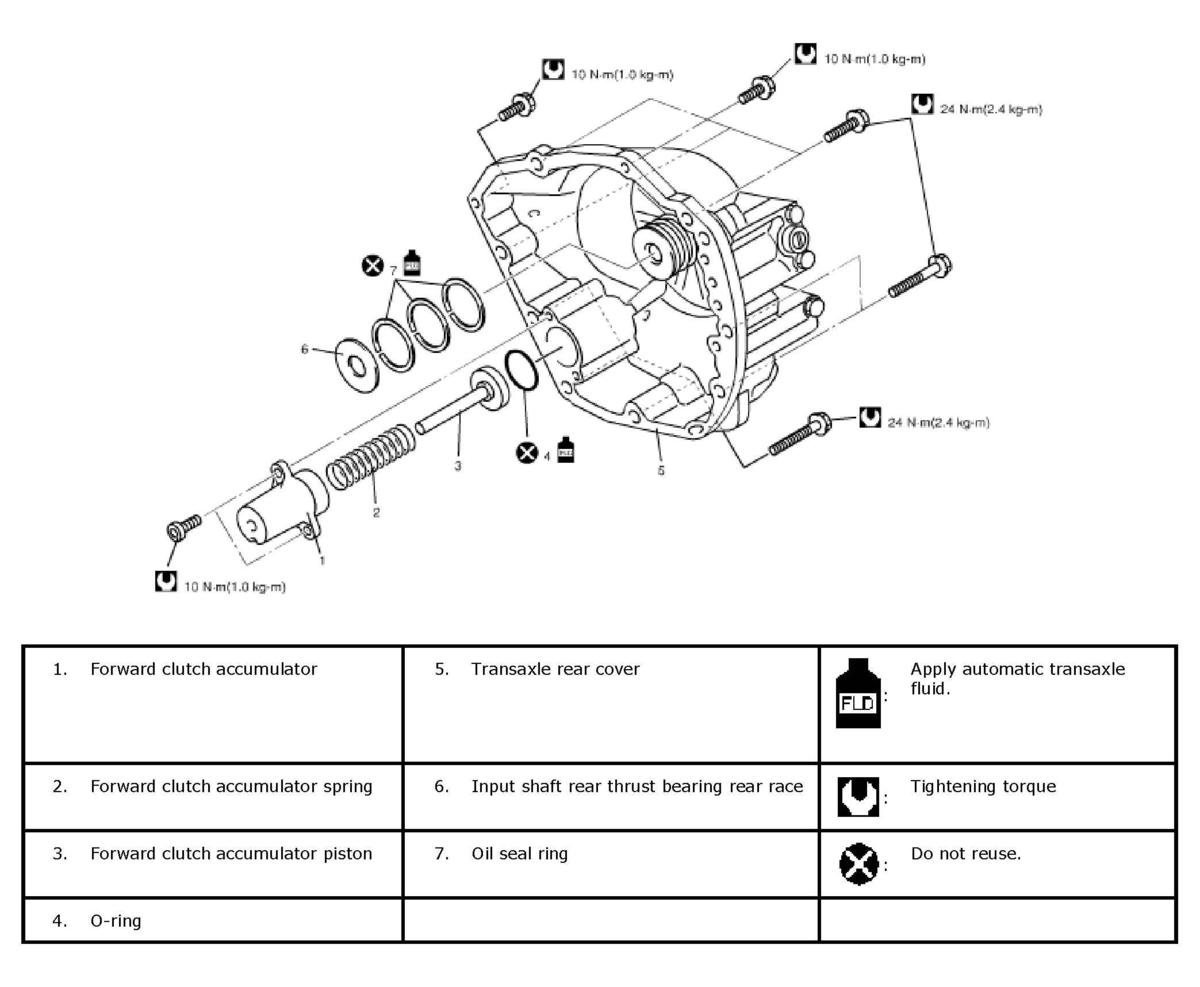

Fig 1: Identifying Transaxle Rear Cover Components With Tightening Torques
G04592066Courtesy of SUZUKI OF AMERICA CORP.
