Underdrive Gear Assembly Components

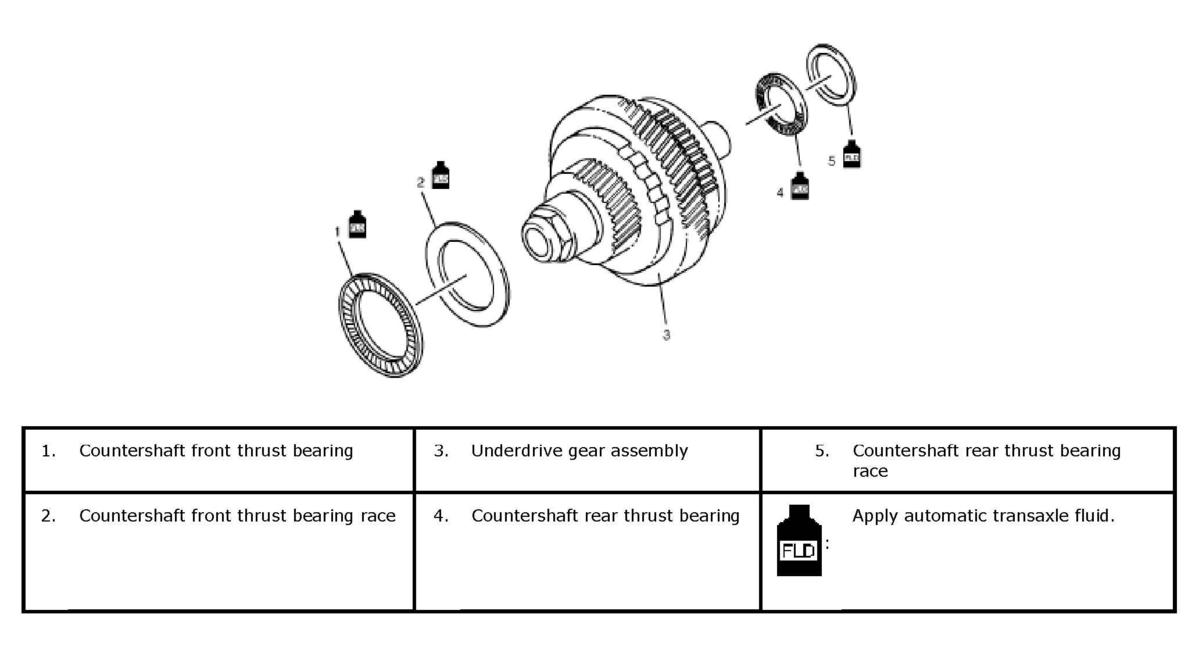

Fig 1: Identifying Underdrive Gear Assembly Components
G04592052Courtesy of SUZUKI OF AMERICA CORP.
