Cruise Control Servo: Testing and Inspection

Cruise Control Actuator Assembly with Control Module Inspection

Reference: Cruise Control Actuator Assembly with Control Module Removal and Installation

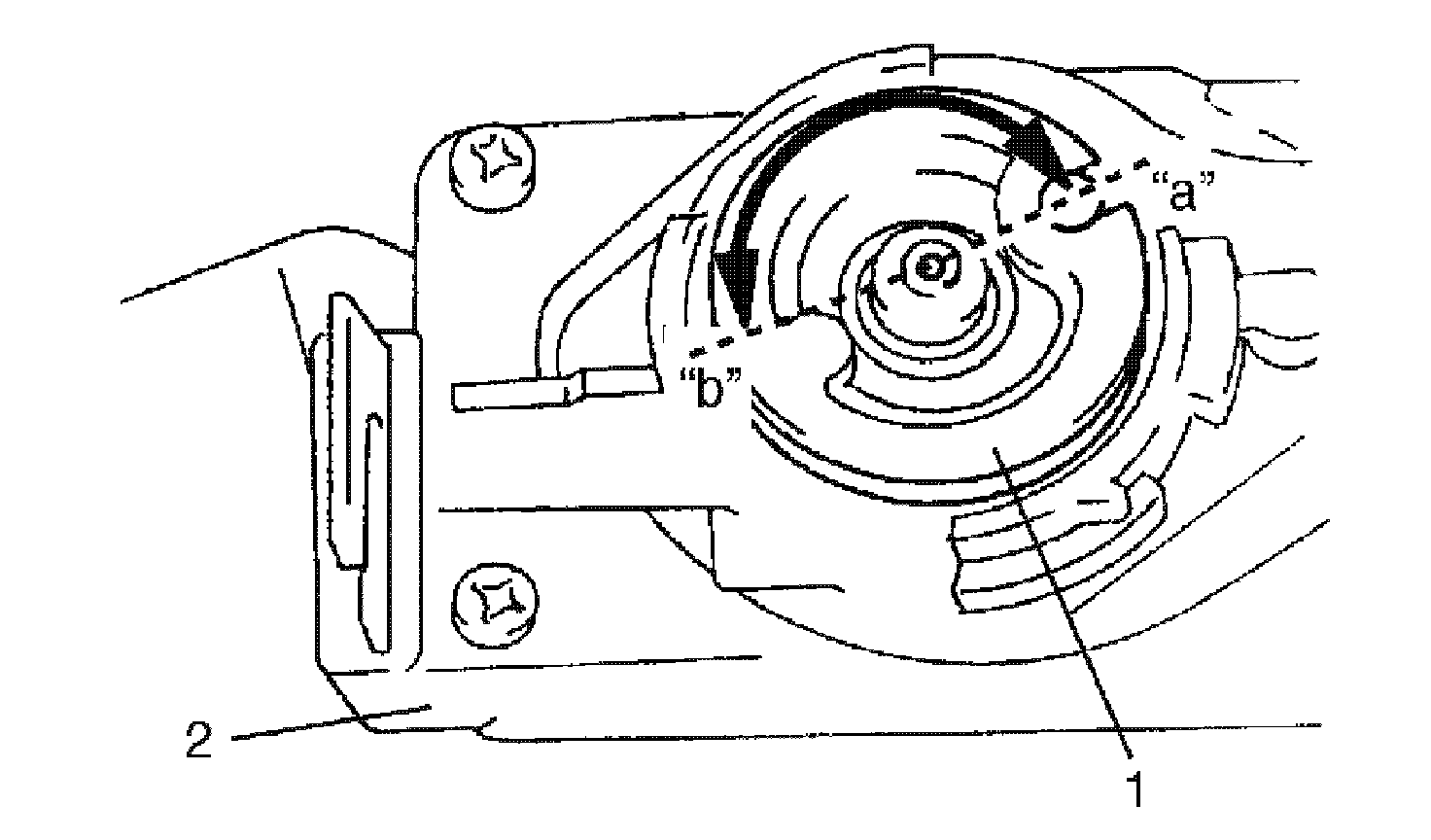

- Check actuator lever (1) does not turn clockwise from position "a".
- Check actuator lever (1) turns counterclockwise smoothly from position "a" to position "b" by about 1/2 rotation.
- Check actuator lever (1) returns from position "b" to position "a" by return spring force.
If any faulty condition is found in the check, replace actuator assembly (2).
