A/C Signal Circuits Check (Vehicle With A/C)

A/C Signal Circuits Check (Vehicle With A/C)

Wiring Diagram:

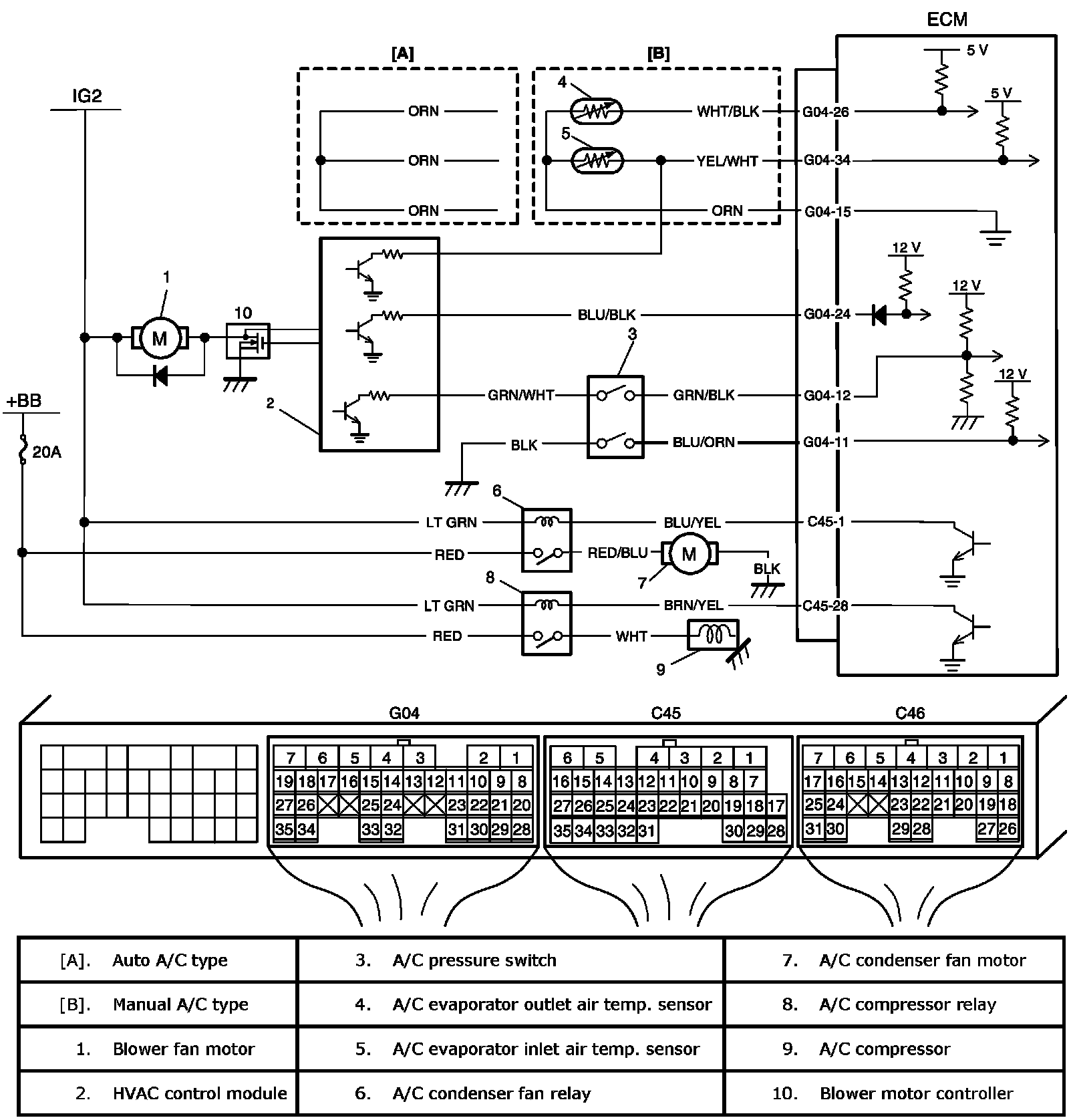

Wiring Diagram

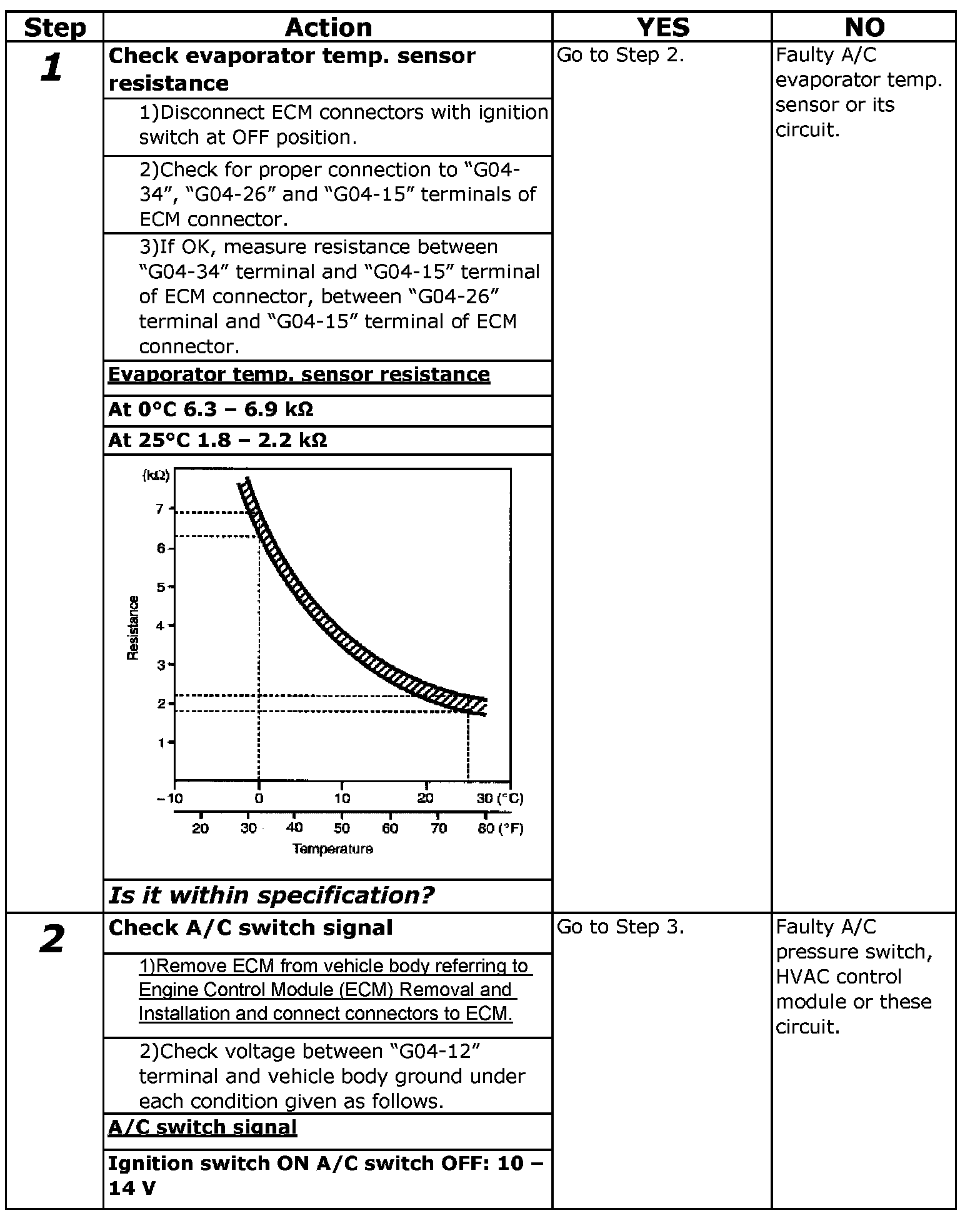

Step 1-2:

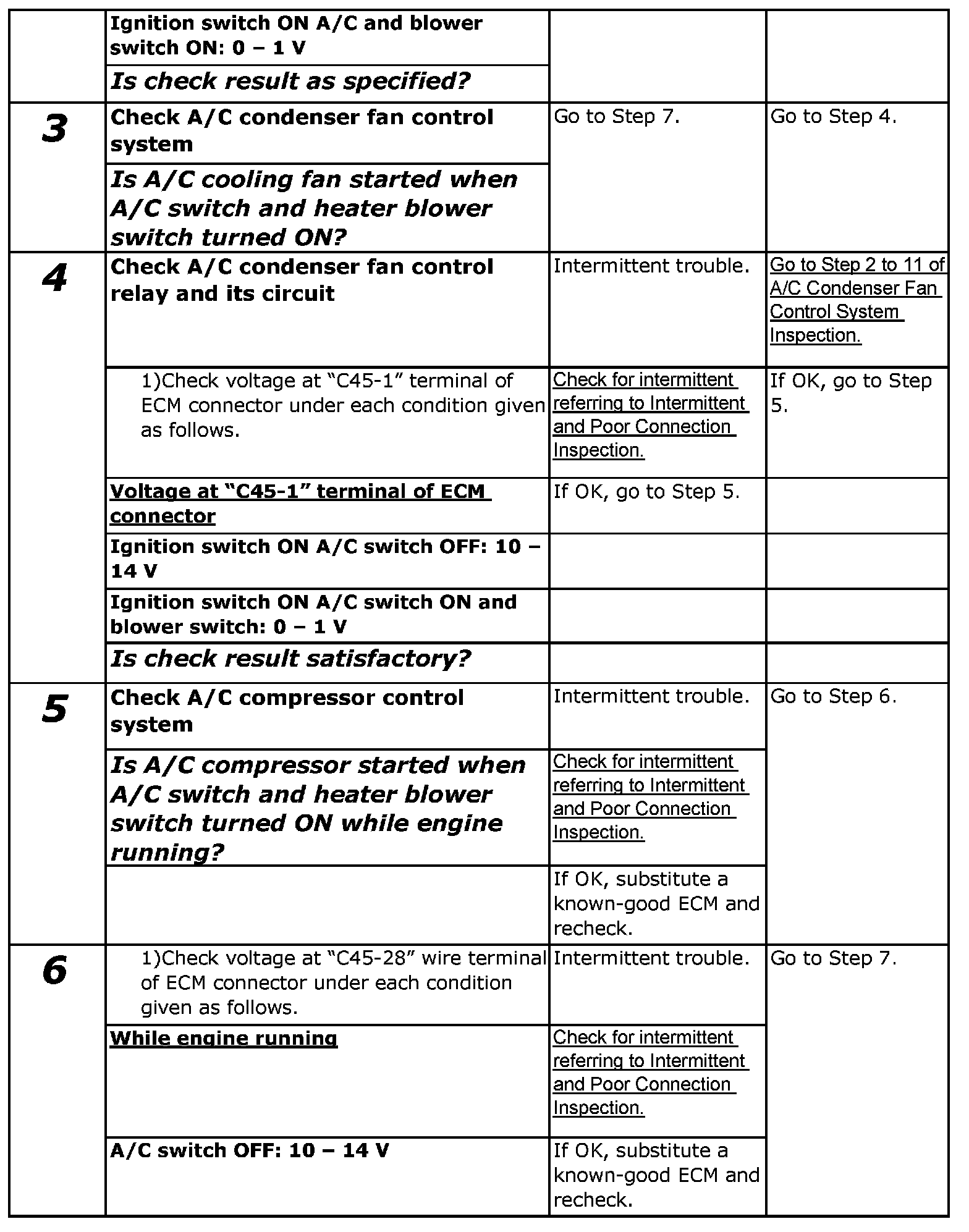

Step 2(Continued)-6:

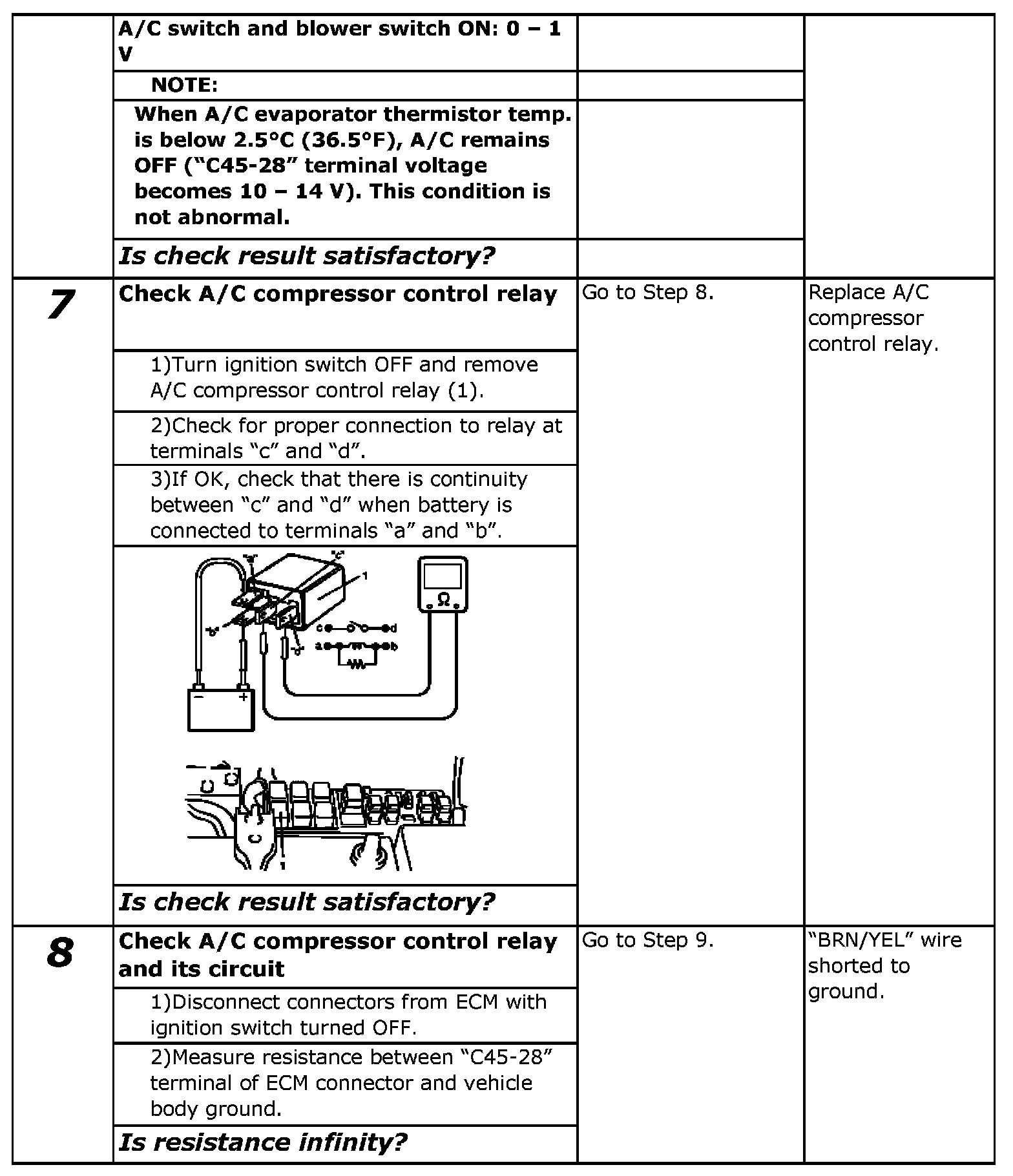

Step 6(Continued)-8:

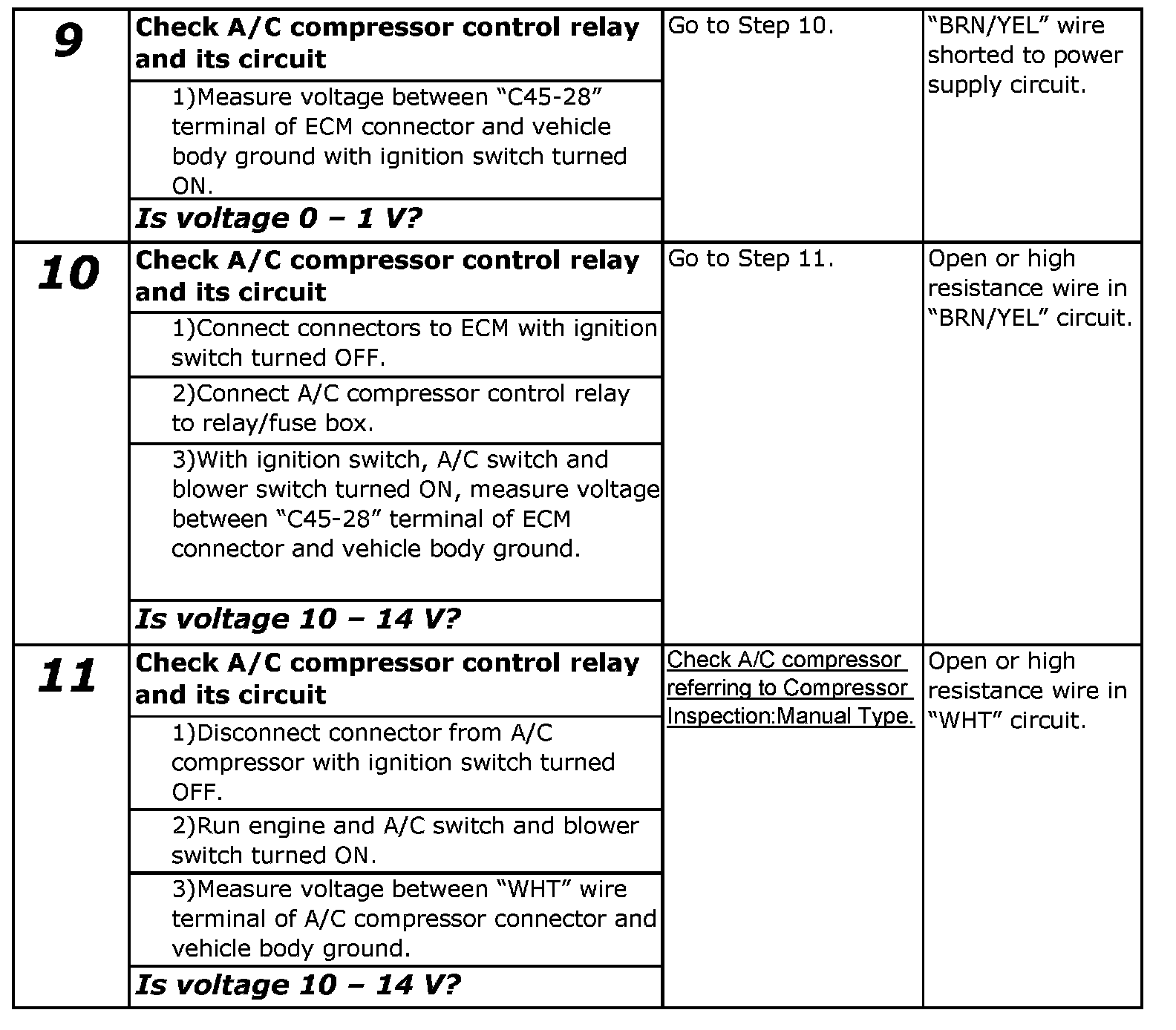

Step 9-11:




Troubleshooting
