Main Switch

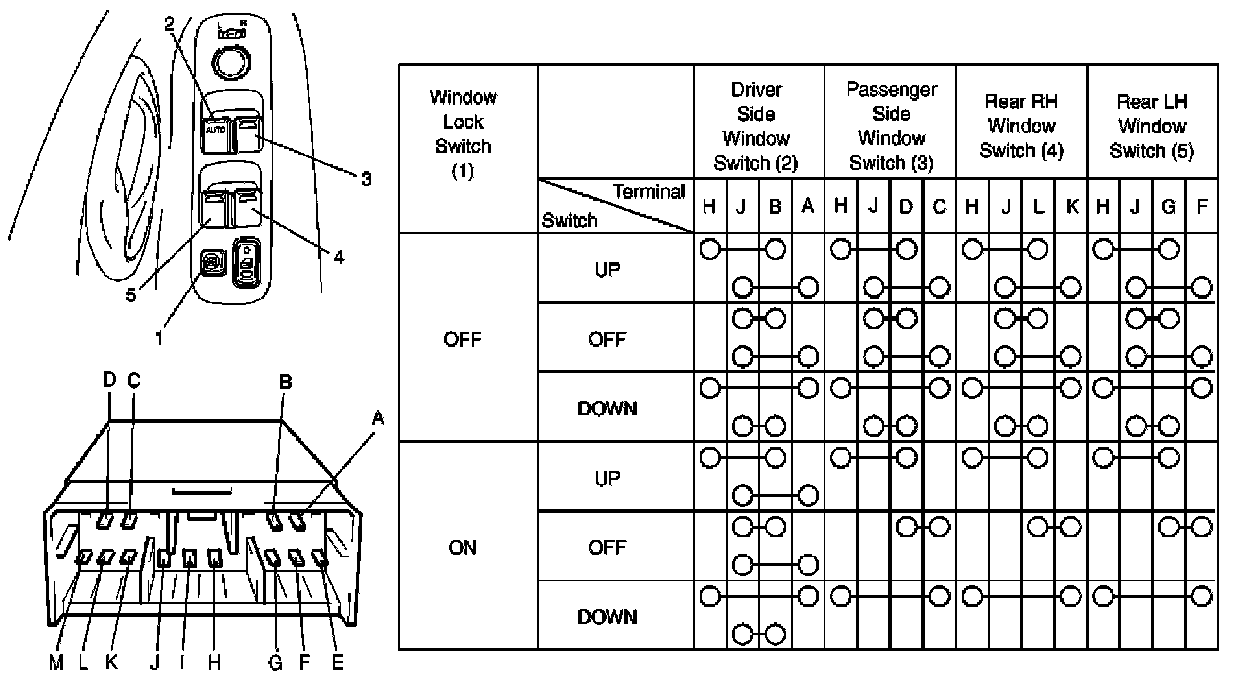

POWER WINDOW MAIN SWITCH INSPECTION




Check for continuity between terminals at each switch position. If check result is not as specified, replace switch.
