Sensor (Input Speed, Output Speed and Transmission Fluid Temp.), Cluster, DLC, ECM and Hold Mode Switch Circuit

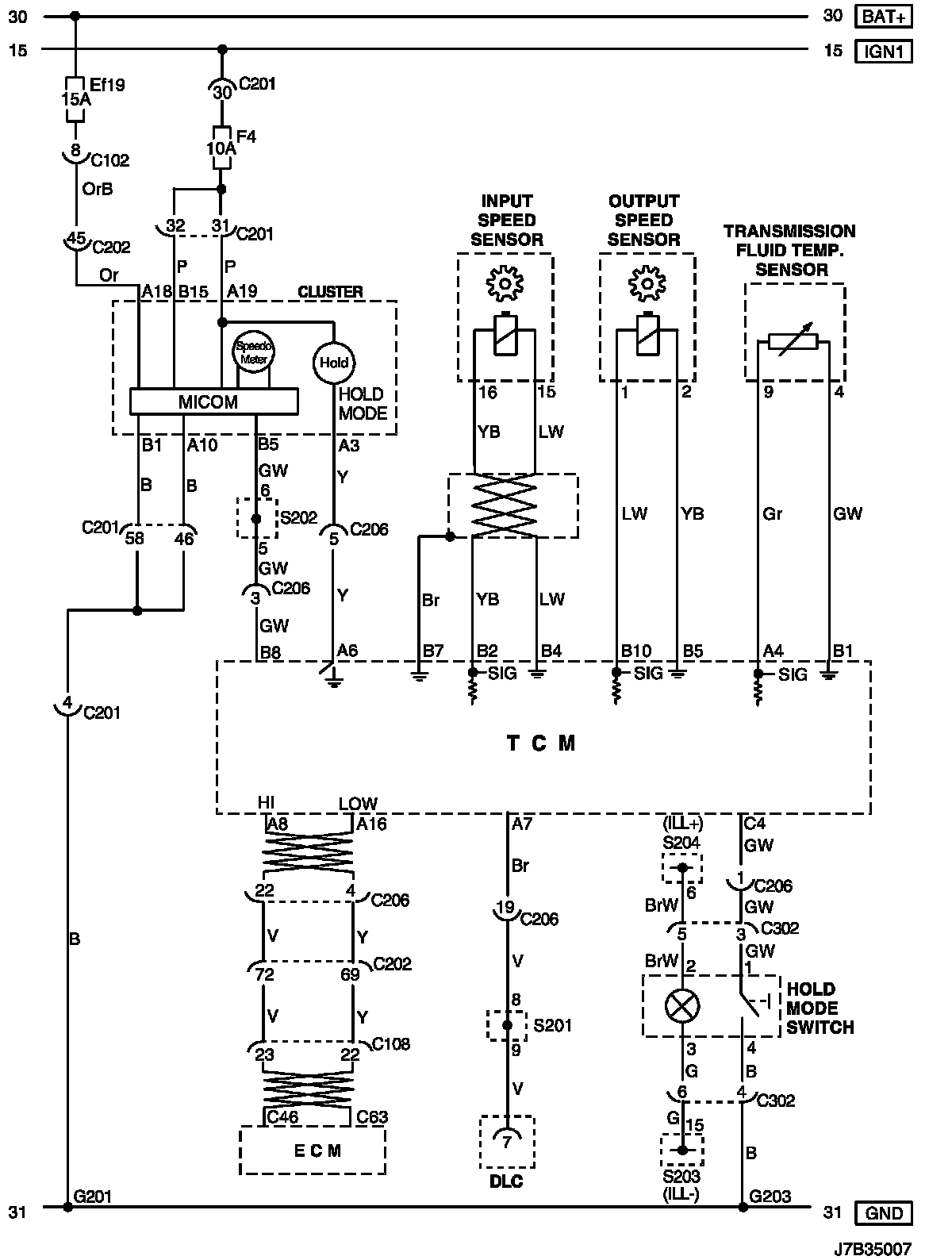

Sensor (Input Speed, Output Speed and Transmission Fluid Temp.), Cluster, DLC, ECM and Hold Mode Switch Circuit Wiring Diagram:
WIRING DIAGRAM
C102 - G203:
CONNECTOR INFORMATION

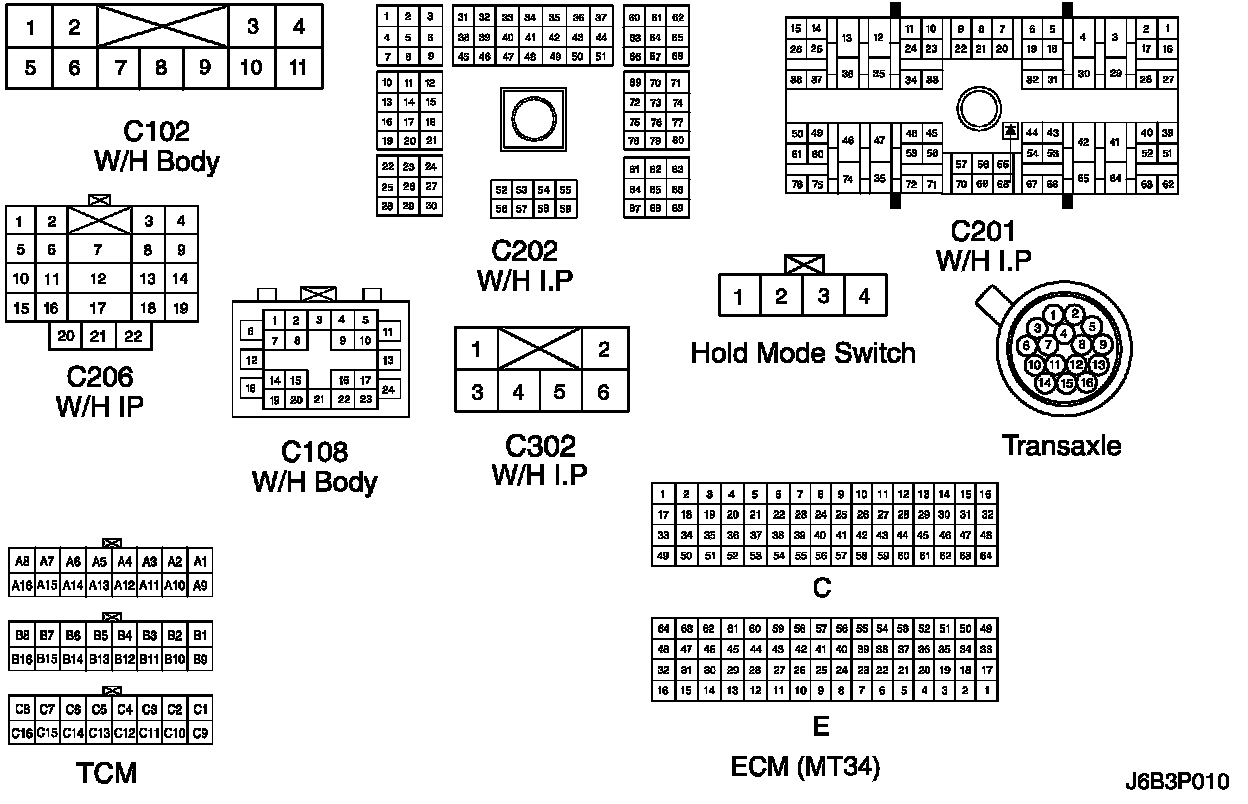

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION
W/H TCM:

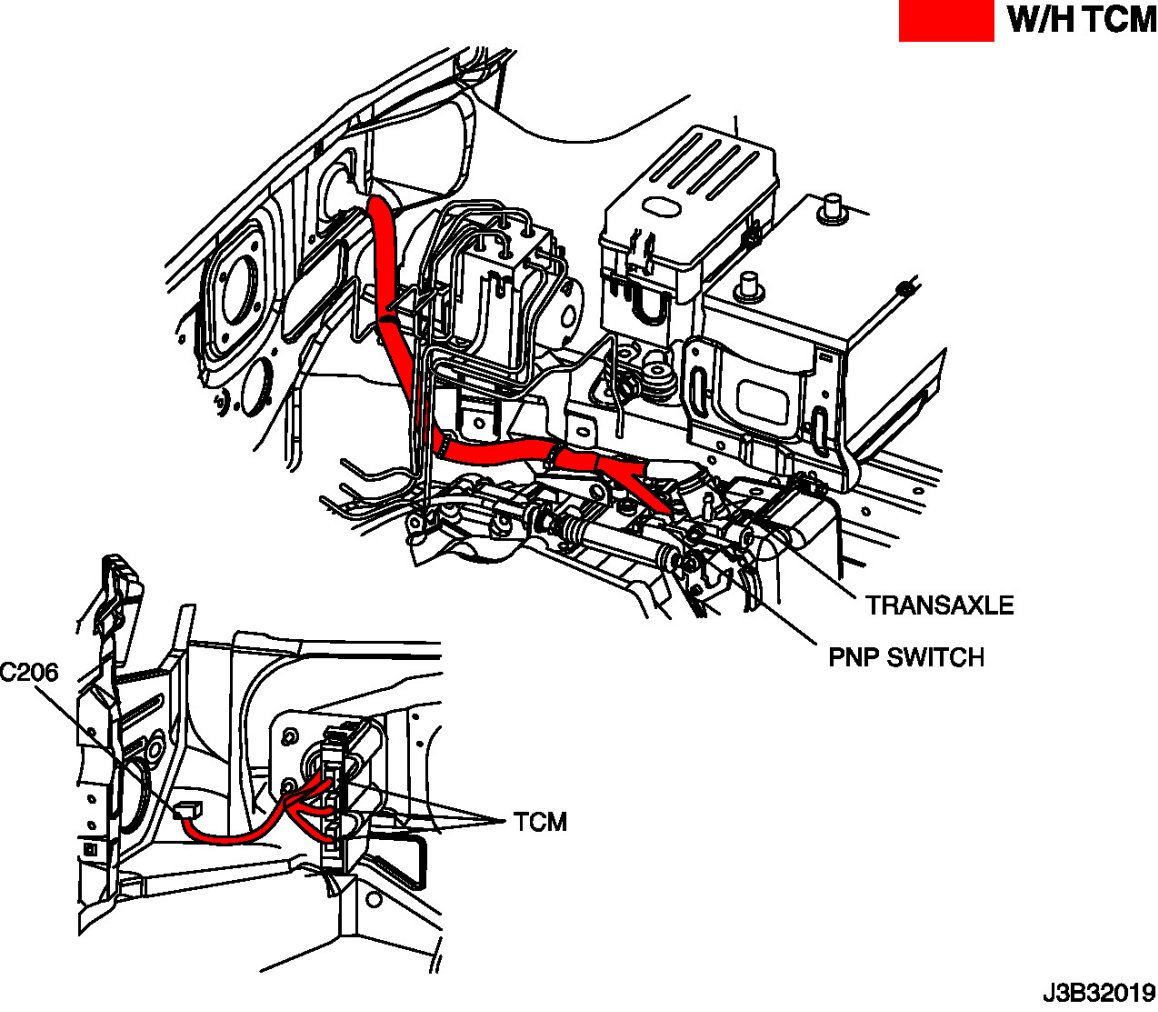

POSITION OF CONNECTORS AND GROUNDS
S201:
S202:
S203:
S204:
SPLICE PACK
