A/C System Circuits Check: Wiring Diagram

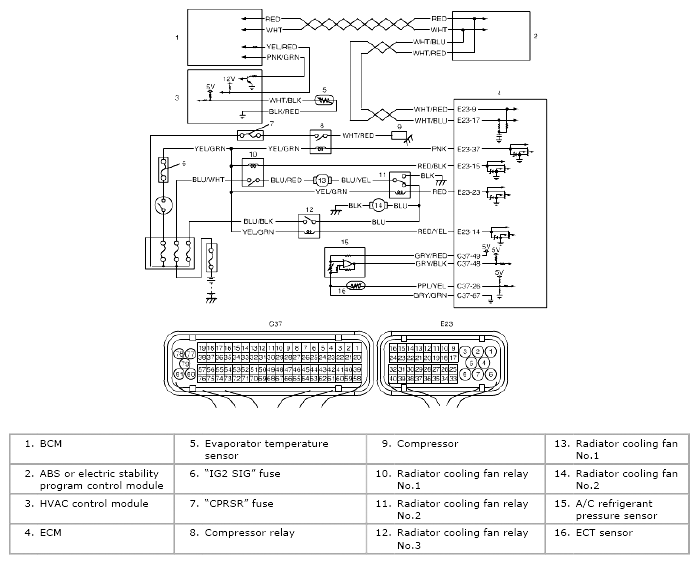

Fig 1: Identifying A/C System Wiring Diagram
G04824717Courtesy of SUZUKI OF AMERICA CORP.
