Tightening Torque Specifications
TIGHTENING TORQUE SPECIFICATIONS
| Fastening part |
Tightening torque |
| N.m |
kgf-m |
lb-ft |
| Fuel delivery pipe bolt |
25 |
2.5 |
18.0 |
| Fuel union bolt |
30 |
3.0 |
22.0 |
| Fuel pressure regulator bolt |
11 |
1.1 |
8.0 |
| Fuel filler hose clamp |
4 |
0.4 |
3.0 |
| Fuel tank bolt |
50 |
5.0 |
36.5 |
| Fuel pump assembly nut |
11 |
1.1 |
8.0 |
NOTE:

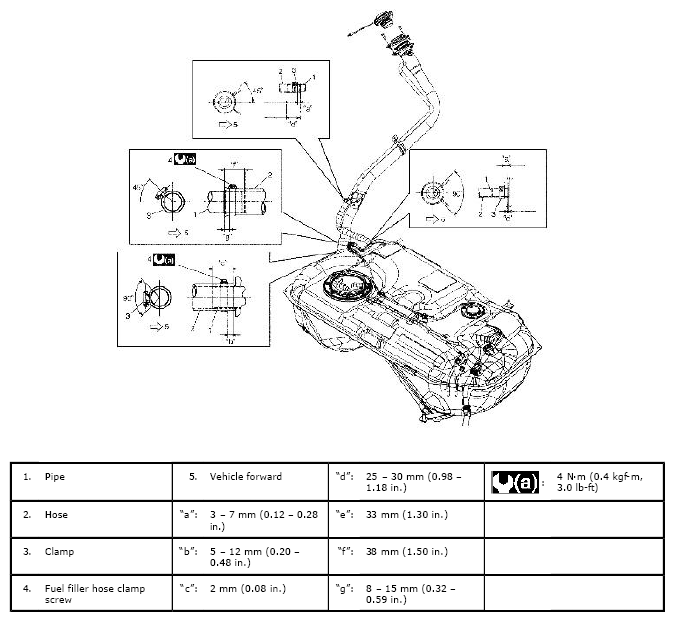

The specified tightening torque is also found in Figure & Figure
.
