Engine - Diagnostic Introduction
>>
Component Location
>>
Component Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Component Location

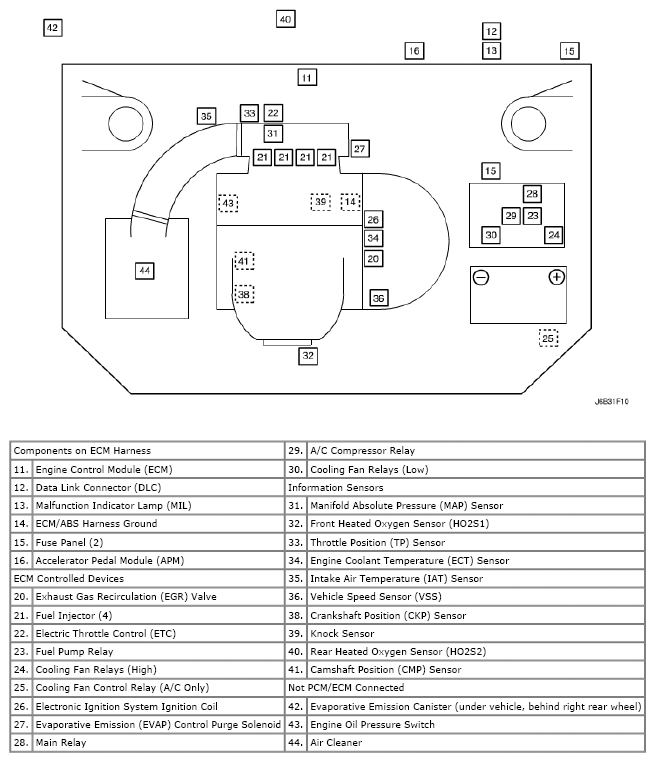

Fig 1: Identifying Engine System Components Location
Courtesy of SUZUKI OF AMERICA CORP.
