Keyless Entry Receiver: Service and Repair

KEYLESS ENTRY RECEIVER REMOVAL AND INSTALLATION (IF EQUIPPED)

Removal
1. Disconnect negative cable at battery.
2. Remove grove box or console box referring to Step 6) of Instrument Panel Removal and Installation or Console Box Components.
3. Disconnect keyless entry receiver coupler.

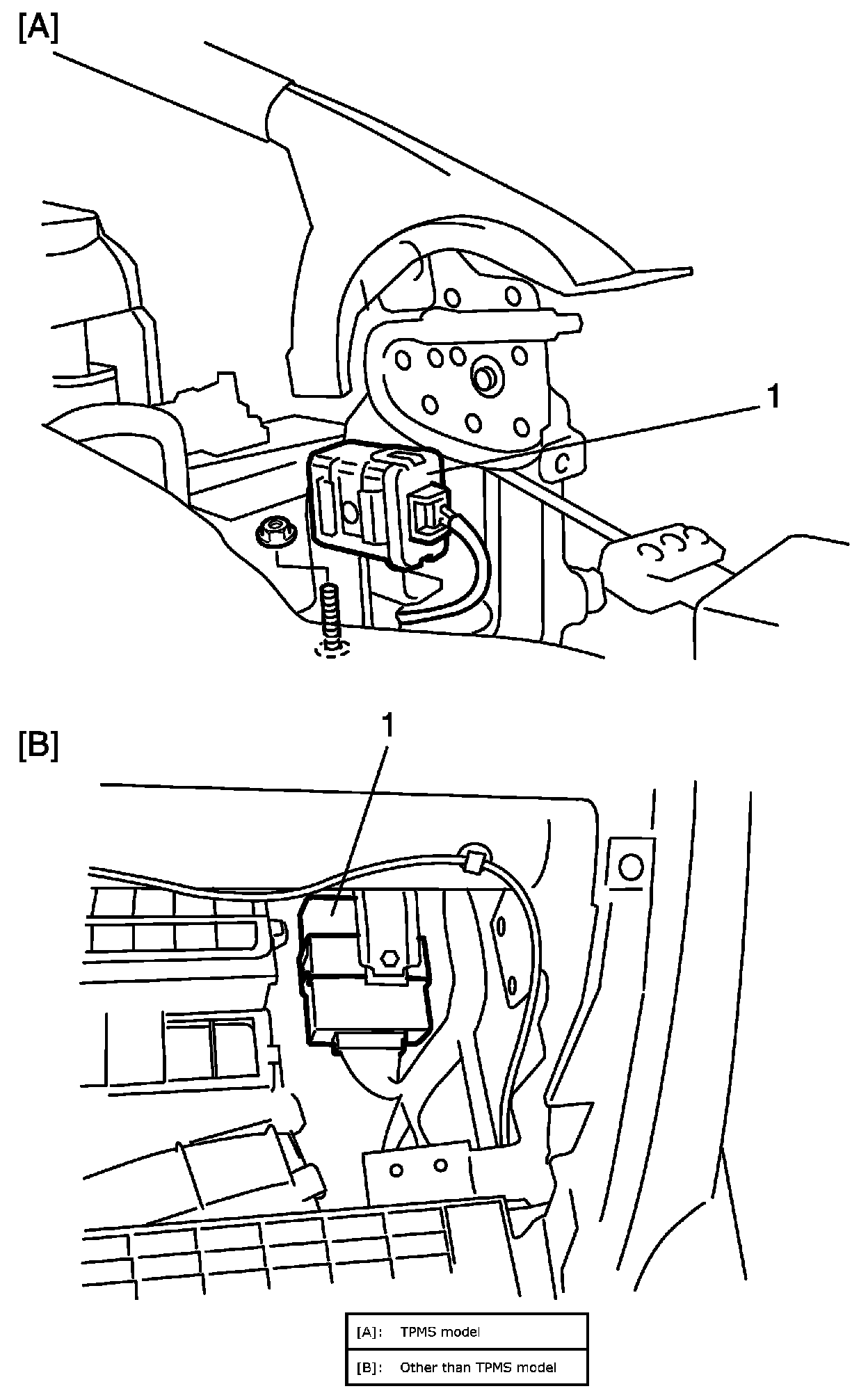

4. Remove keyless entry receiver (1).





Installation
Reverse removal procedure.
