Evaporator Temperature Sensor / Switch: Service and Repair

Evaporator Temperature Sensor Removal and Installation

Removal

1. Remove HVAC unit from vehicle body referring to HVAC Unit Removal and Installation:Manual Type.

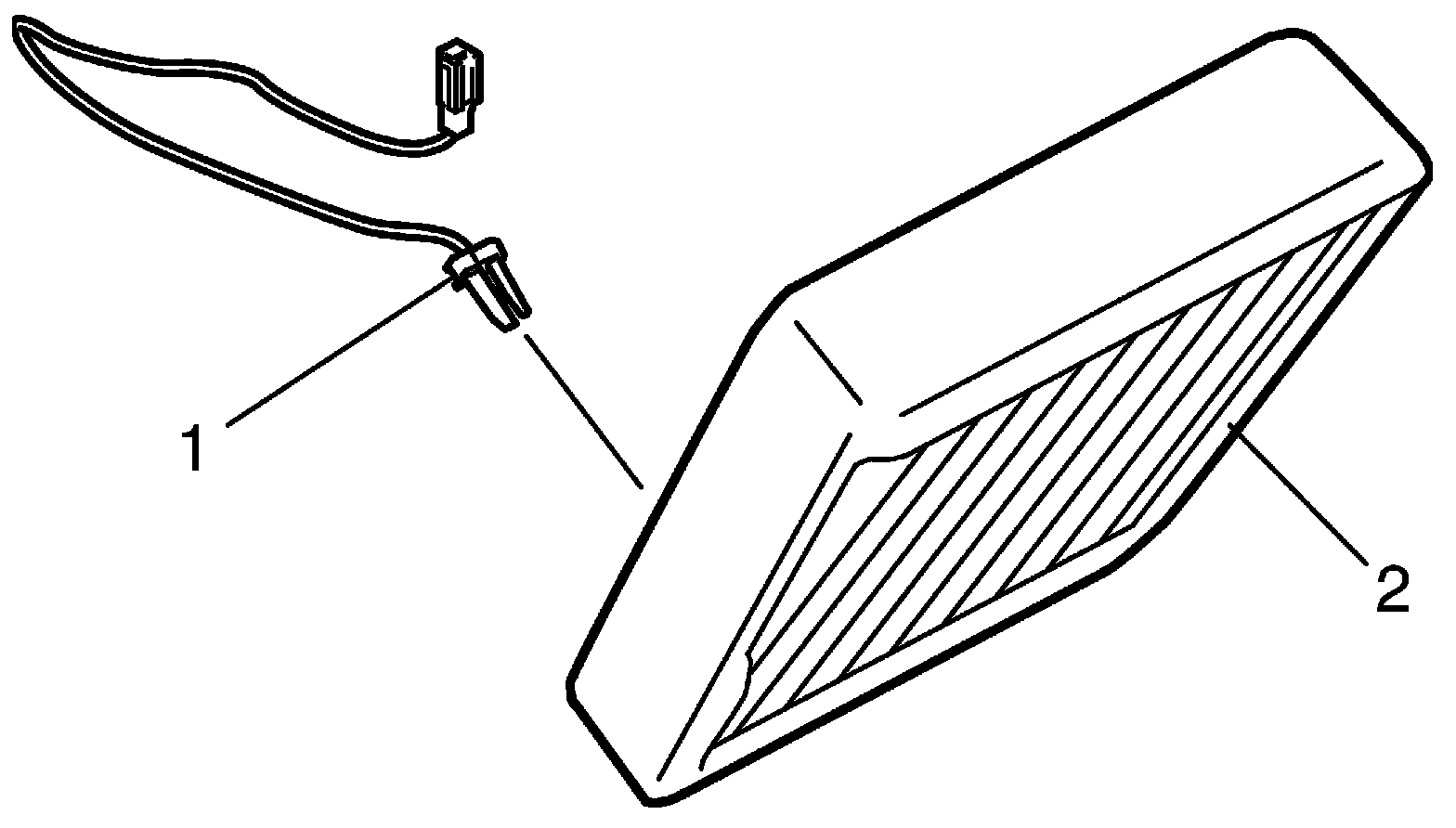

2. Remove evaporator temperature sensor (1) from evaporator by (2) disassembling HVAC unit.

Installation




Reference: Evaporator Temperature Sensor Inspection:Manual Type Reverse the removal procedure noting the following instruction.

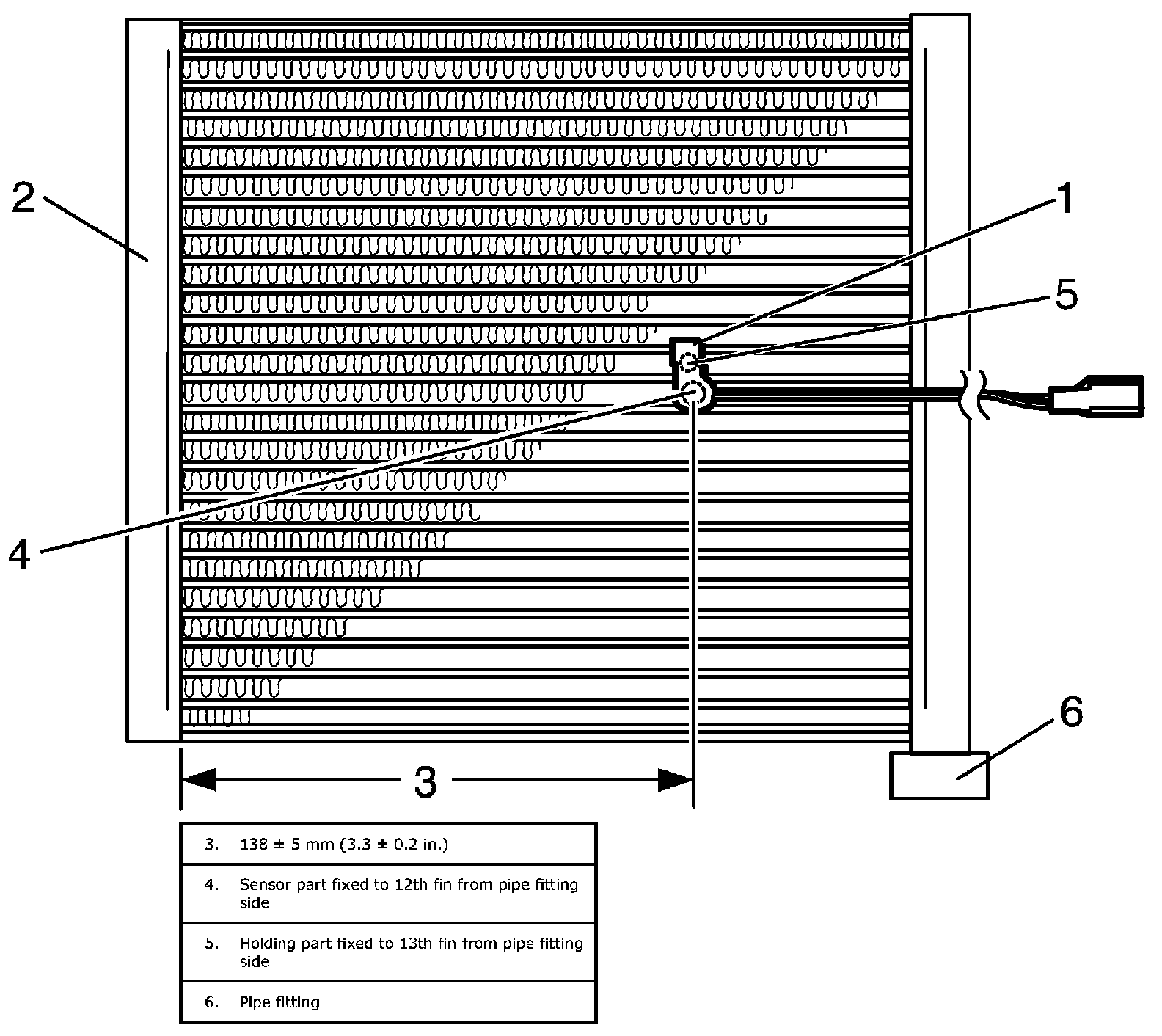

^ Install evaporator temperature sensor (1) onto evaporator (2) as shown.
