Engine Basic Inspection

Engine Basic Inspection

This check is very important for troubleshooting when ECM has detected no DTC and no abnormality has been found in Visual Inspection. Follow the flow carefully.

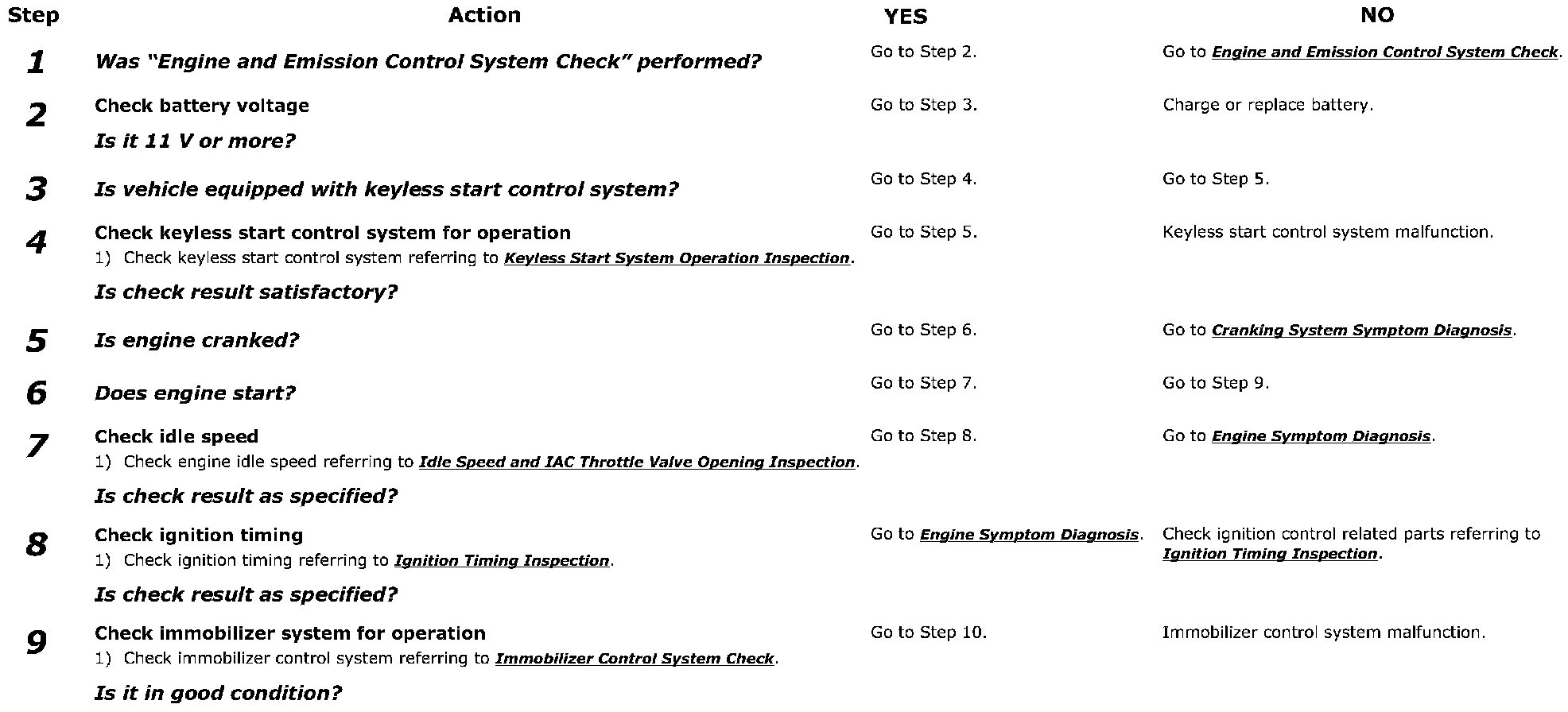

Step 1-9:

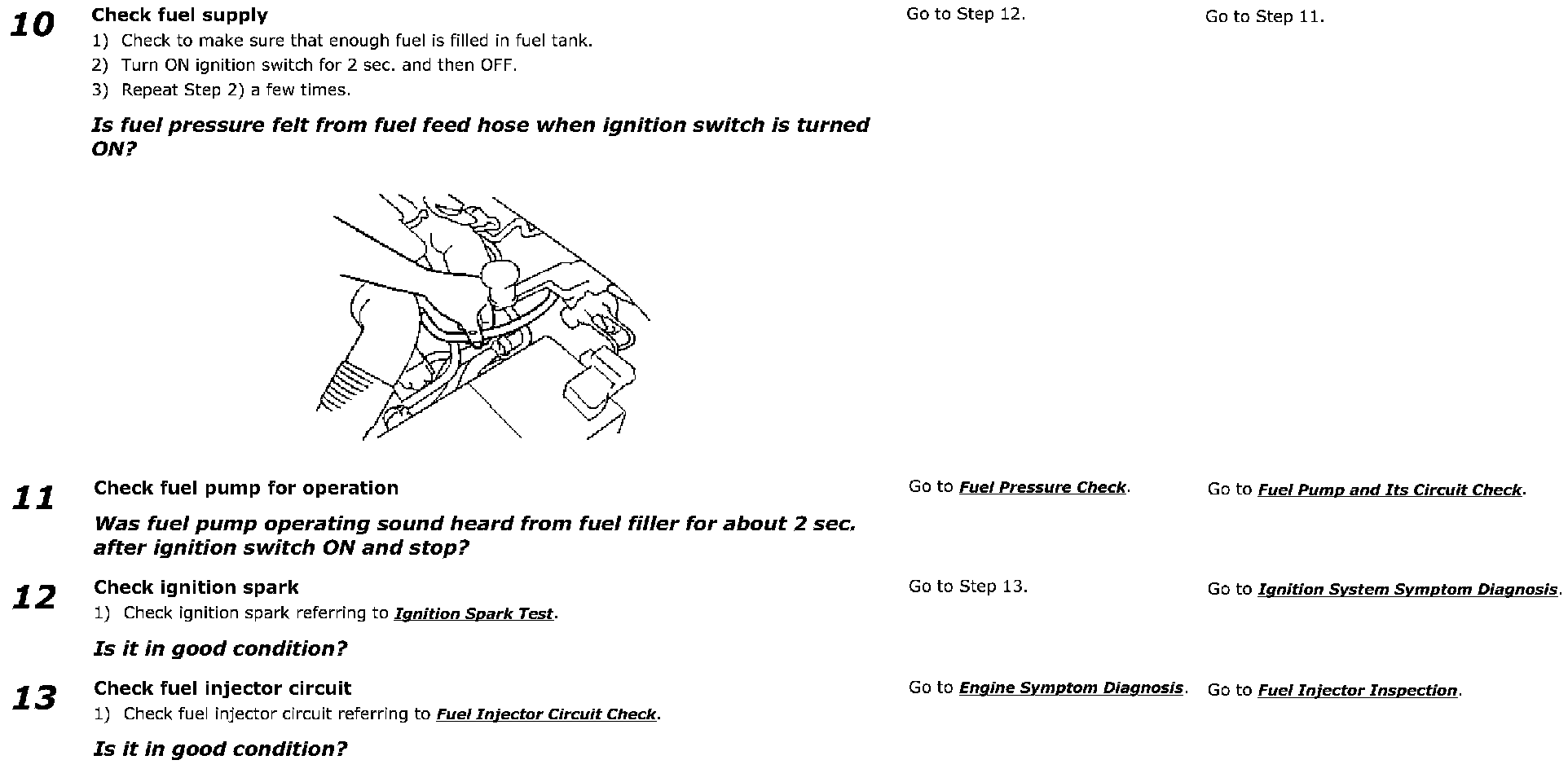

Step 10-13:
