Crankshaft Position Sensor: Service and Repair

Crankshaft Position (CKP) Sensor Removal and Installation

Removal

1. Remove transmission assembly from vehicle referring to Automatic Transaxle Unit Dismounting and Remounting or Manual Transaxle Assembly Disassembly and Reassembly.
2. Remove drive plate or flywheel from crankshaft.
3. Disconnect connector from crankshaft position sensor.

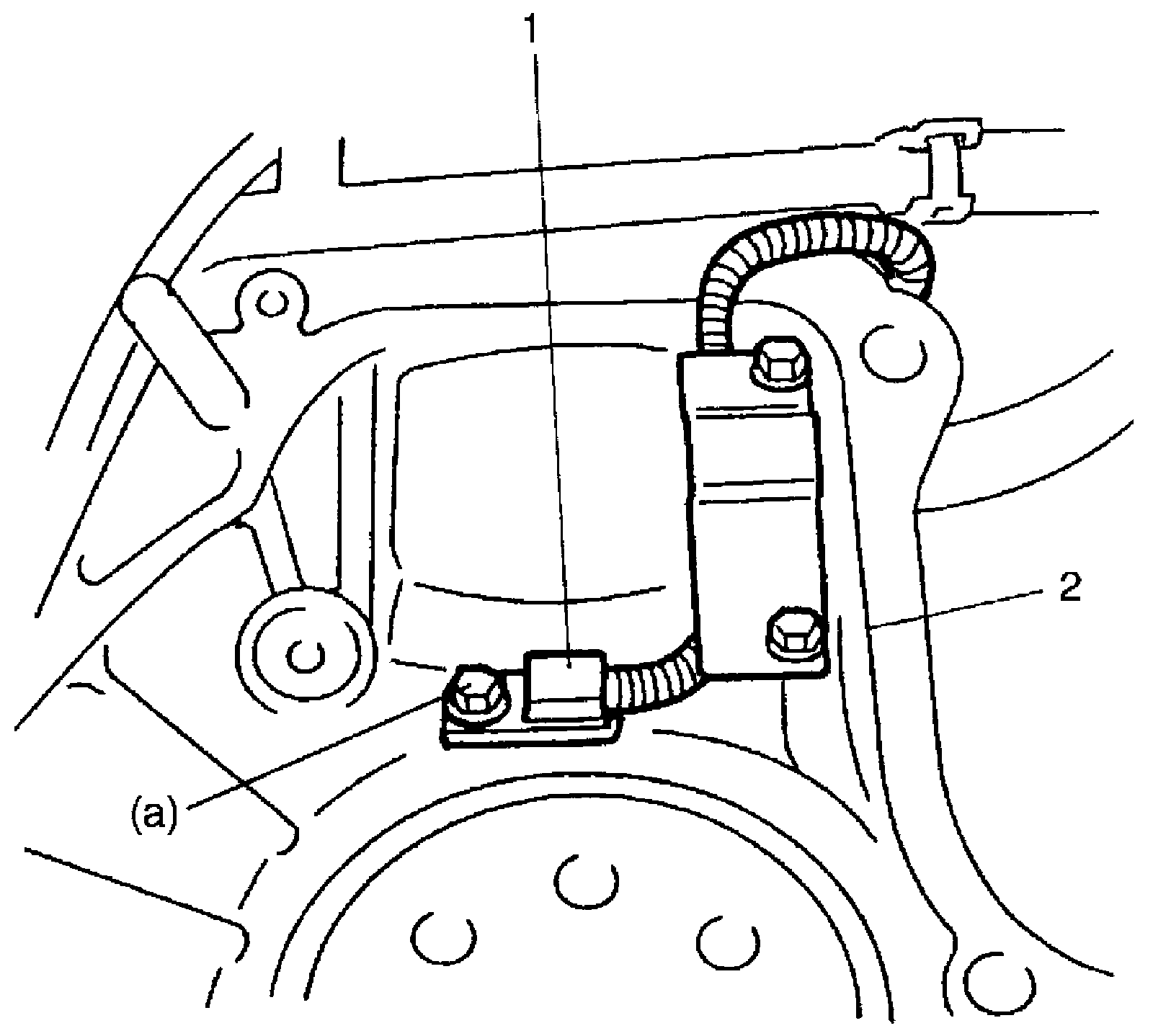

4. Remove CKP sensor (1) from cylinder block (2).

Installation

Reverse removal procedure noting the following.
^ Apply engine oil to O-ring of sensor.
^ Tighten CKP sensor bolt to specified torque.




Tightening torque
CKP sensor bolt a: 11 Nm (1.1 kg.m, 8.0 ft. lbs.)

^ Connect connector and fix wire harness with clamp securely.
