Ignition Switch: Testing and Inspection

IGNITION SWITCH INSPECTION

Reference: Ignition Switch Removal and Installation

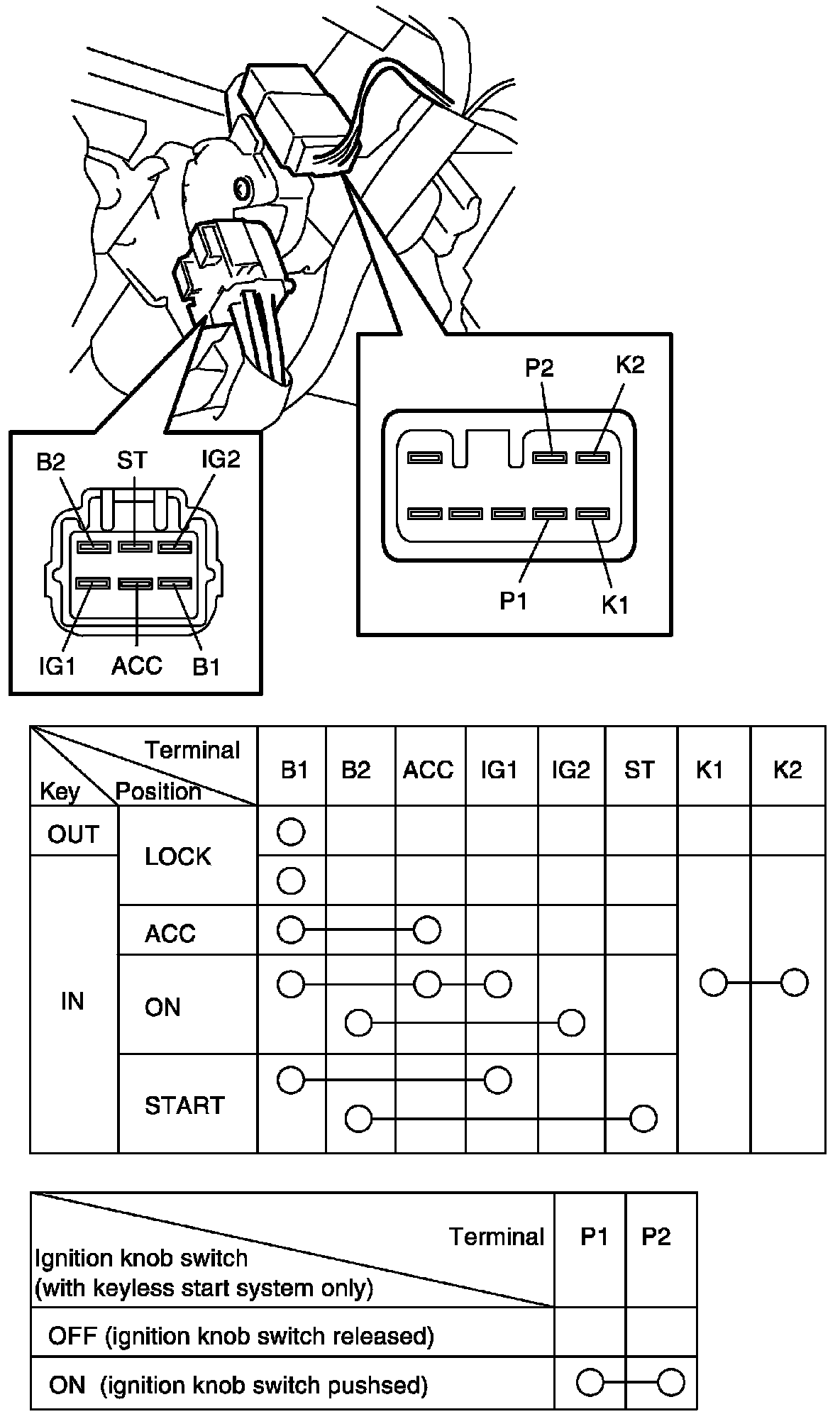

^ Check for continuity between terminals at each switch position. If check result is not as specified, replace switch.
