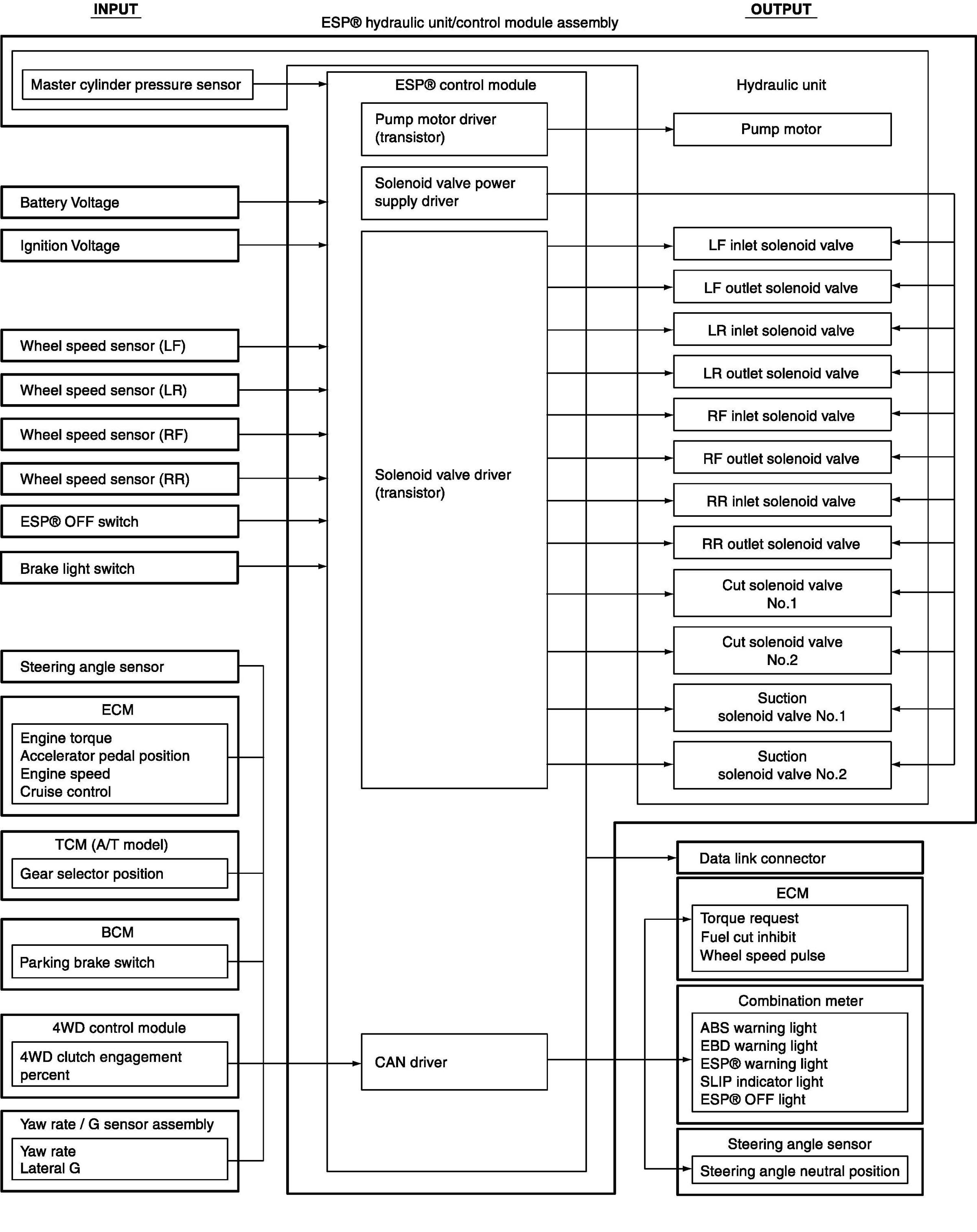

Electronic Stability Program Schematic

Electronic Stability Program Schematic

ESP(R) hydraulic unit/control module assembly
