Transaxle Rear Cover Components

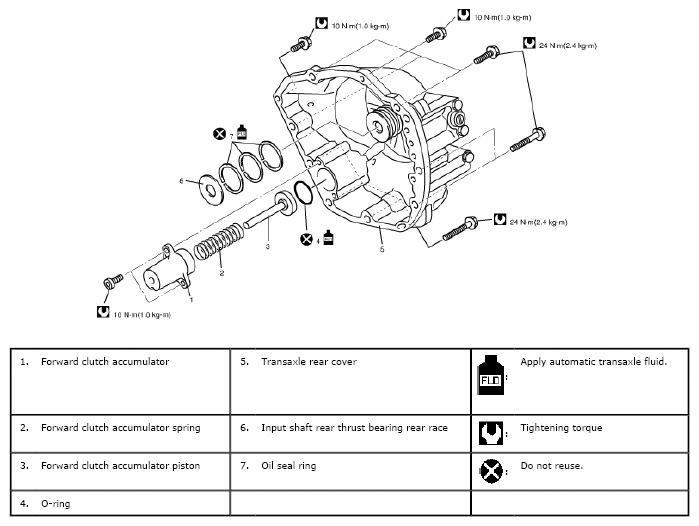

Fig 1: Exploded View Of Transaxle Rear Cover Components (With Torque Specifications)
G04847960Courtesy of SUZUKI OF AMERICA CORP.
