EVAP System Components

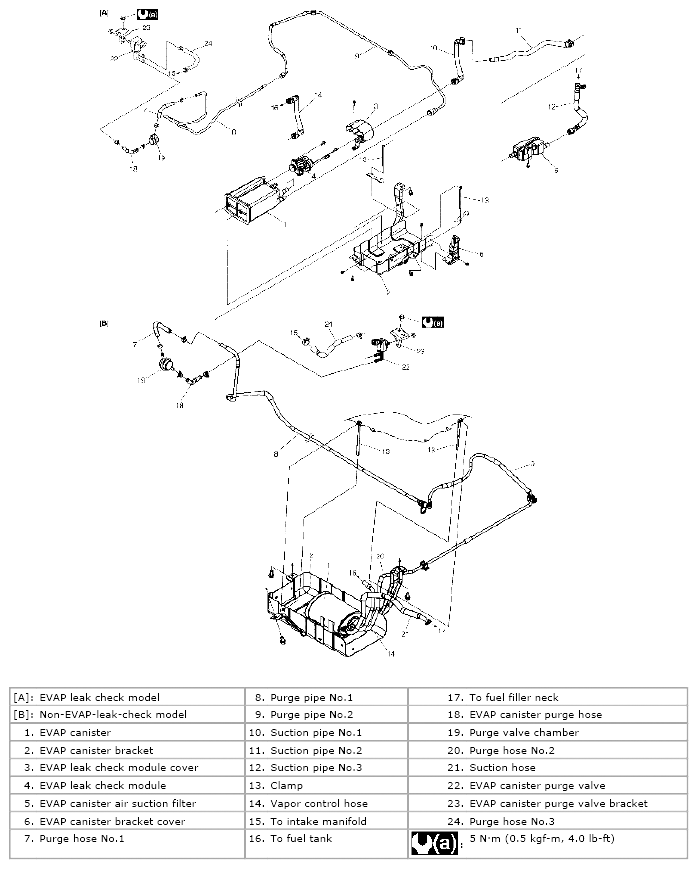

Fig 1: Identifying EVAP System Components And Tightening Torques
G04846670Courtesy of SUZUKI OF AMERICA CORP.
