Home >> Suzuki >> 2007 >> XL-7 2WD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Disassembled Views >> Torque Converter Housing Assembly
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

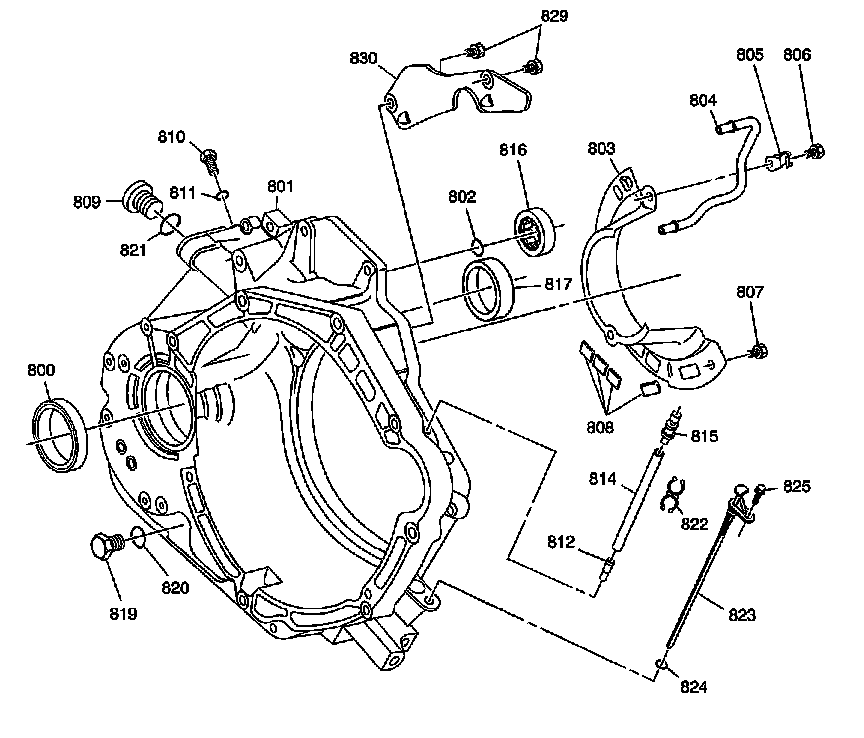

Torque Converter Housing Assembly
