Engine - Starting System

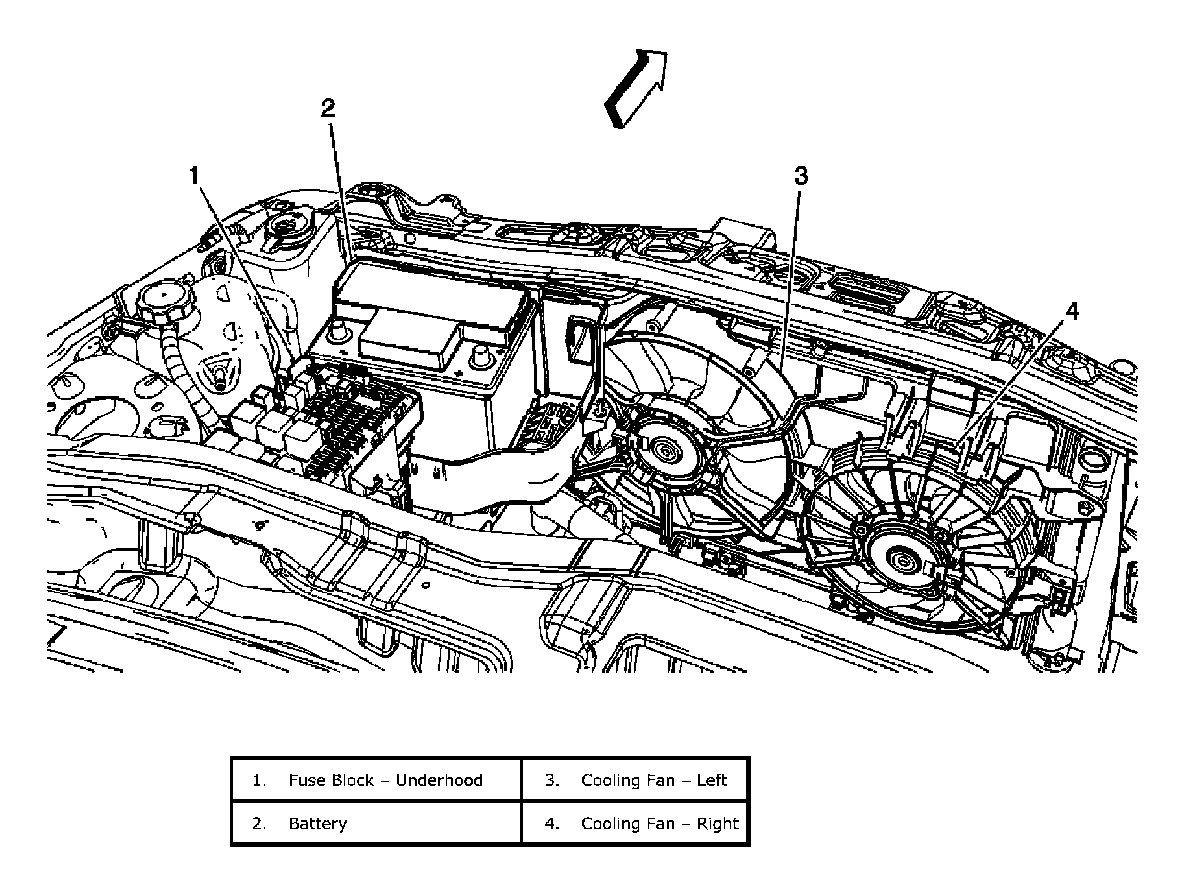

Engine Electrical Component Views - Front of the Engine Compartment:

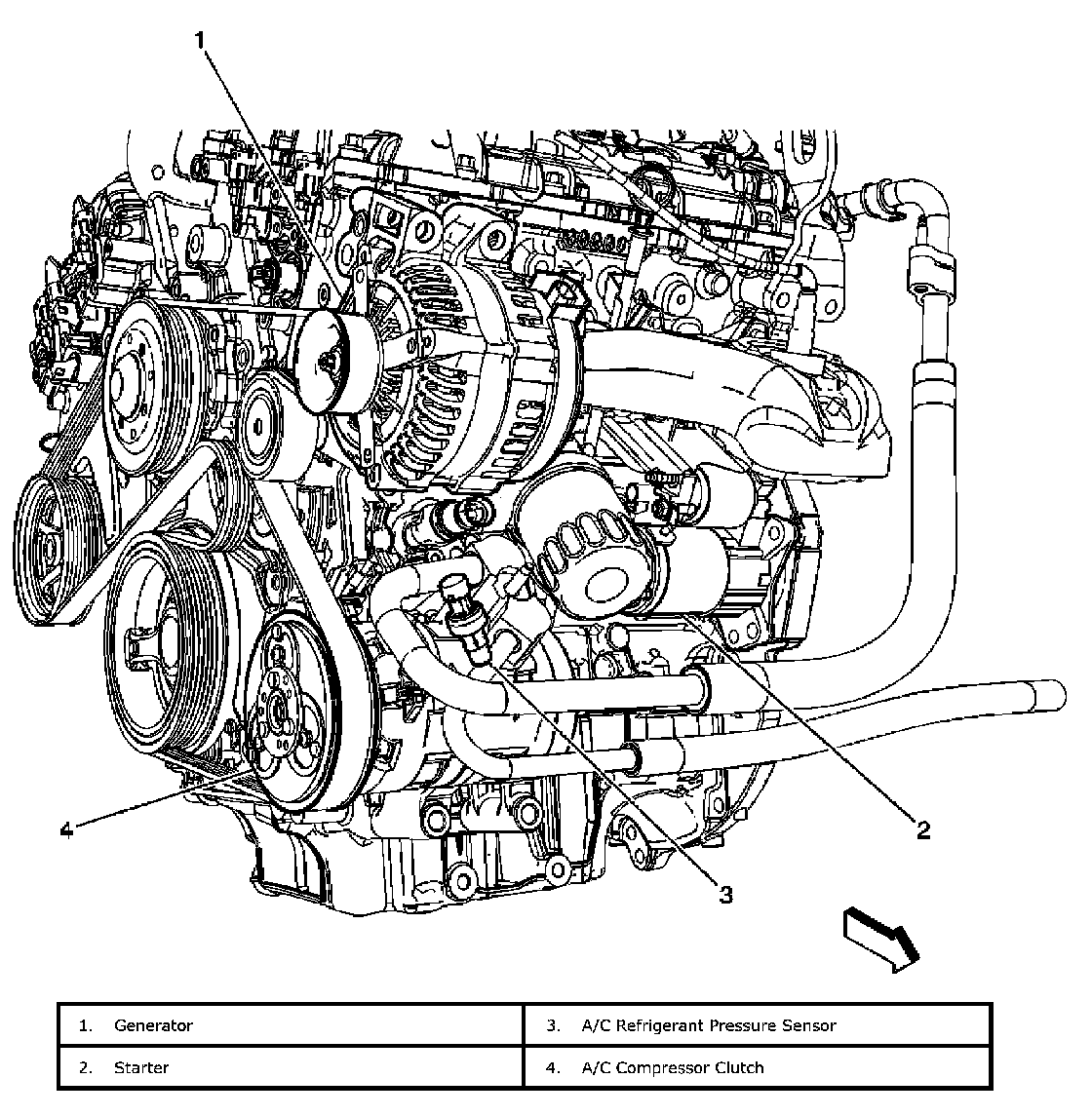

Engine Electrical Component Views - Bottom Front of the Engine:

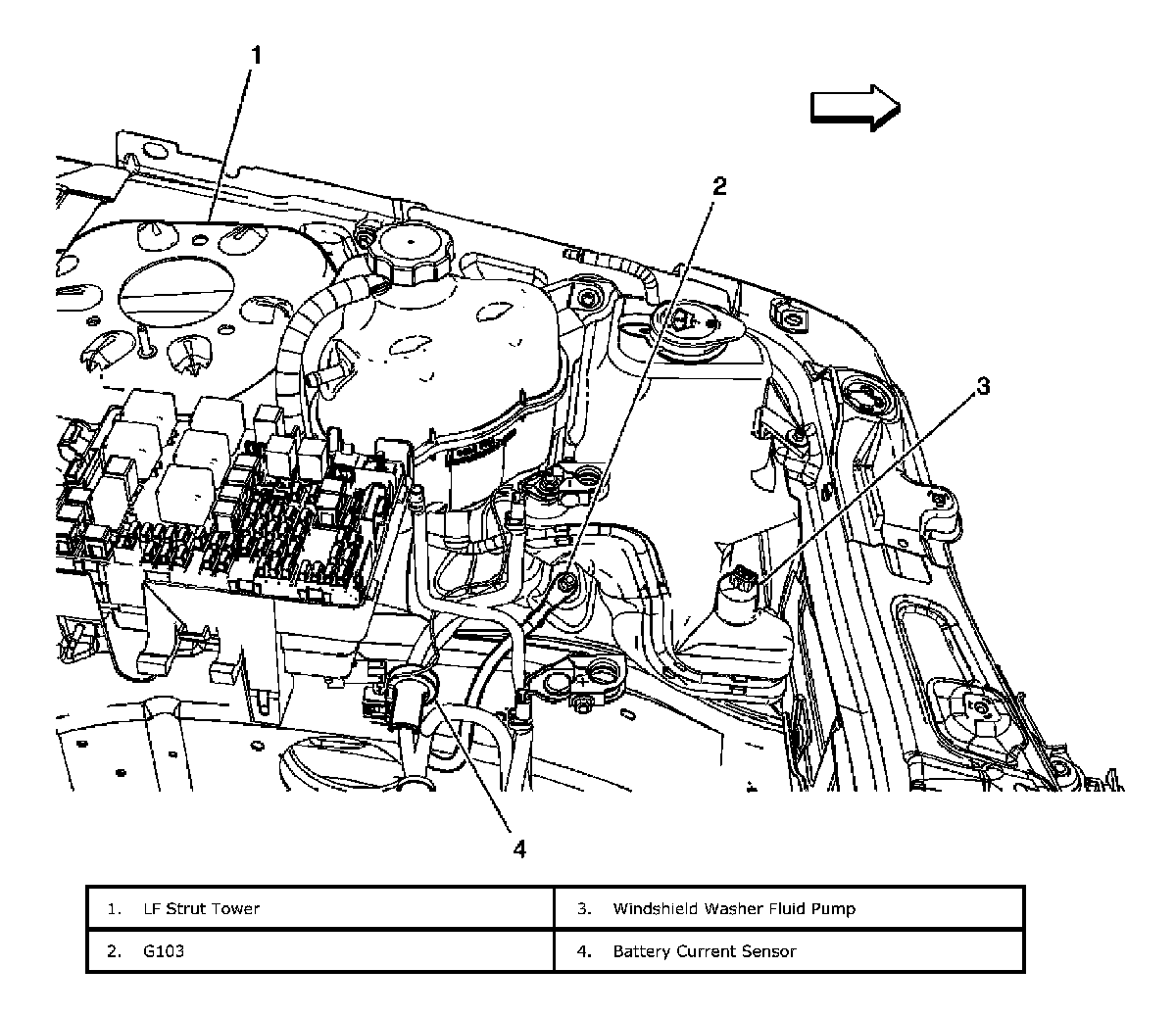

Engine Electrical Component Views - LF of the Engine Compartment:
