Electronic Control System Wiring Circuit Diagram

NOTE:

Also see ENGINE PERFORMANCE wiring diagrams in SYSTEM WIRING DIAGRAMS.

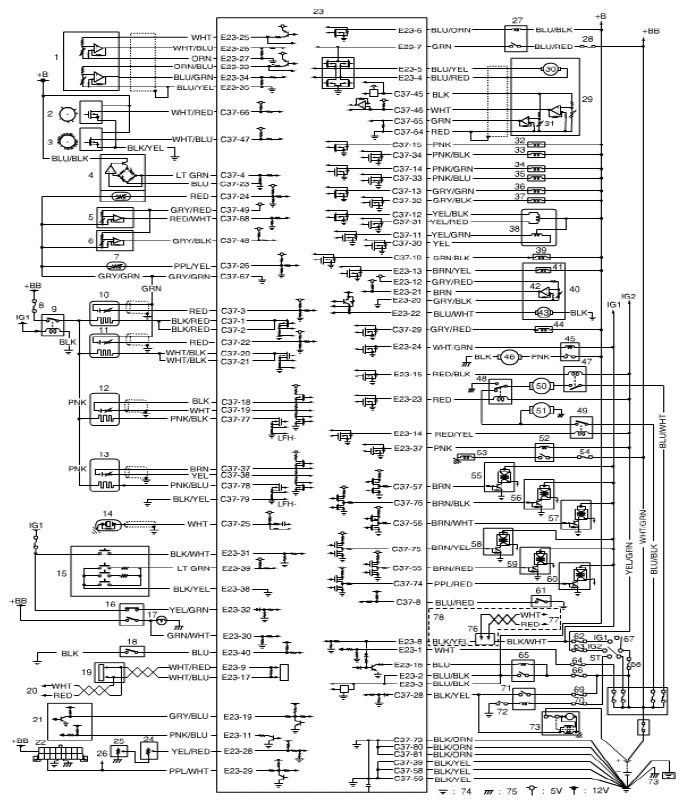

Fig 1: Electronic Control System Wiring Circuit Diagram
G05472683Courtesy of SUZUKI OF AMERICA CORP.

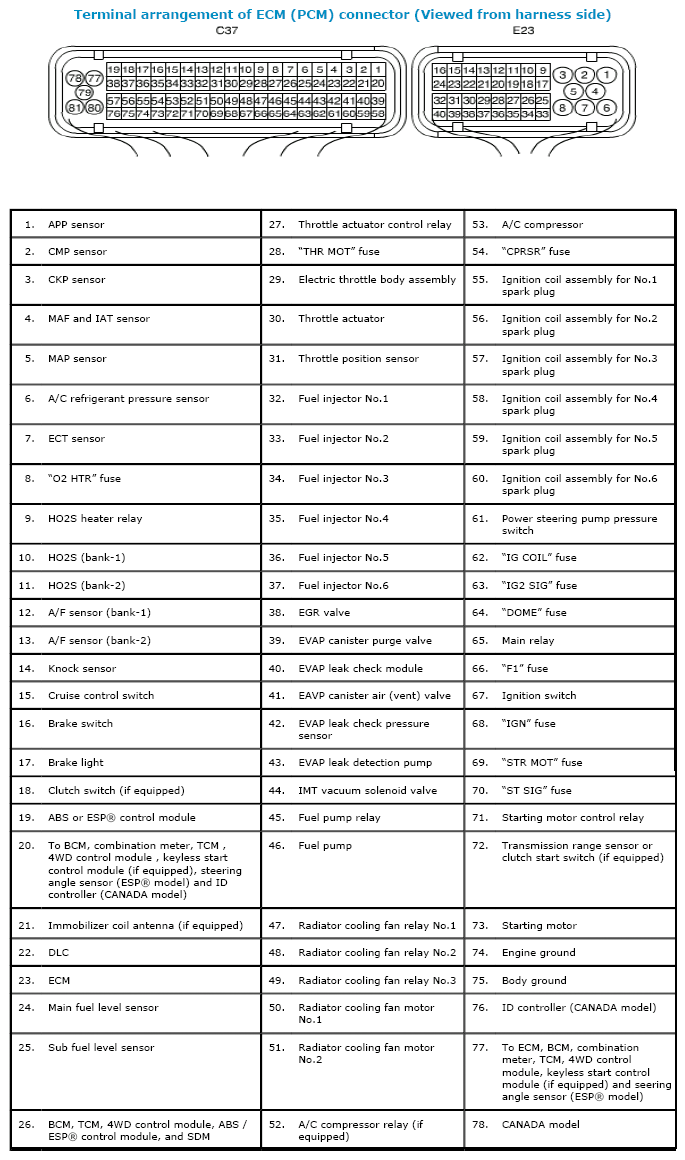

Fig 2: Terminal Arrangement Of ECM (PCM) Connector
G05472684Courtesy of SUZUKI OF AMERICA CORP.
