EFI Main Relay Test

To test EFI main relay, See Fig 1. Relay is located on right front fenderwell. See Figure. Replace relay if defective.

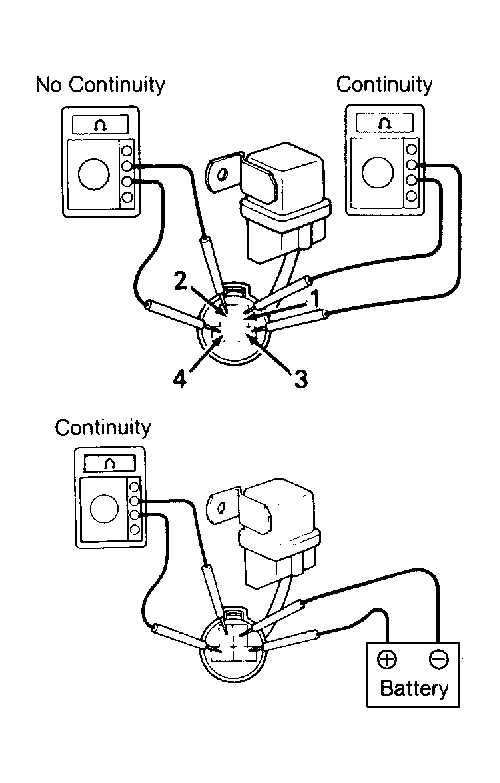

Fig 1: Testing EFI Main Relay
G118922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
