Paseo & Tercel

Obtain access to ECU. See Figure. Turn ignition on. Using voltmeter, check voltage between designated terminals on ECU with connector installed on ECU. Voltage should be as specified. See Fig 10.

NOTE: Connector "A" goes to ignition switch, brakelight switch and key interlock solenoid. Connector "B" goes to shift lock solenoid and shift lock control switch.

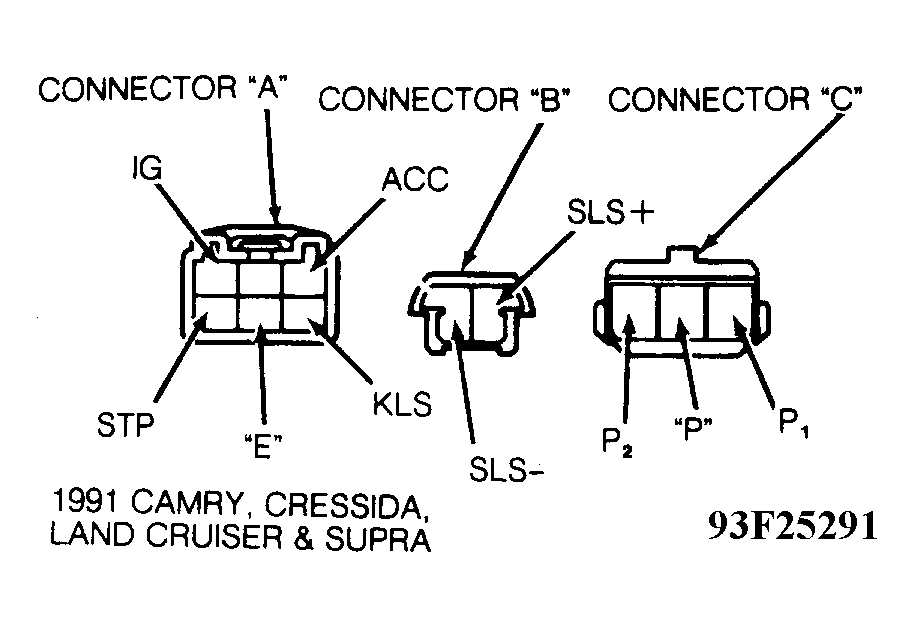

Fig 1: Checking ECU Voltages (1 Of 4)

G93F25291

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

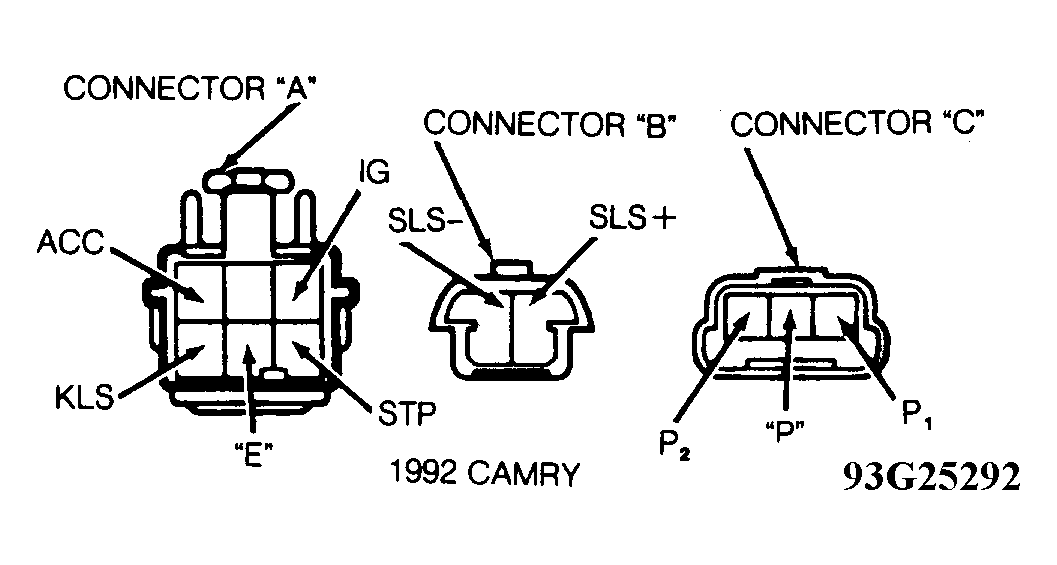

Fig 2: Checking ECU Voltages (2 Of 4)

G93G25292

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

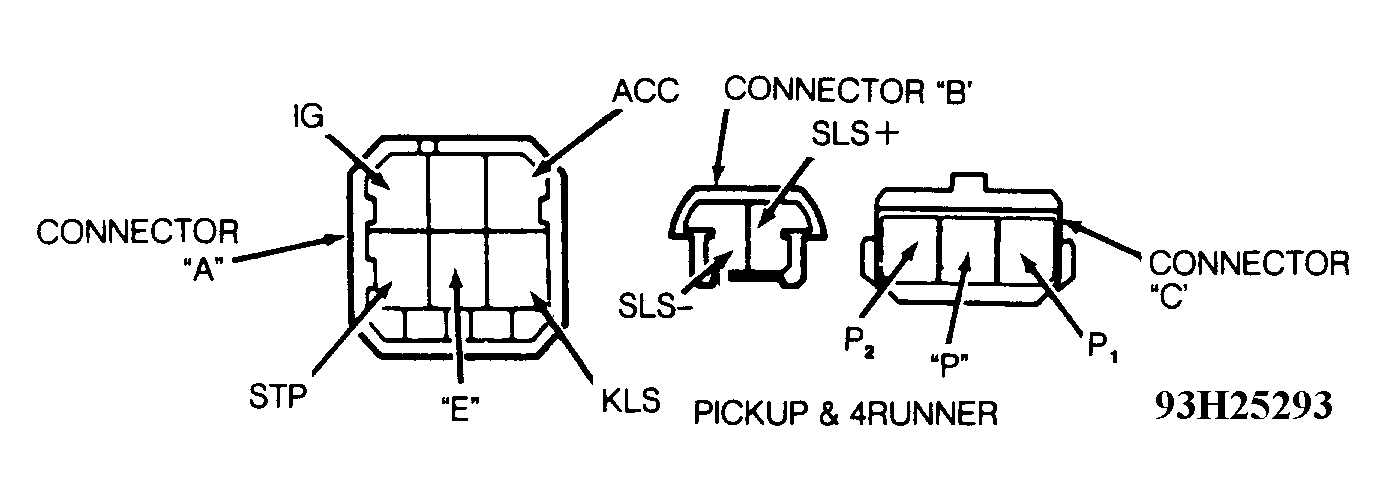

Fig 3: Checking ECU Voltages (3 Of 4)

G93H25293

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

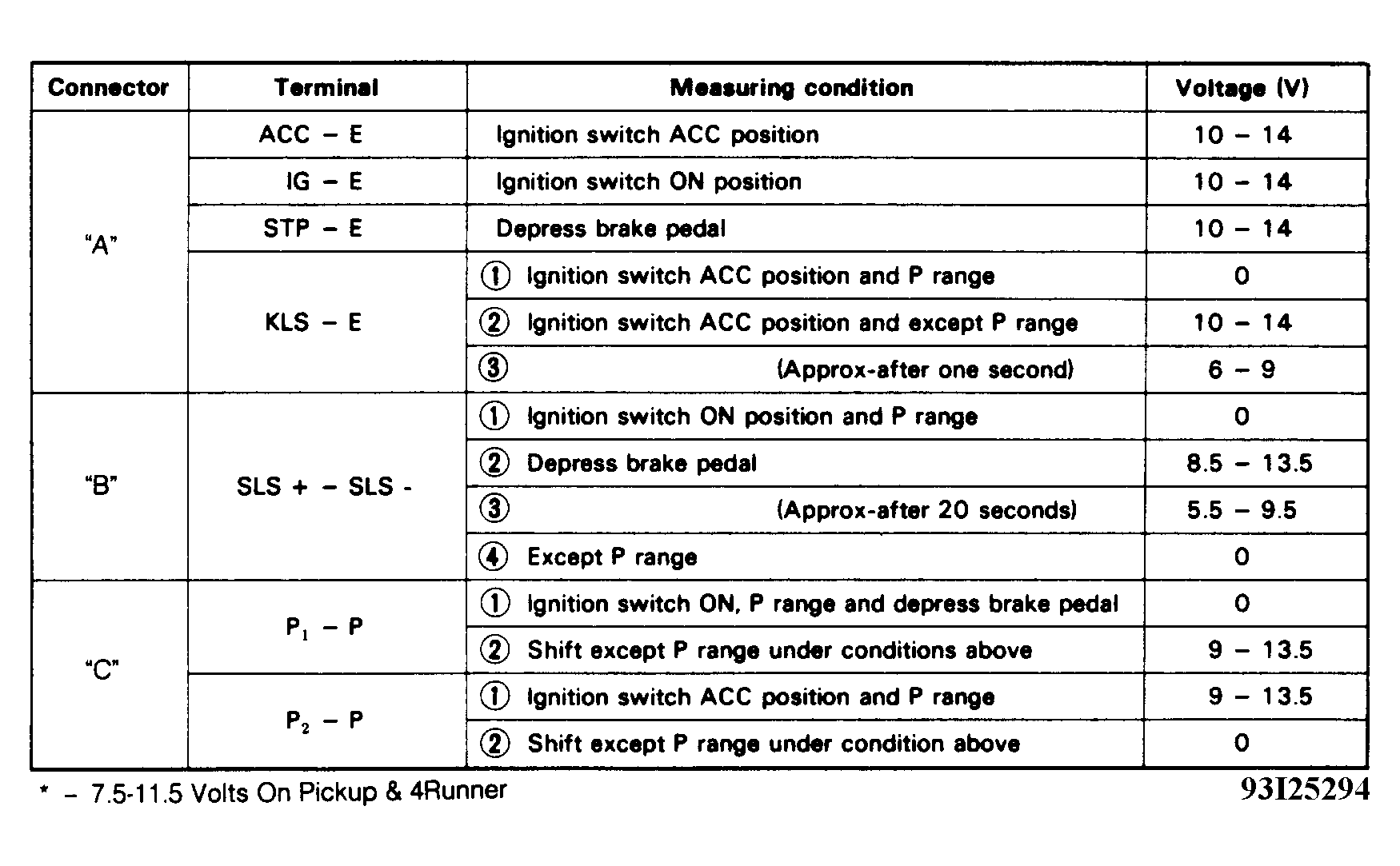

Fig 4: Checking ECU Voltages (4 Of 4)

G93I25294

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

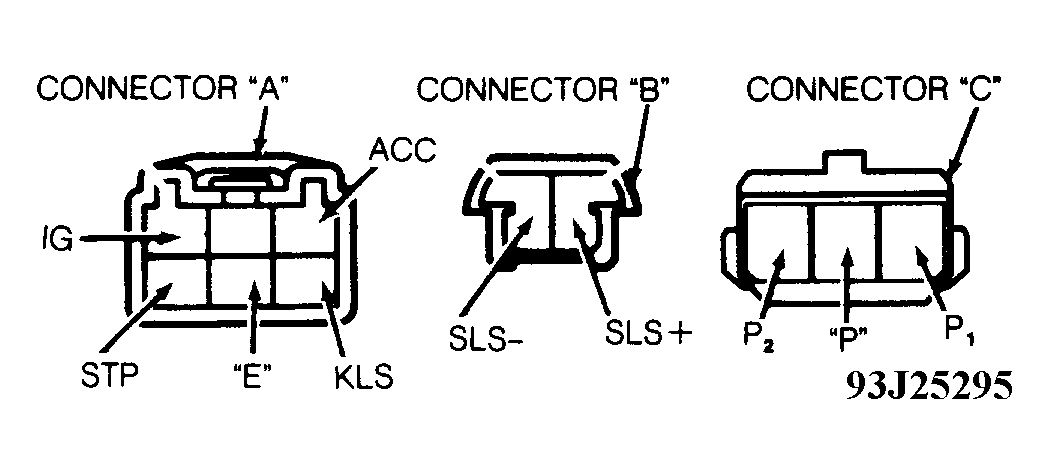

Fig 5: Checking ECU Voltages & Continuity (Celica & MR2 - 1 Of 3)

G93J25295

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

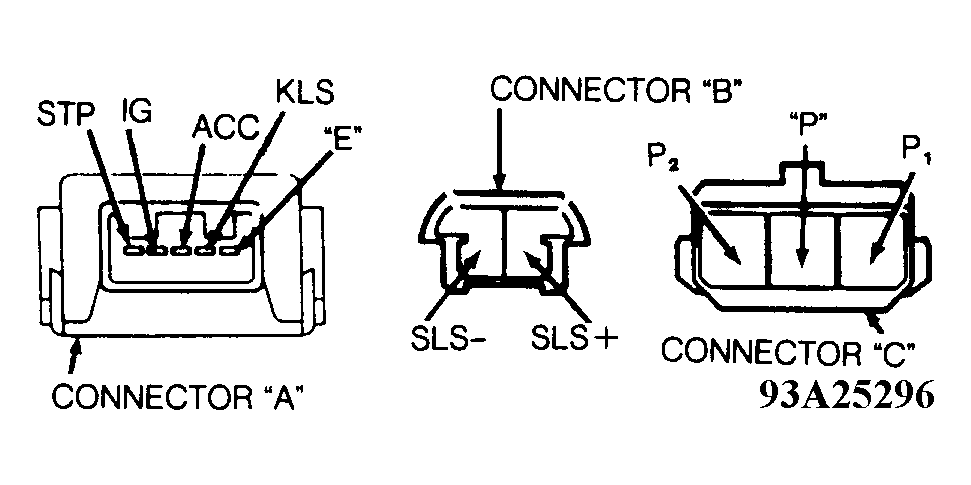

Fig 6: Checking ECU Voltages & Continuity (Celica & MR2 - 2 OF 3)

G93A25296

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

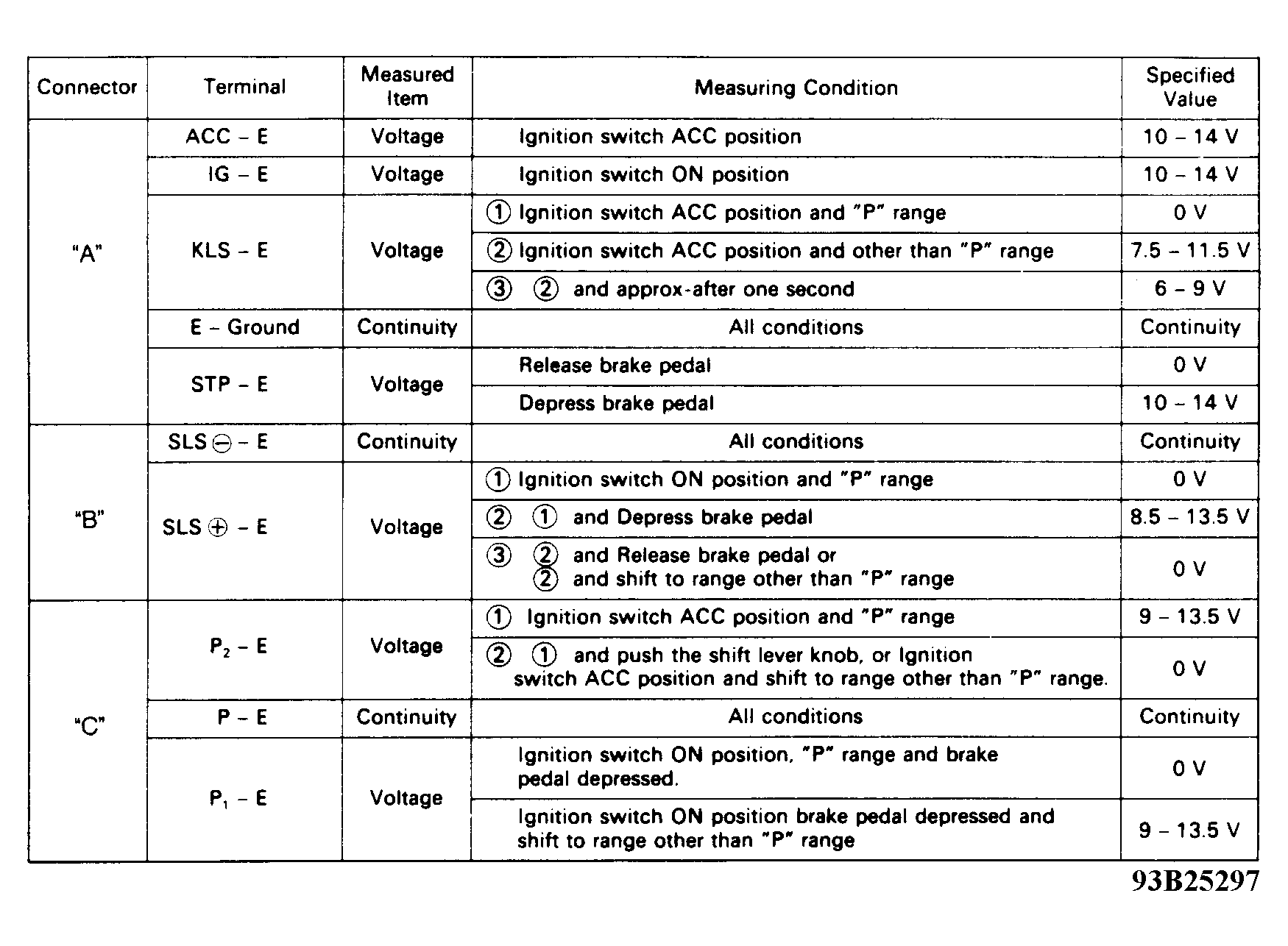

Fig 7: Checking ECU Voltages & Continuity (Celica & MR2 - 3 Of 3)

G93B25297

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

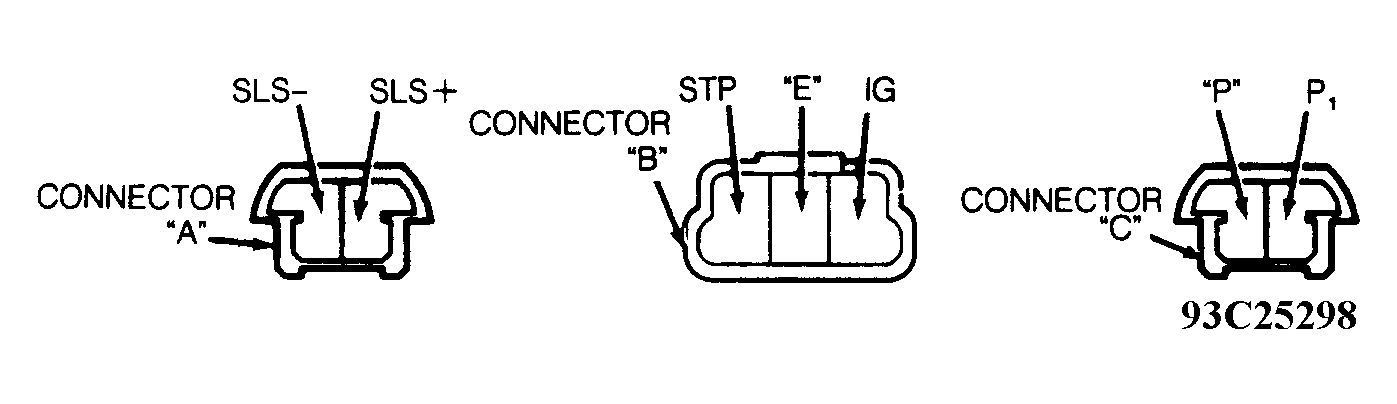

Fig 8: Checking ECU Voltages & Continuity (Corolla - 1 Of 2)

G93C25298

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

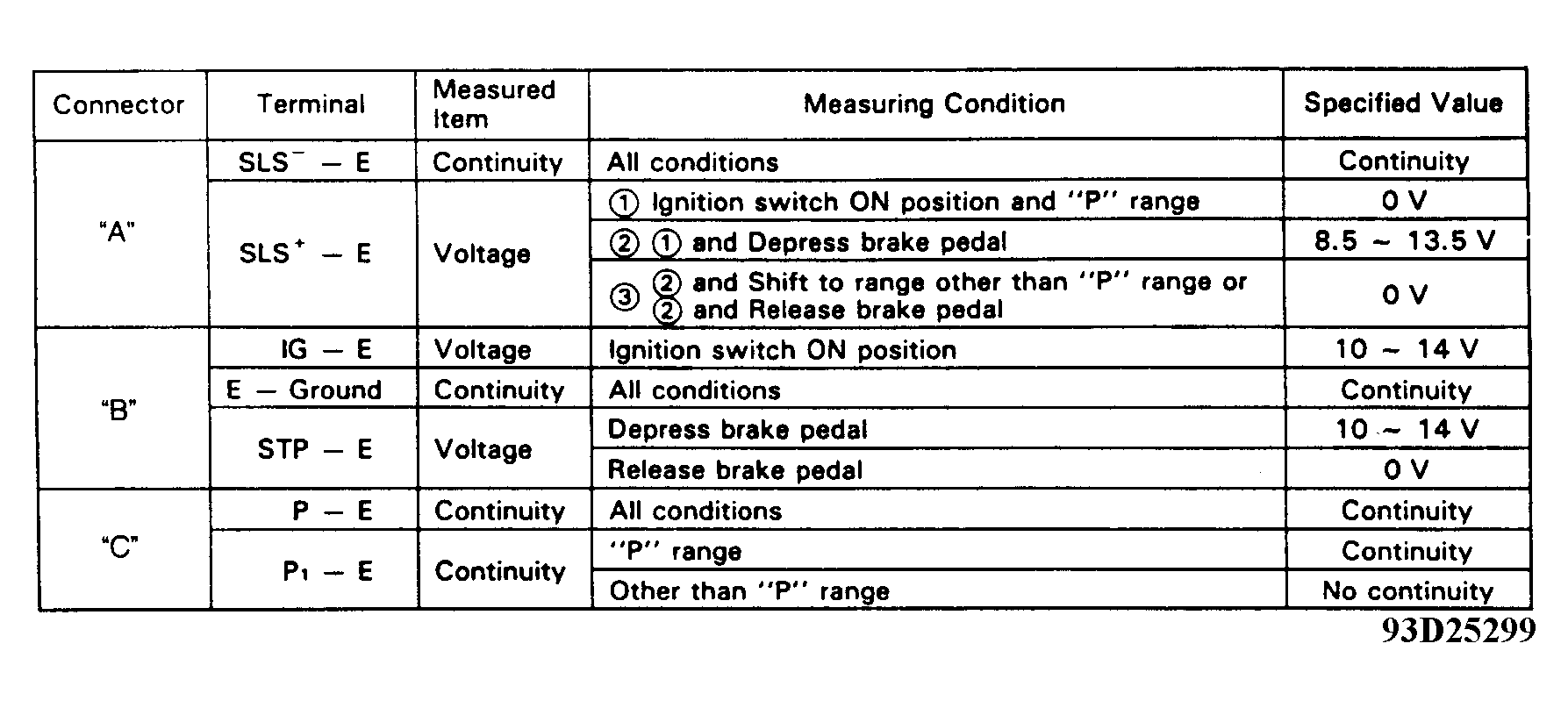

Fig 9: Checking ECU Voltages & Continuity (Corolla - 2 Of 2)

G93D25299

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

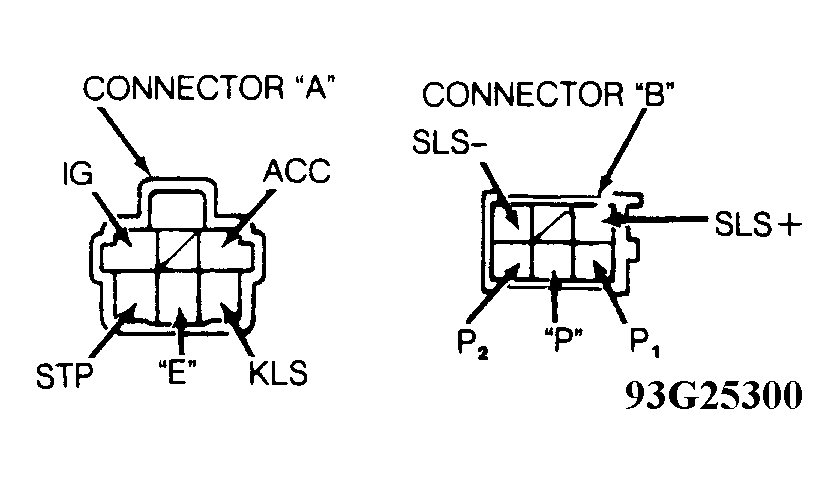

Fig 10: Checking ECU Voltages (Paseo & Tercel - 1 Of 2)

G93G25300

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

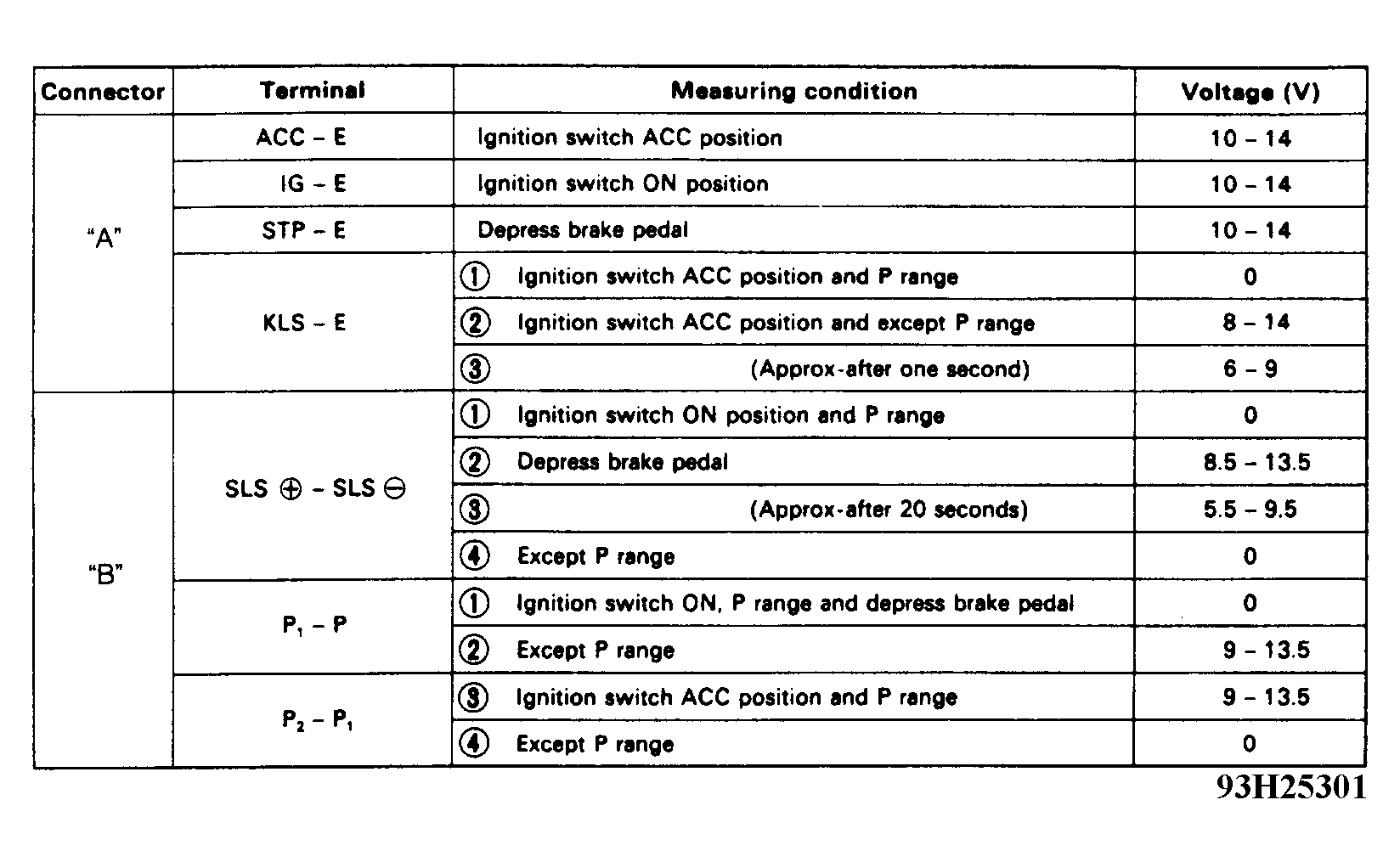

Fig 11: Checking ECU Voltages (Paseo & Tercel - 1 Of 2)

G93H25301

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
