Component Locations

NOTE: For information on fuse identification, see appropriate FUSES & CIRCUIT BREAKERS article in ELECTRICAL.

For component location, refer to illustrations. See Fig 1 and Fig 3 .

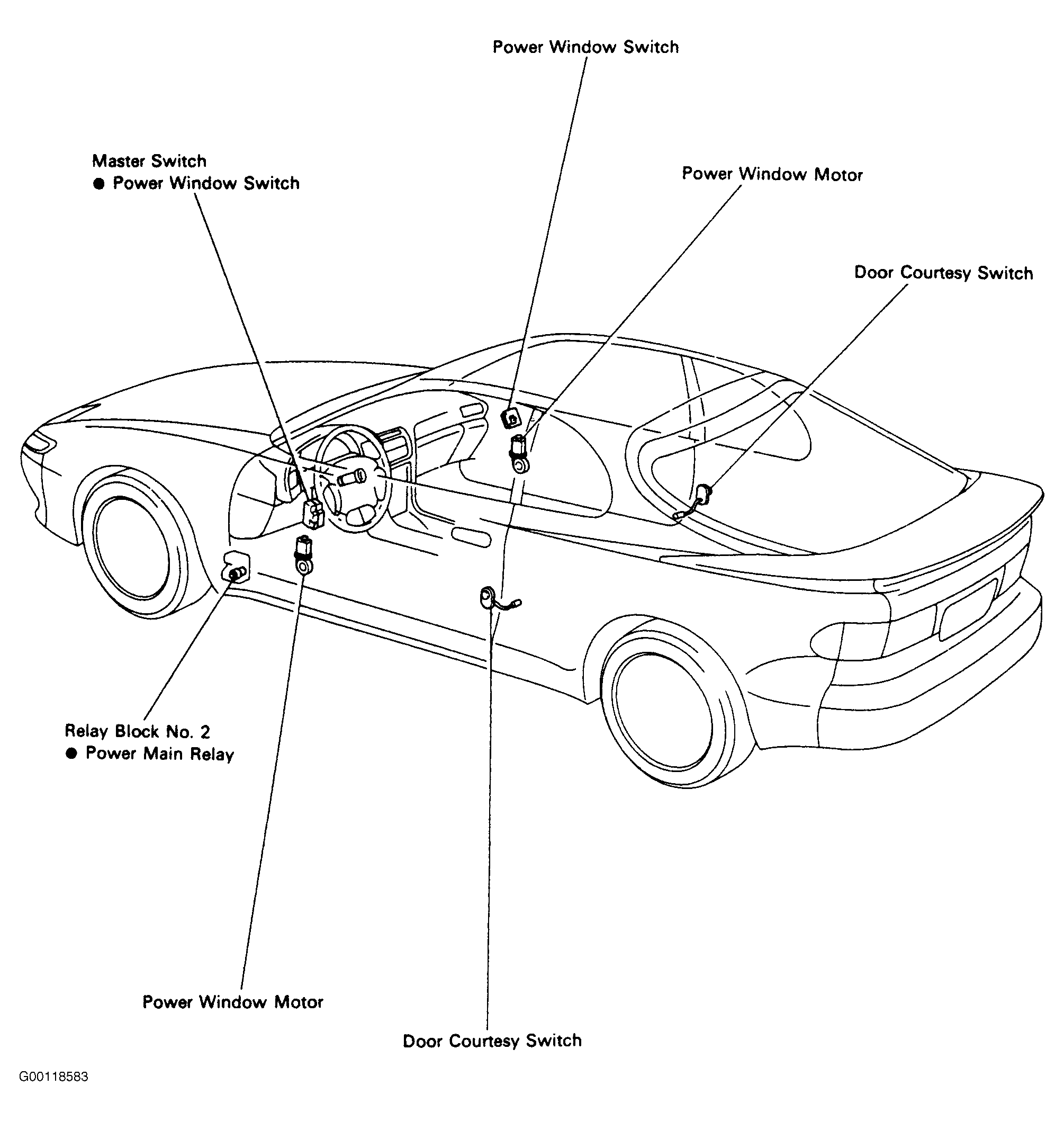

Fig 1: Locating Power Window Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

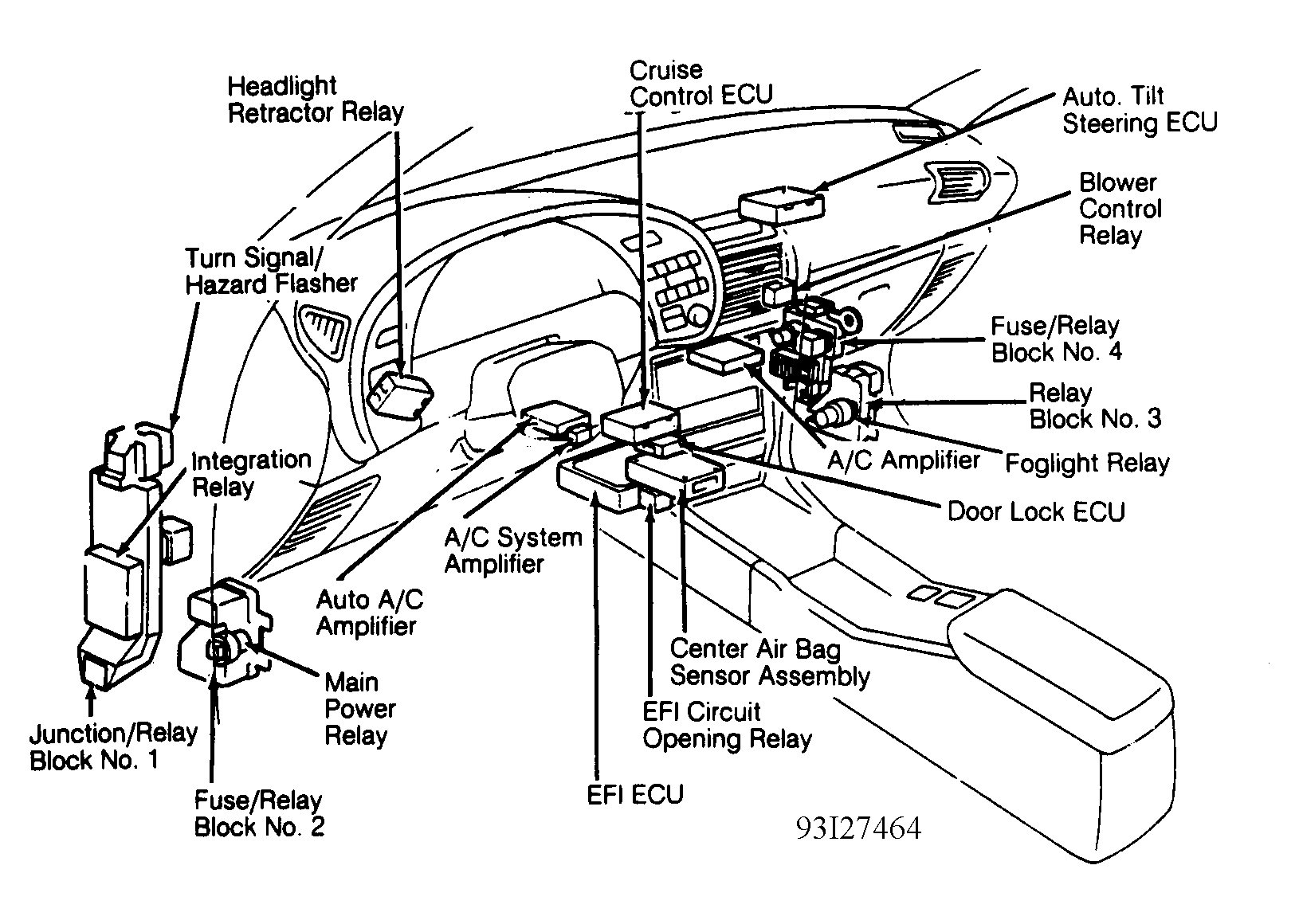

Fig 2: Locating Door Lock Control ECU

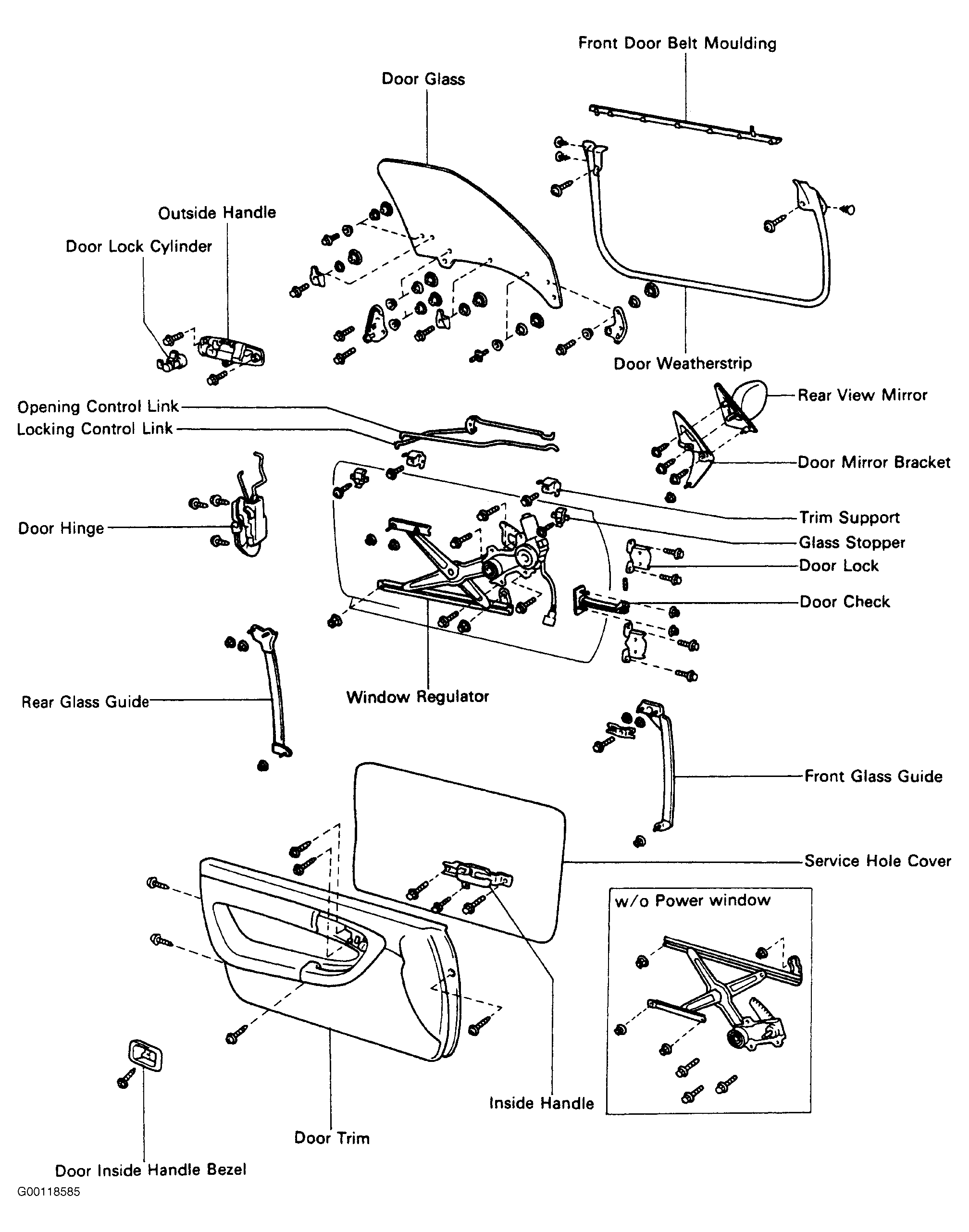

Fig 3: Locating Door Components
