Throttle Valve Opener

  1. Engine must be at normal operating temperature. Ensure idle speed is correct. Disconnect vacuum hose from throttle valve opener and plug hose. See Fig 1. Raise engine speed to 2500 RPM.
  2. Release throttle valve. Check throttle valve opener RPM. See THROTTLE VALVE OPENER RPM table. If throttle valve opener RPM is not as specified, replace throttle body.
THROTTLE VALVE OPENER RPM

Application RPM
Tercel 1200-1800

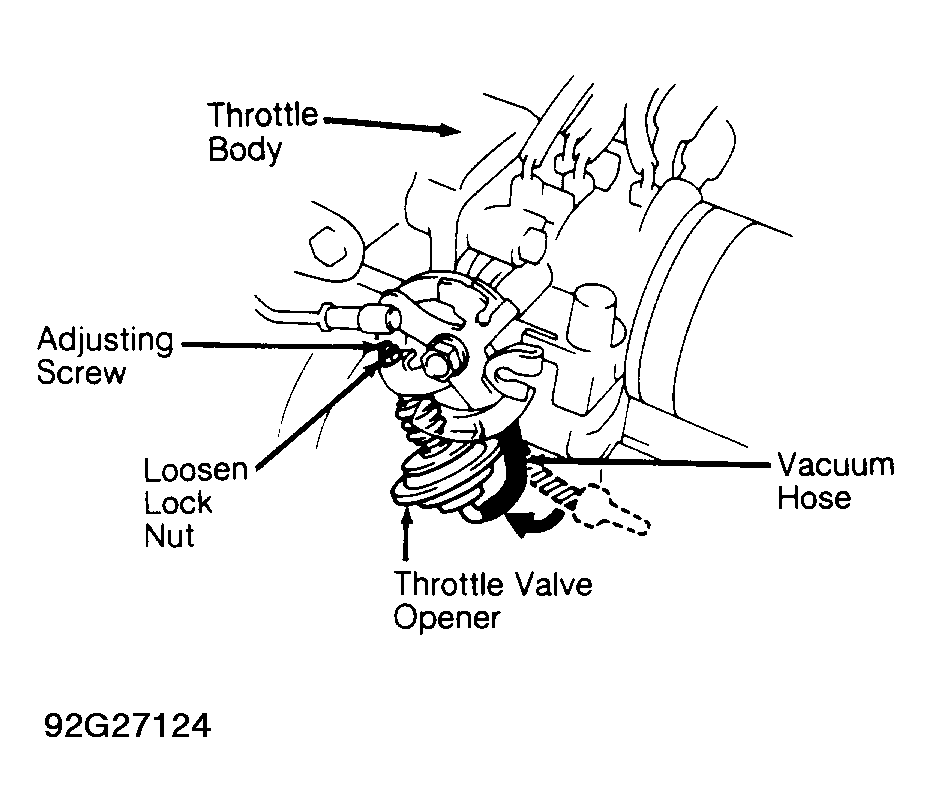

Fig 1: Adjusting Throttle Valve Opener
G92G27124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
