Shift Cable

  1. Loosen swivel nut on manual shift lever. Push manual shift lever fully toward right side of vehicle.
  2. Return lever 2 notches to Neutral position. Ensure shift lever is in "N". While holding lever lightly toward "R" range side, tighten swivel nut to 61 INCH lbs. (6 N.m). See Fig 1.

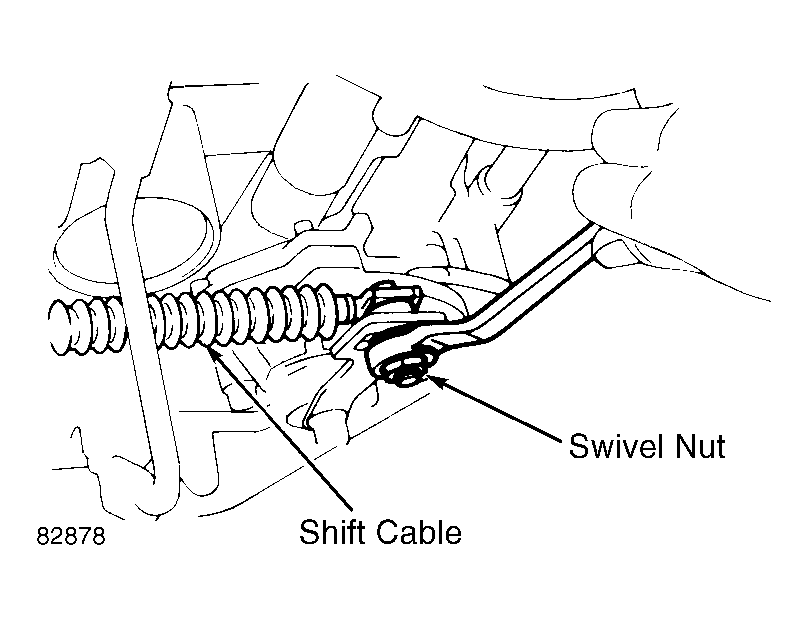

Fig 1: Adjusting Shift Cable
G82878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
