Diagnosis & Repair

  1. Disconnect CMP sensor connector. See Fig 1. Using ohmmeter, measure resistance between sensor connector terminals. Resistance should be 135-220 ohms (cold sensor) or 175-255 ohms (hot sensor). Replace sensor as necessary. If sensor is okay, go to next step.
  2. Check for an open or short circuit in wiring harness between ECM and CMP sensor. See appropriate wiring diagram in WIRING DIAGRAMS article. Repair as necessary. If circuits are okay, go to next step.
  3. Check sensor air gap. See BASIC TESTING article. If air gap is not within specification, replace distributor. If air gap is okay, replace ECM and retest.

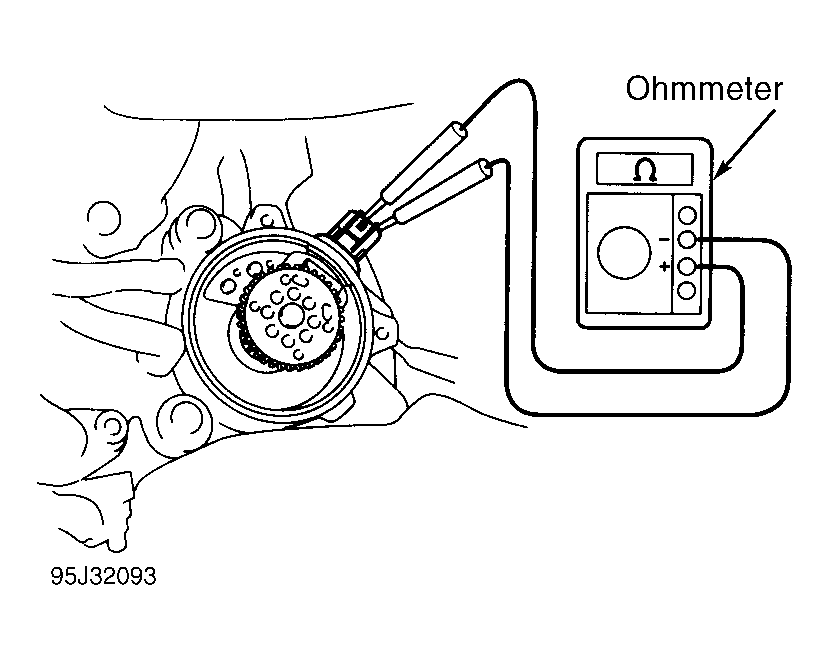

Fig 1: Testing Camshaft Position (CMP) Sensor
G95J32093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
