Fuel Pressure Regulator: Removal

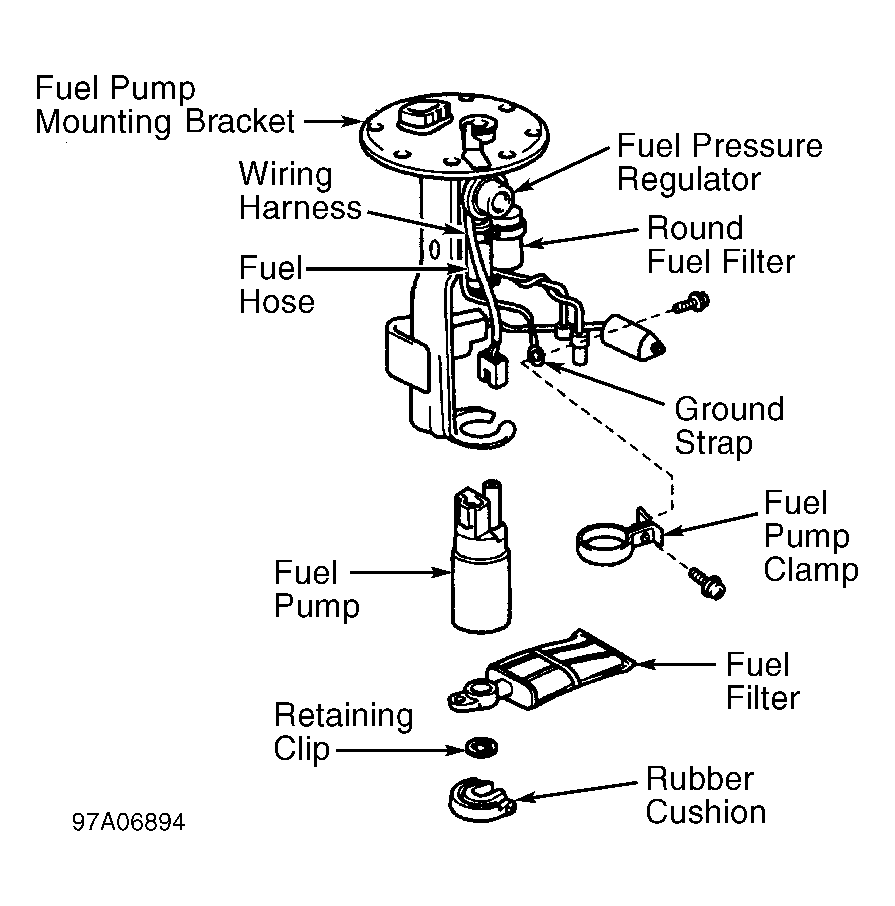

  1. Fuel pressure regulator is located on fuel pump in the fuel tank. See Figure. Remove fuel pump assembly from the fuel tank. See FUEL PUMP  under FUEL SYSTEM.
  2. Remove clip from round fuel filter. Disconnect fuel hose from fuel pressure regulator. See Figure. Remove fuel pressure regulator retaining screw. Remove fuel pressure regulator with "O" ring from fuel pump mounting bracket. Remove "O" ring from fuel pressure regulator.
