Fuel Pump: Installation

  1. Install NEW gasket on fuel tank. Install fuel pump assembly in fuel tank so arrow on fuel pump mounting bracket aligns with arrow on fuel tank. See Figure.
    NOTE: Ensure arrow on fuel pump mounting bracket aligns with arrow on fuel tank when installing fuel pump assembly.
  2. Install fuel pump retainer. Using fuel pump retainer remover/installer, tighten fuel pump retainer until arrow on fuel pump retainer is within the lines on the fuel tank. See Figure. Ensure arrow on fuel pump mounting bracket is still aligned with arrow on fuel tank.
  3. Install retainer clamp. To install remaining components, reverse removal procedure using NEW gaskets on fuel outlet line-to-fuel pump mounting bracket union bolt. Tighten fuel outlet line-to-fuel pump mounting bracket union bolt to specification. See TORQUE SPECIFICATIONS .
  4. Operate fuel pump and check for fuel leaks. See FUEL PUMP OPERATION under FUEL SYSTEM in appropriate BASIC TESTING article.
Fig 1: Exploded View Of Fuel Pump & Components (Non-Turbo)
G98E11902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


  1. Install NEW gasket on fuel tank. Install fuel pump assembly in fuel tank so arrow on fuel pump mounting bracket aligns with arrow on fuel tank. See Figure.
    NOTE: Ensure arrow on fuel pump mounting bracket aligns with arrow on fuel tank when installing fuel pump assembly.
  2. Install fuel pump retainer. Using fuel pump retainer remover/installer, tighten fuel pump retainer until arrow on fuel pump retainer is within the lines on the fuel tank. See Figure. Ensure arrow on fuel pump mounting bracket is still aligned with arrow on fuel tank.
  3. Install retainer clamp. To install remaining components, reverse removal procedure using NEW gaskets on fuel outlet line-to-fuel pump mounting bracket union bolt. Tighten fuel outlet line-to-fuel pump mounting bracket union bolt to specification. See TORQUE SPECIFICATIONS .
  4. Operate fuel pump and check for fuel leaks. See FUEL PUMP OPERATION under FUEL SYSTEM in appropriate BASIC TESTING article.

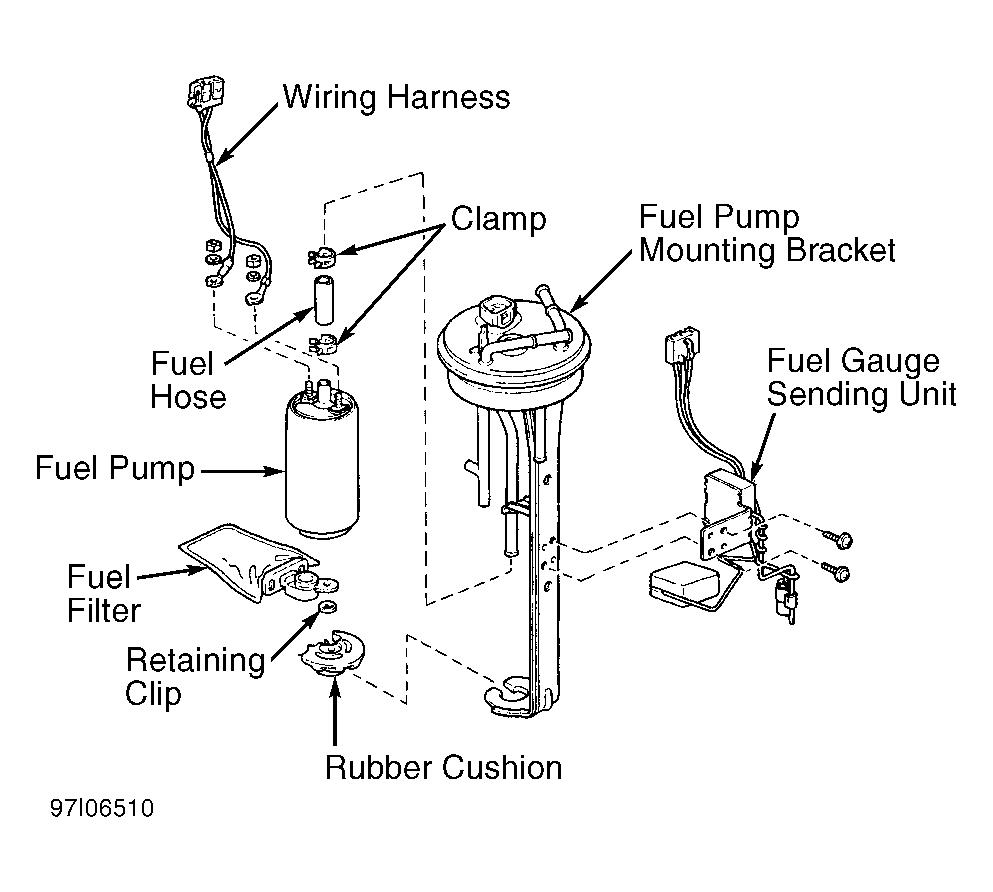

Fig 1: Exploded View Of Fuel Pump & Components (Turbo)
G97I06510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
