Component Locations

NOTE: For component locations, see Fig 1 and Fig 2 .

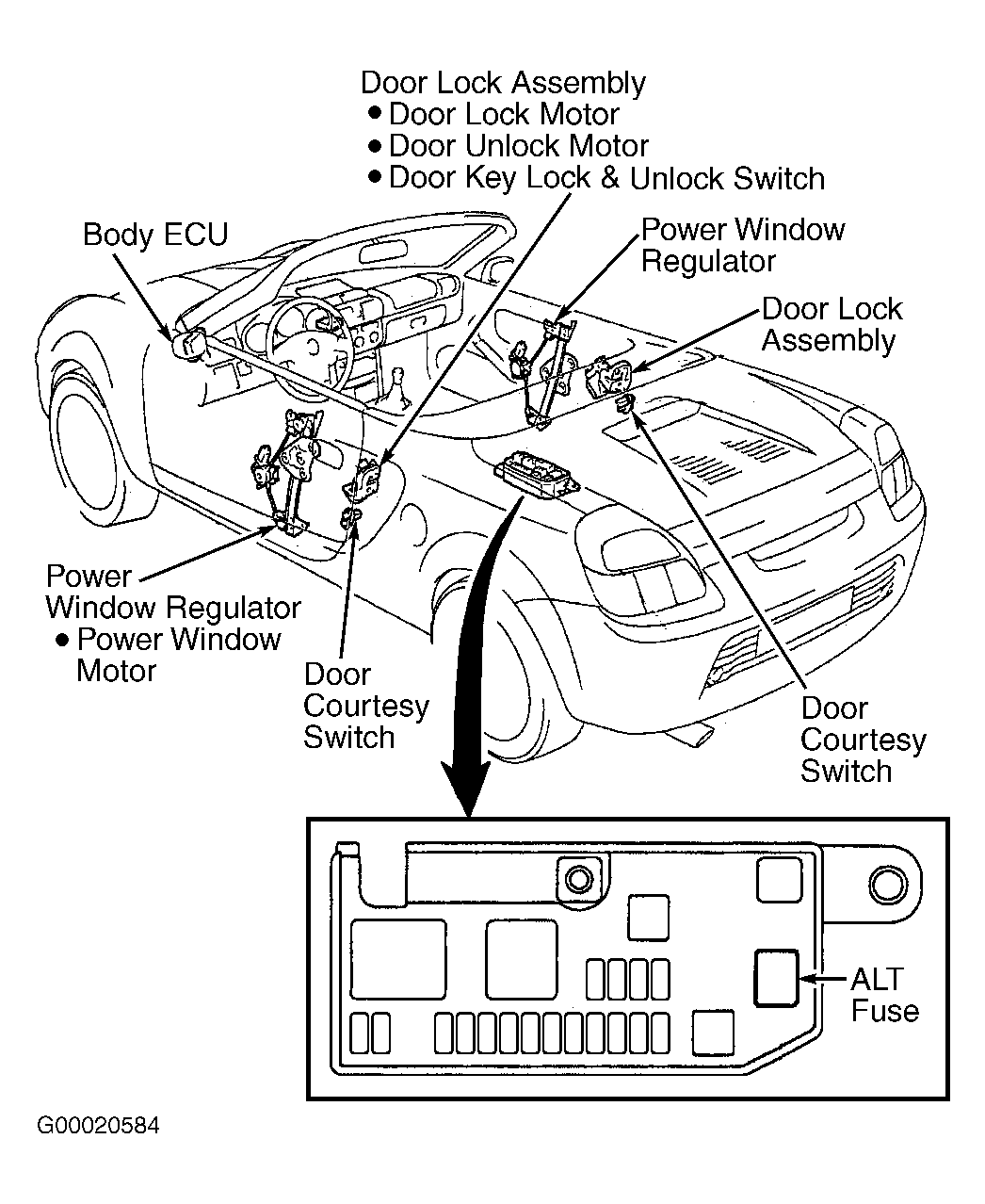

Fig 1: Locating Body Control Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

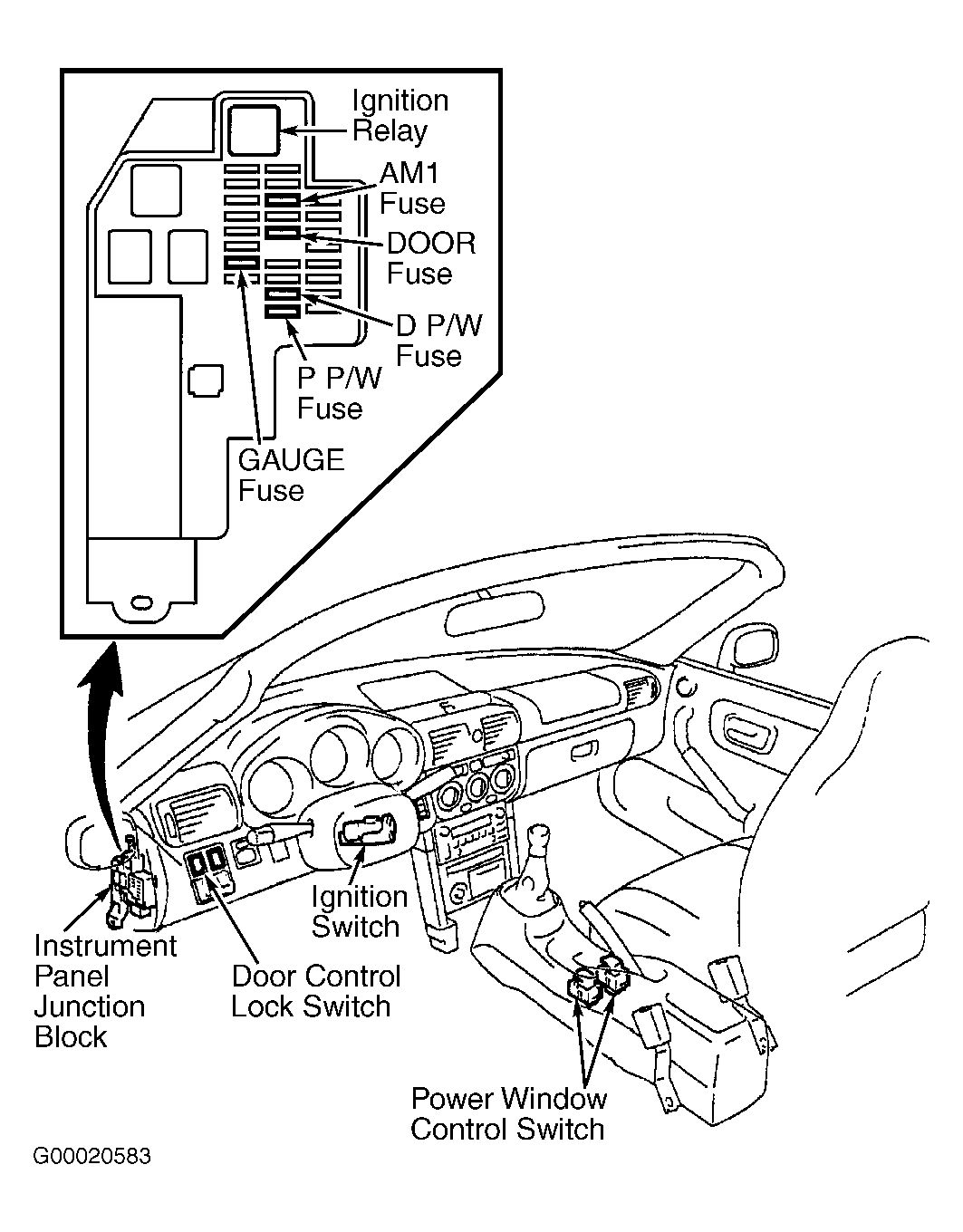

Fig 2: Locating Body Control Components (2 Of 2)
