Section 378 (Heater Control Assembly): Installation

WARNING: This page is about a different car, the 2004 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

Install Heater Control Assembly
1. Connect the 2 connectors to the heater control assembly.

  Fig 1: Installing Heater Control Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

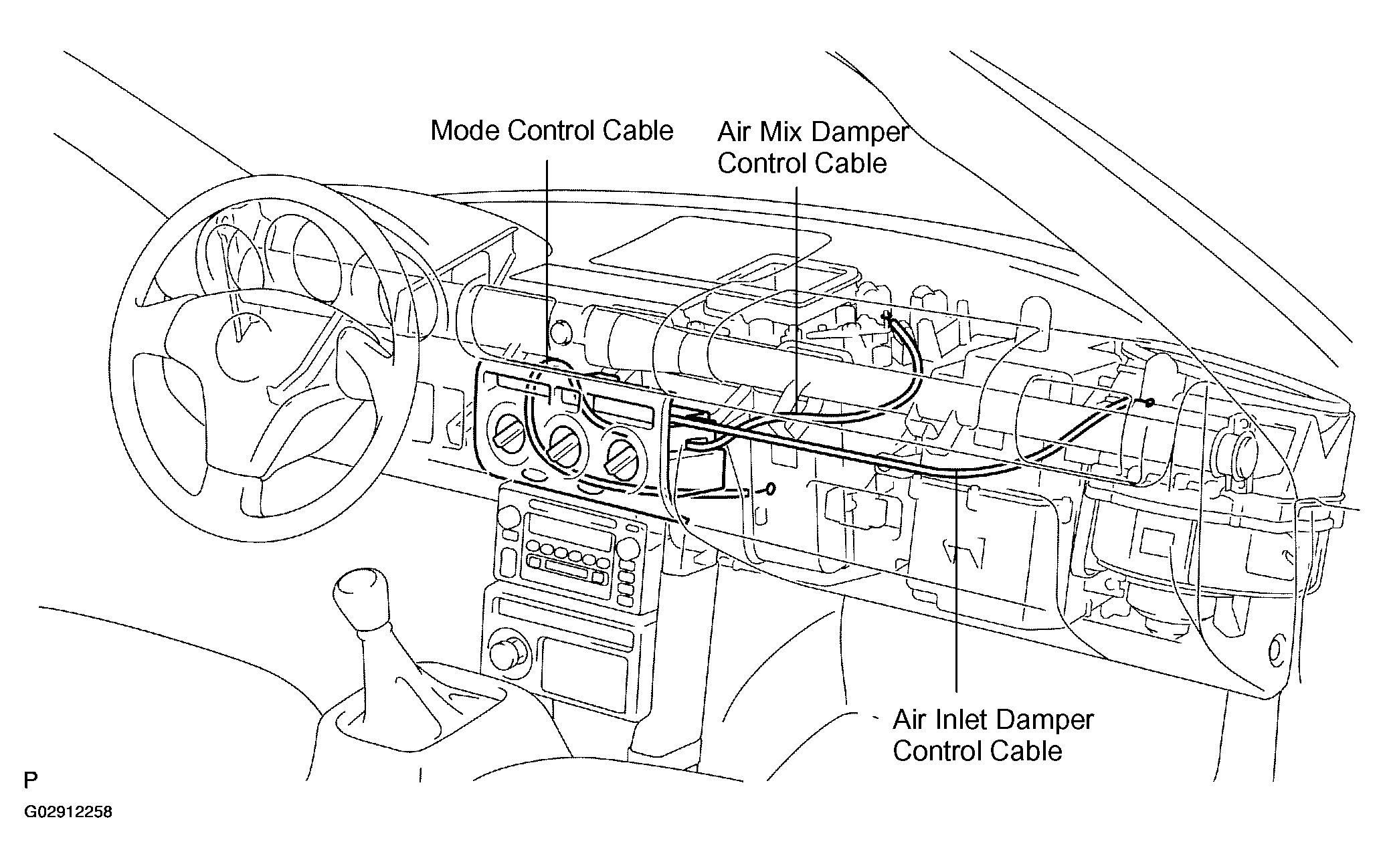

2. Pass through the A/C control cables as shown in Fig 2.

  Fig 2: Locating A/C Control Cables
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

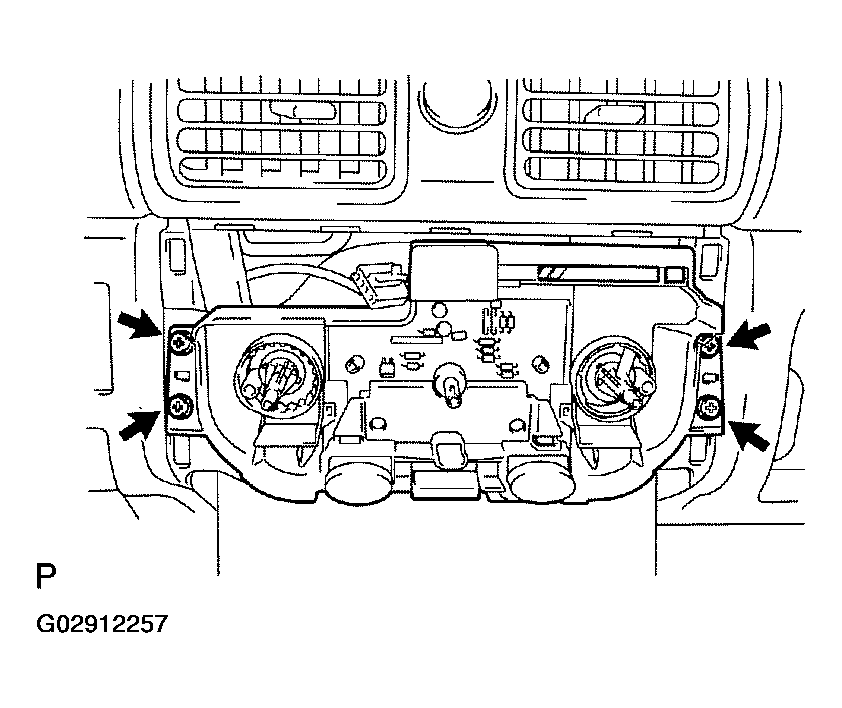

3. Install the heater control assembly with the 4 screws.

  Fig 3: Locating Control Cluster Finish Panel Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install Center Cluster Finish Panel
1. Connect the clock connector to the clock.

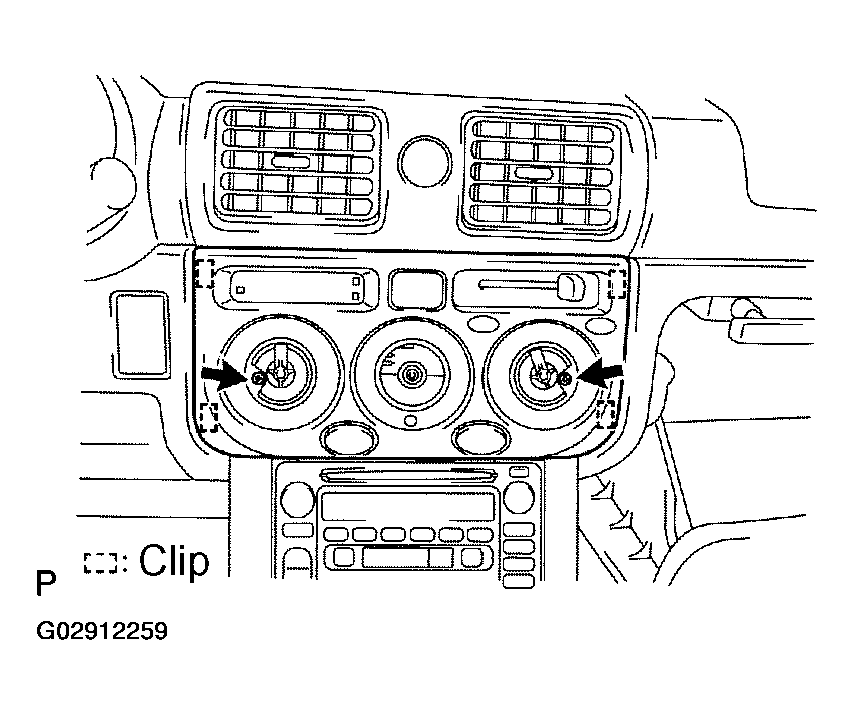

2. Install the center cluster finish panel with the 2 screws.
3. Install the 4 knobs.
Connect Heater Control Cables
1. Set the air inlet control lever to RECIRC position.
2. Set the temperature control dial to MAX. COOL position.
3. Set the mode control dial to FACE position.
4. Adjust the air inlet damper control cable.

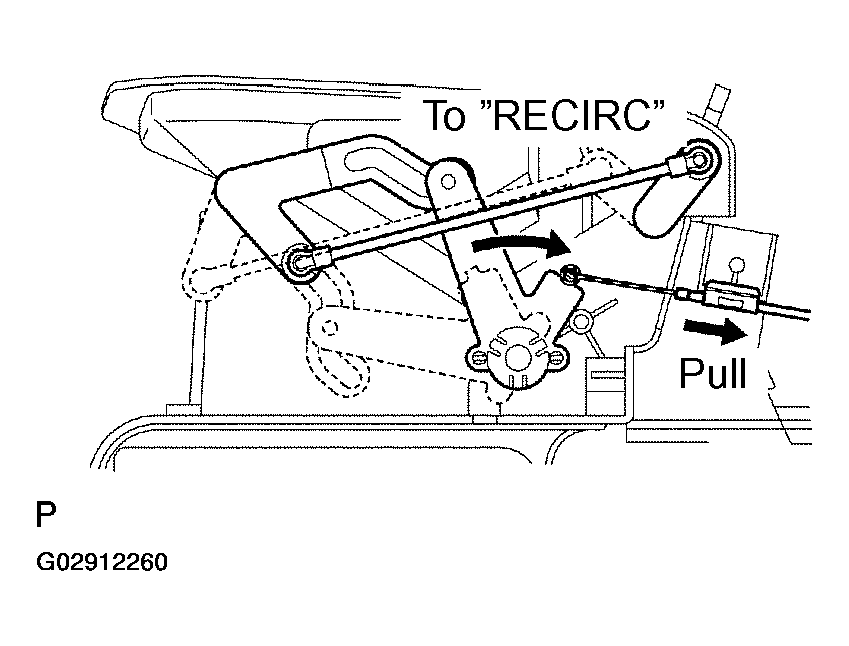

  Set the air inlet damper control lever to "RECIRC" position and connect the inner cable to lever pin and clamp the outer cable.

  NOTE: Lock the clamp while lightly pulling the outer cable to the direction shown by arrow in Fig 4.

  Fig 4: Identifying Air Damper Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Adjust air mix damper control cable.

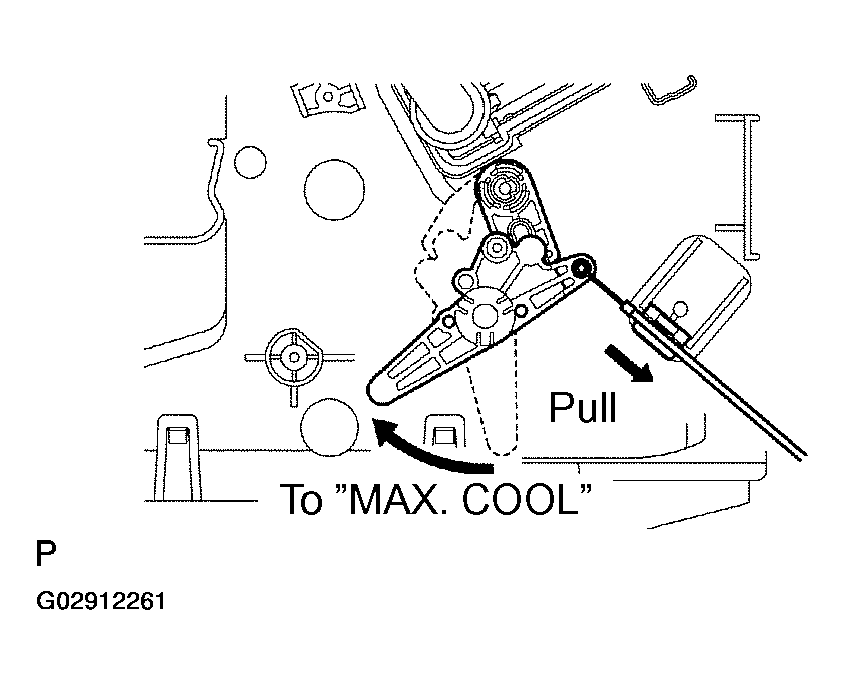

  Fig 5: Adjusting Air Mix Damper Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Set the air mix damper control lever to MAX. COOL position and connect the inner cable to lever pin and clamp the outer cable.

  NOTE: Lock the clamp while lightly pulling the outer cable to the direction shown by arrow in the illustration.
6. Adjust the mode control cable.

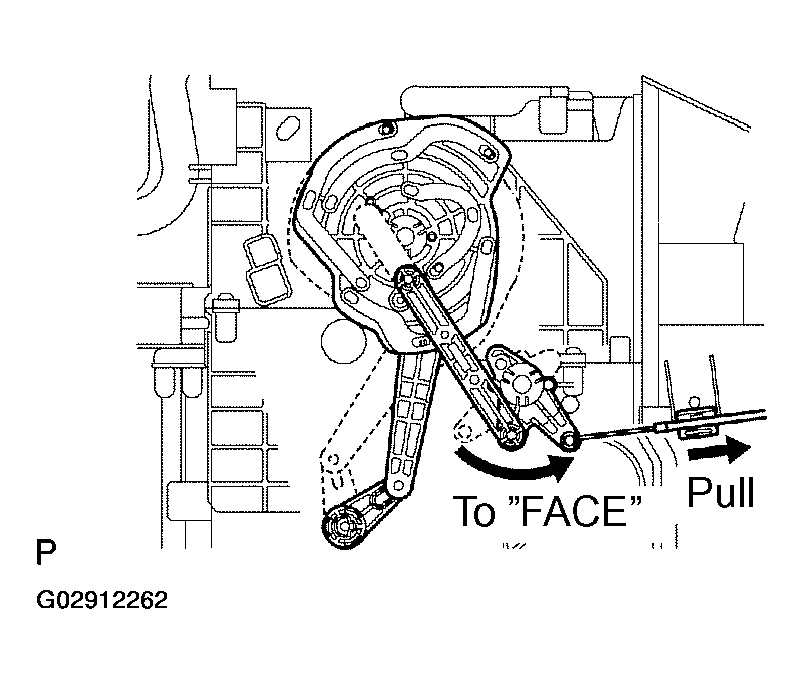

  Pull the air outlet damper control link to FACE position, connect the control cable and lock the clamp.

  NOTE: Lock the clamp while lightly pulling the outer cable to the direction shown by arrow in the illustration.

  Fig 6: Pulling Air Outlet Damper Control Link To Face Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
