Pattern Select Switch Signal

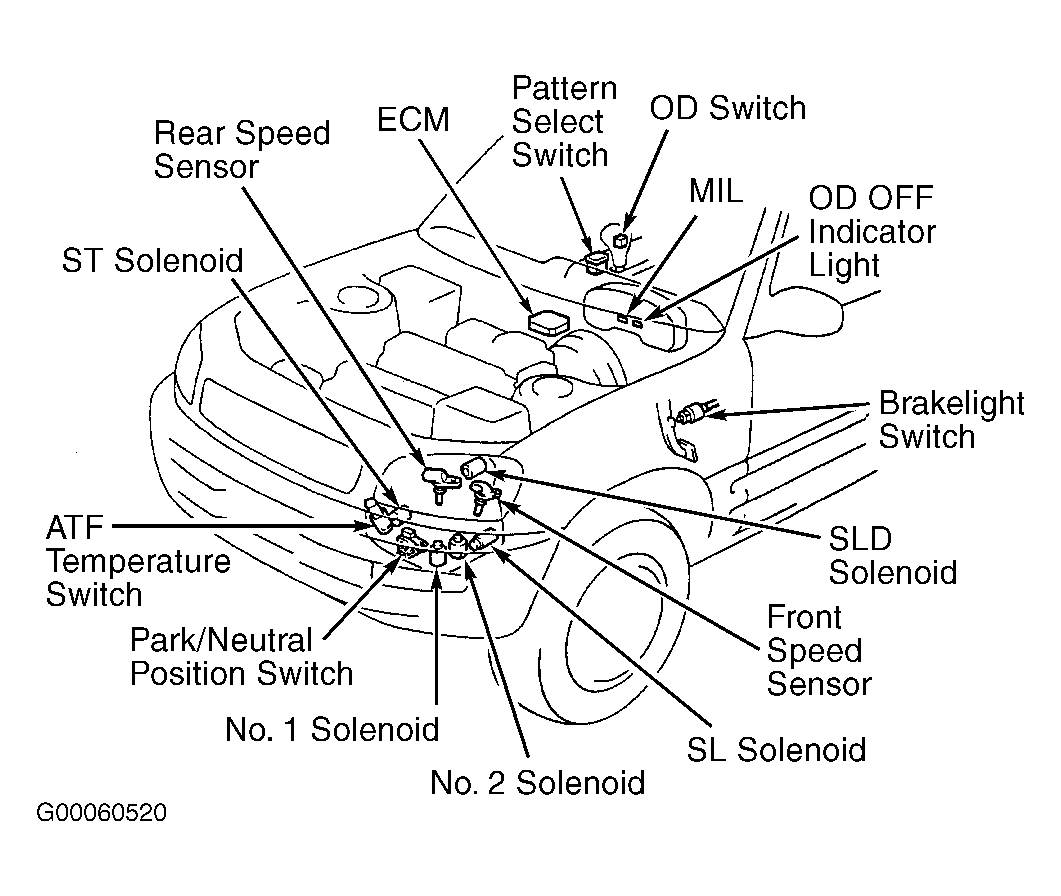

Pattern select switch delivers an input signal to ECM to indicate transaxle shift points selected by vehicle operator. Pattern select switch is located near shift lever on center console. See Figure.
