Test F: Stoplight Switch Circuit
Check stoplight switch continuity. See STOPLIGHT SWITCH CONTINUITY TEST (AVALON) table. If continuity is not as specified, replace switch. If continuity is as specified, go to TEST D: POWER SEAT CONTROL ECU .

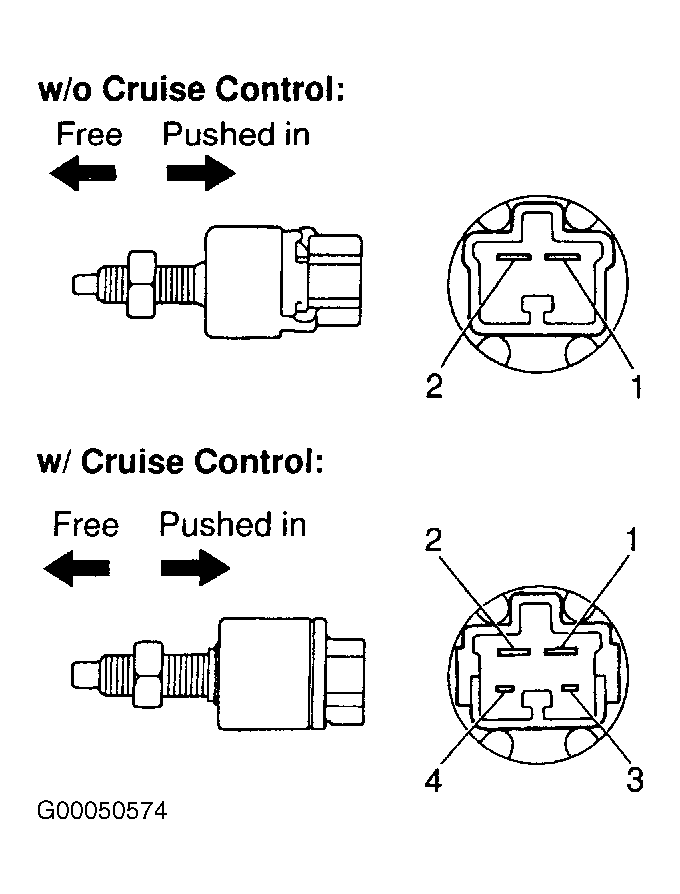

STOPLIGHT SWITCH CONTINUITY TEST (AVALON)
| Switch Position | Terminals No. (1) | Condition | |||
|---|---|---|---|---|---|
| Without Cruise Control | |||||
| Switch Pin Free | 1 & 2 | Continuity | |||
| Switch Pin Pushed In | 1 & 2 | No Continuity | |||
| With Cruise Control | |||||
| Switch Pin Free | 1 & 2 | Continuity | |||
| Switch Pin Pushed In | 1 & 2 | No Continuity | |||
| Switch Pin Free | 3 & 4 | No Continuity | |||
| Switch Pin Pushed In | 3 & 4 | Continuity | |||
|
|||||
