For Vehicles Equipped With Traction Control (TRAC) System

WARNING: This page is about a different car, the 2002 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When using a 2-wheel drum tester such as a speedometer tester or chassis dynamometer, etc., or jacking up the front wheels and driving the wheels, always push in the TRAC cut ("TRAC OFF") switch, see Fig 1, and turn the TRAC system OFF.

Confirm TRAC system is OFF:

Press the TRAC cut ("TRAC OFF") switch.

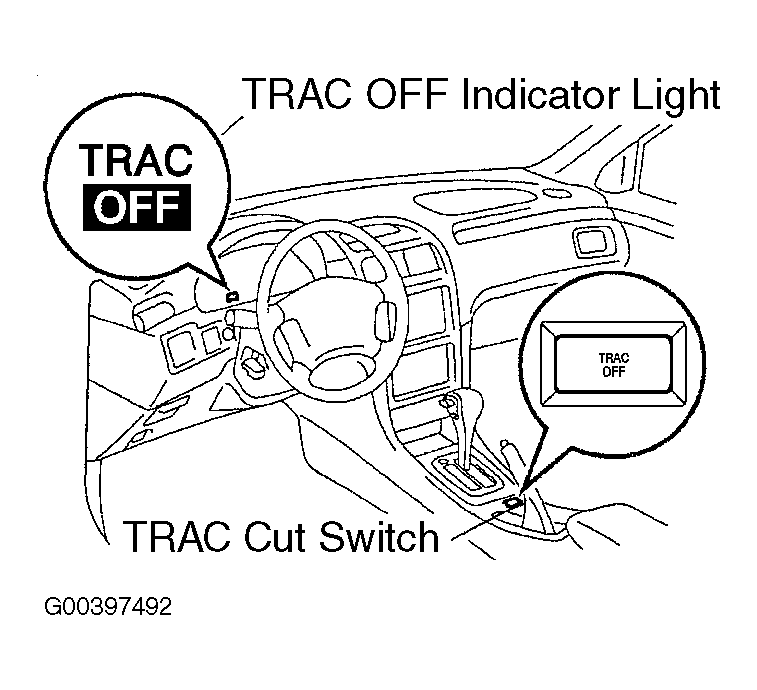

Fig 1: Locating TRAC Cut Switch & TRAC Off Indicator Light
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: The SLIP indicator light should always operate right after the engine is restarted. See Fig 2.

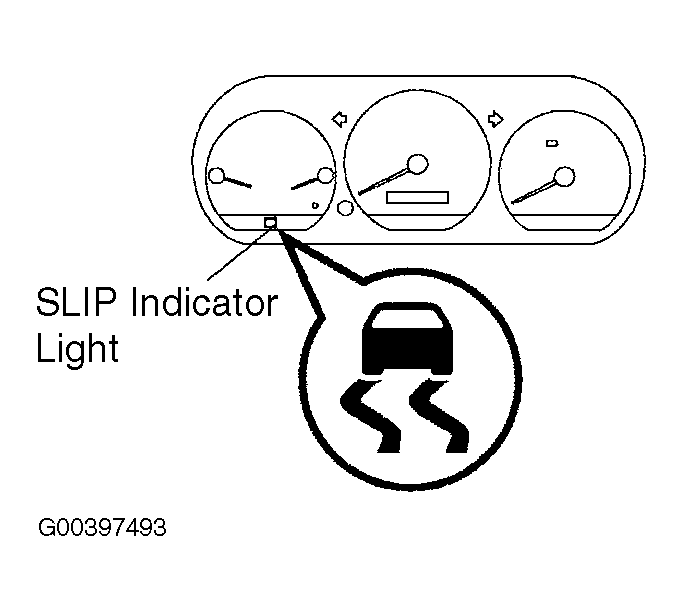

Fig 2: Locating SLIP Indicator Light

Check that the TRAC OFF indicator light comes on when the TRAC system is turned OFF by the TRAC cut switch.
Begin measurements.

NOTE: The SLIP indicator light blinks when the TRAC system is in operation.

Press the TRAC cut switch to turn the TRAC to the operative mode and check that the TRAC OFF indicator light goes off.
