Charcoal Canister (Matrix With 2ZZ-GE Engine)

For testing of charcoal canister, see Fig 1-Fig 2 .

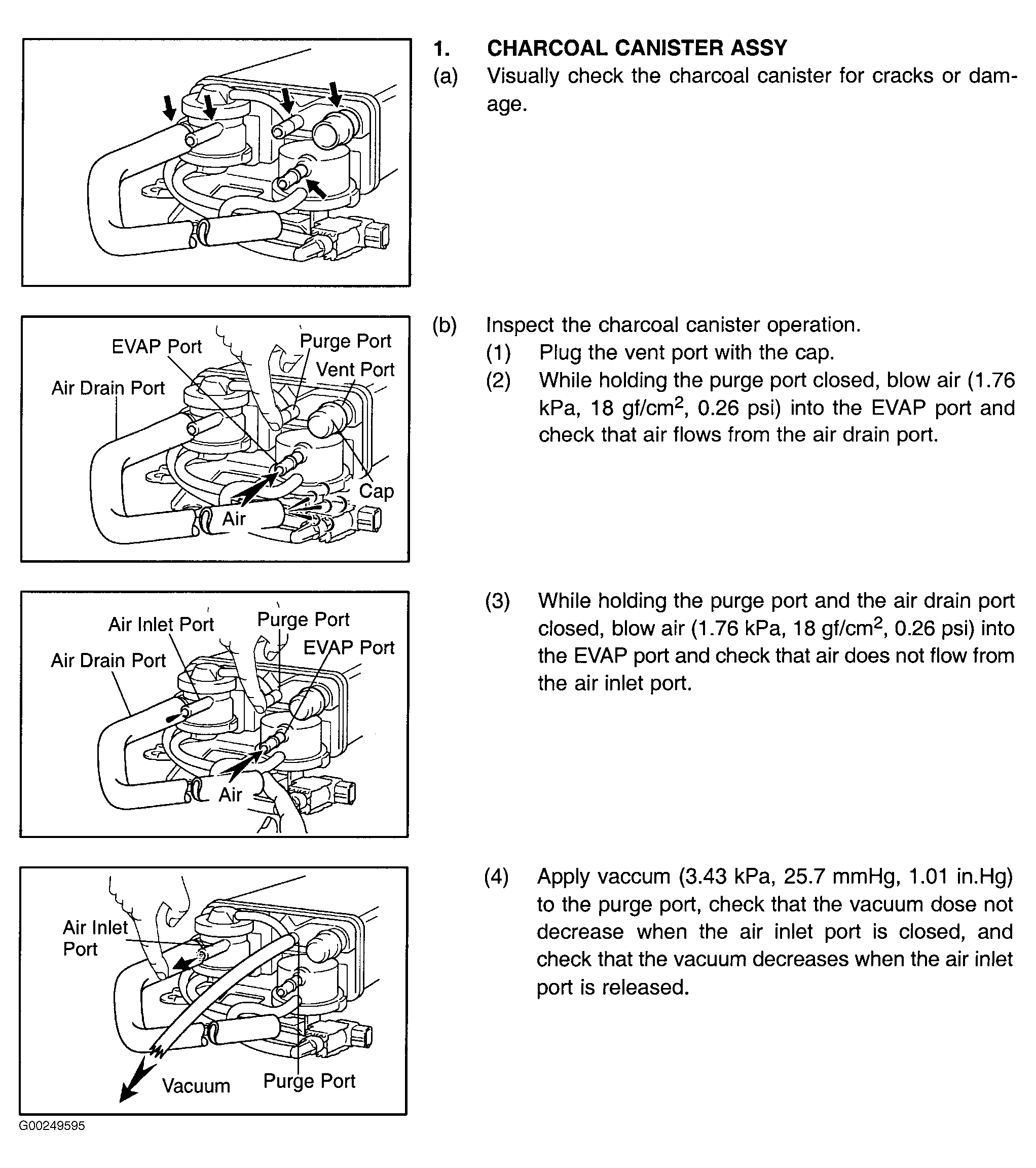

Fig 1: Testing Charcoal Canister - 1 Of 2 (Matrix With 2ZZ-GE Engine)
G00249595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

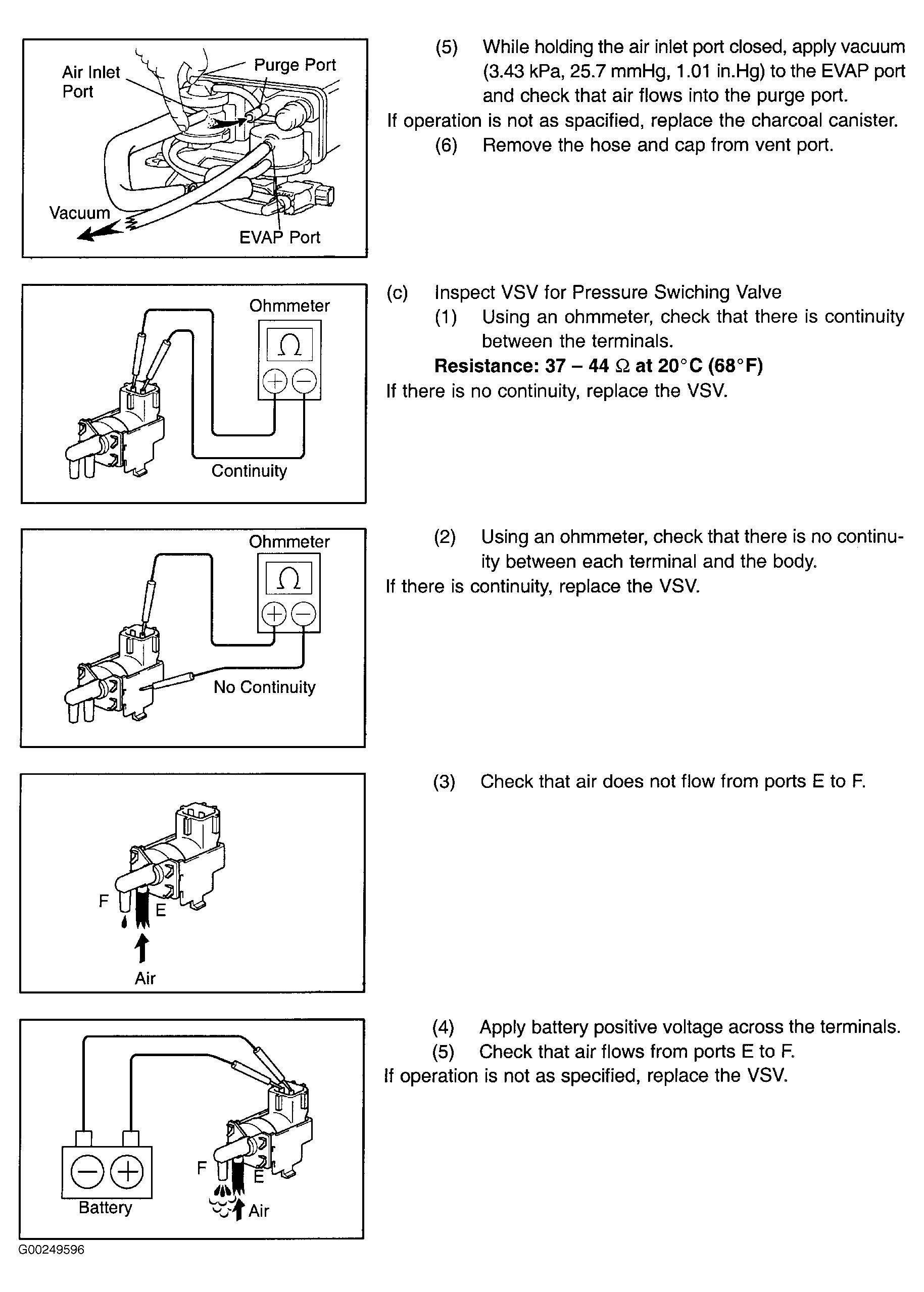

Fig 2: Testing Charcoal Canister - 2 Of 2 (Matrix With 2ZZ-GE Engine)
G00249596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
