Side AIR Bag Module
WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

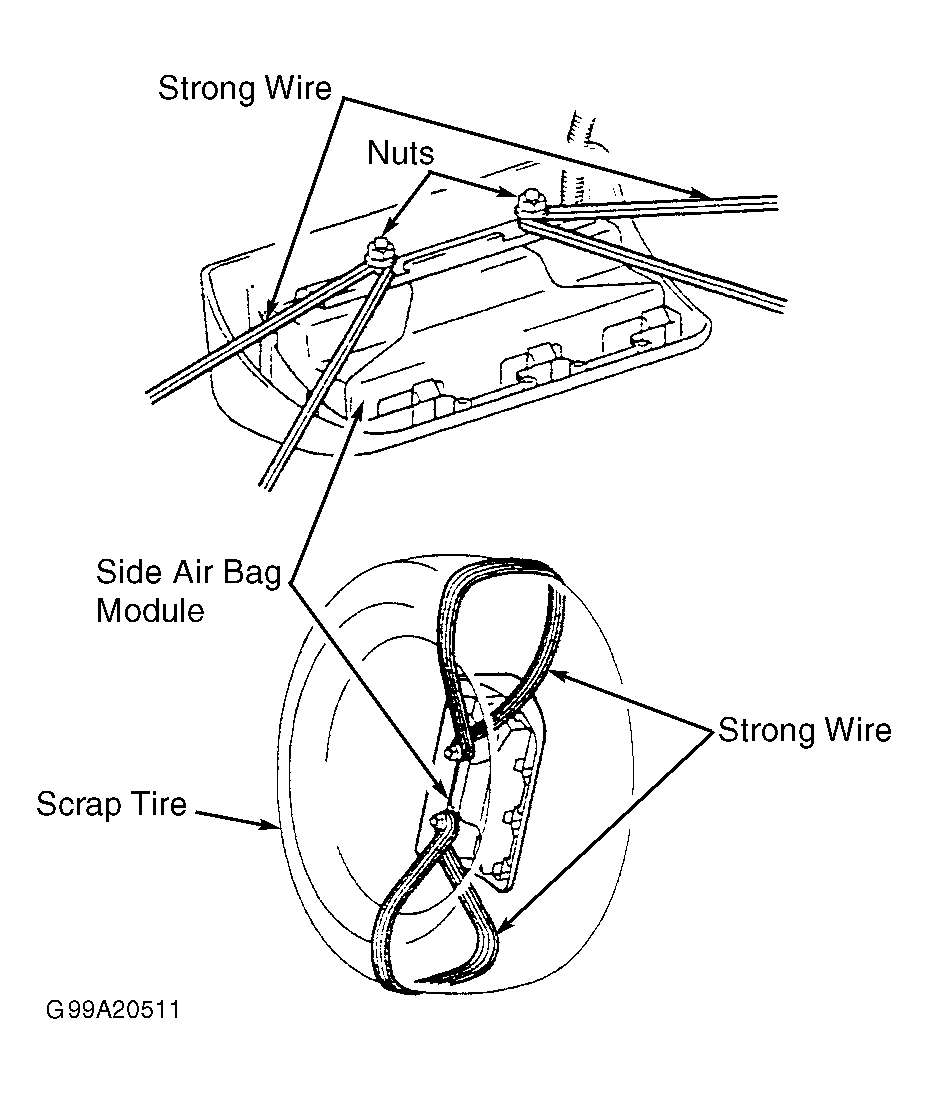

- Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING SYSTEM under DISABLING & ACTIVATING AIR BAG SYSTEM. Remove appropriate side air bag module from seat back. Install nut on each stud located on rear side of air bag module. Wrap strong wire at least twice around each stud. See Fig 1. Ensure no slack is present in wire.
- Position side air bag inside a scrap tire with air bag deployment direction facing inside and secure with strong wire. Place this tire between 4 other tires (top tire should have wheel installed). Securely tie all tires together with wire. Test Deployment Tool (09082-00700). See TESTING DEPLOYMENT TOOL .
- Connect Deployment Tools (09082-00700 and 09082-00750) to side air bag connector. Position deployment tool at least 33 feet (10 m) away from side air bag. Press activation switch to deploy side air bag. Because of heat, wait 30 minutes before handling side air bag. Seal deployed air bag module in vinyl bag and dispose of in usual manner.
