Anti-Lock Brake System - Diagnostics: Pre-Check

  1. DIAGNOSIS SYSTEM
    1. Check the indicator.
      1. When the ignition switch is turned ON, check that the ABS warning lights go on for 3 seconds.

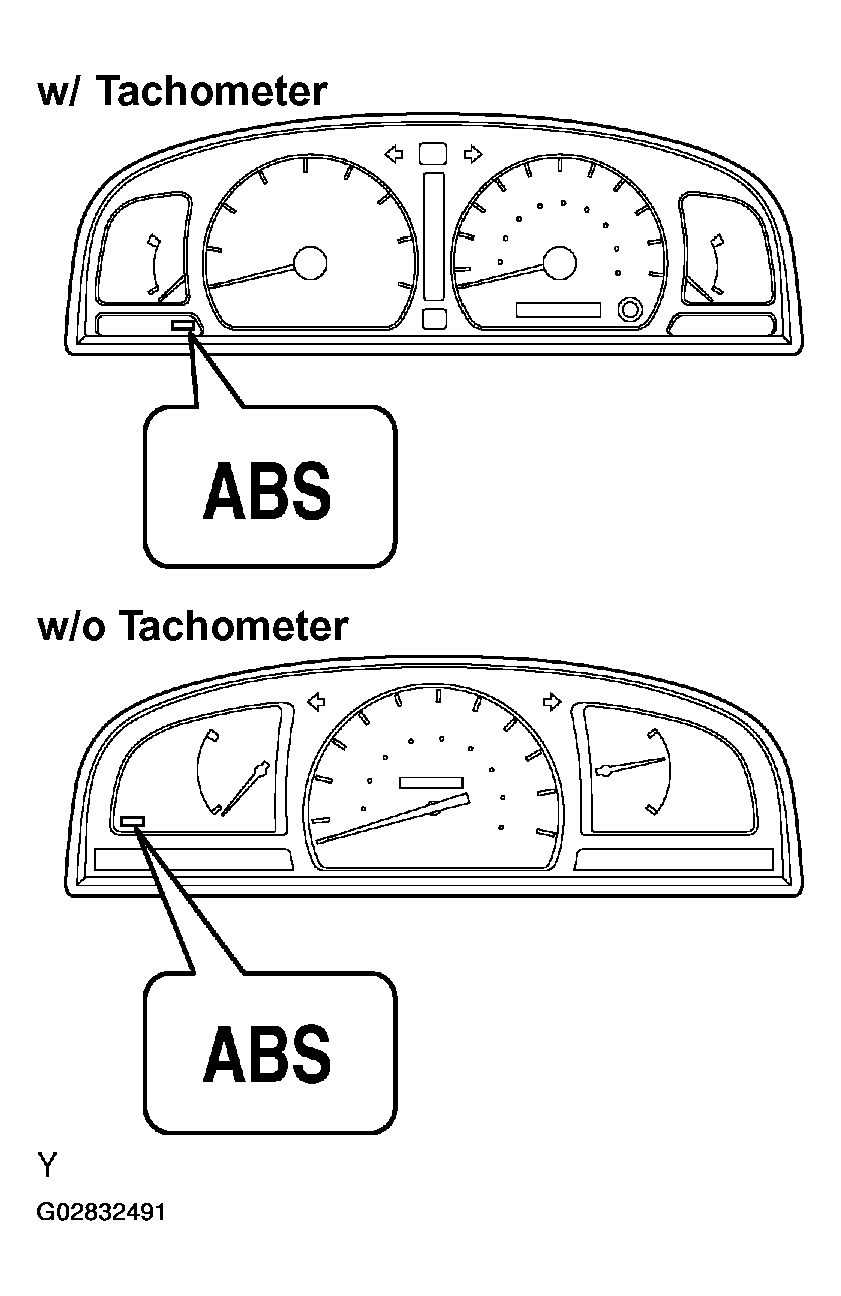

        Fig 1: Locating ABS Warning Light
        G02832491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:

        If the indicator check result is not normal, proceed to troubleshooting for the ABS warning light circuit (See ABS WARNING LIGHT CIRCUIT ).

    2. In case of not using hand-held tester:

      Check the DTC.

      1. Using SST, connect terminals Tc and CG of DLC3.
        Fig 2: Identifying DLC3
        G02832492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        SST 09843-18020 or 09843-18040

      2. Turn the ignition switch ON.
      3. Read the DTC from the ABS warning light on the combination meter.
        NOTE:
        • If no code appears, inspect the diagnostic circuit or ABS WARNING LIGHT CIRCUIT  or TC TERMINAL CIRCUIT .
        • As an example, the blinking patterns for normal code and codes 11 and 21 are shown on the left.

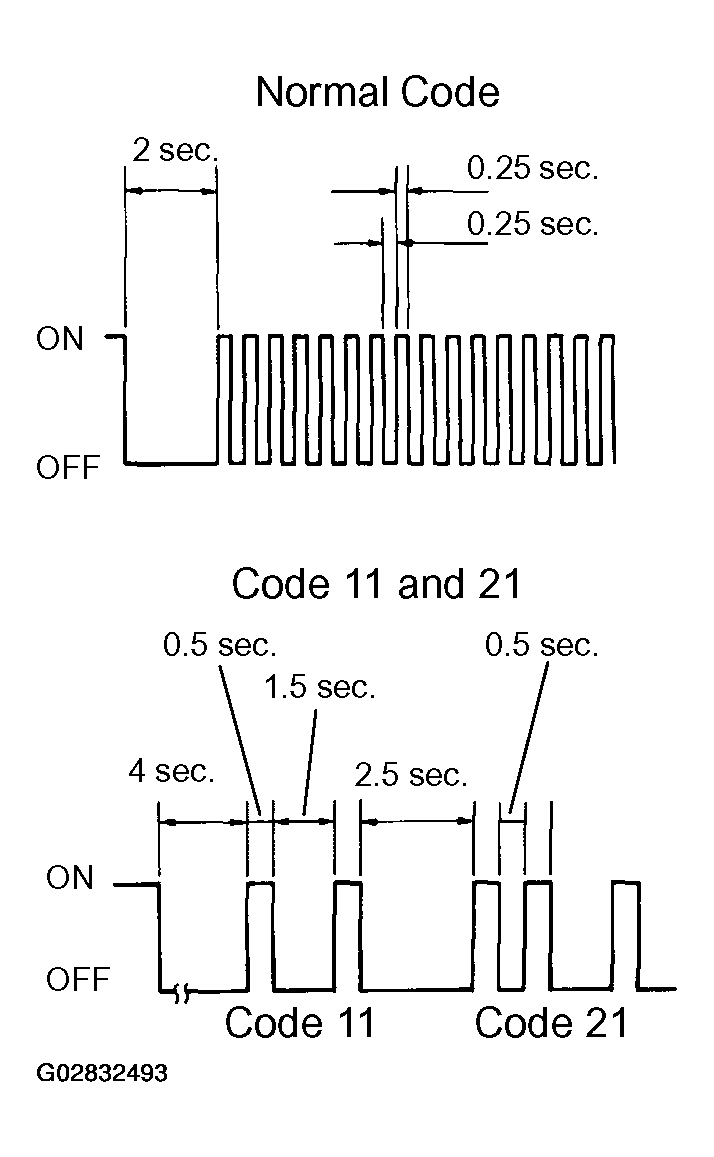

          Fig 3: Identifying Blinking Patterns For Normal Code And Codes 11 And 21
          G02832493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Codes are explained in the code table, see DIAGNOSTIC TROUBLE CODE CHART .
      5. After completing the check, disconnect terminals Tc and CG of DLC3, and turn off the display.

        If 2 or more malfunctions are indicated at the same time the lowest numbered DTC will be displayed 1st.

    3. In case of using hand-held tester: Check the DTC.
      1. Hook up the hand-held tester to the DLC3.
        Fig 4: Hooking Up Hand-Held Tester To DLC3
        G02832494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Read the DTC by following the prompts on the tester screen.
        NOTE:

        Please refer to the hand-held tester operator's manual for further details.

    4. In case of not using hand-held tester: Clear the DTC.
      1. Using SST, connect terminals Tc and CG of DLC3.

        SST 09843-18020 or 09843-18040

      2. Turn the ignition switch ON.
      3. NOTE:

        Disconnecting the battery cable during repairs will not erase the DTC in the ECU.

      4. Clear the DTC stored in ECU by depressing the brake pedal 8 or more times within 5 seconds.
      5. Fig 5: Depressing Brake Pedal
        G02832495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      6. Check that the warning light shows the normal code.
      7. Remove the SST from the terminals of DLC3.

        SST 09843-18020 or 09843-18040

    5. In case of using hand-held tester: Clear the DTC.
      1. Hook up the hand-held tester to the DLC3.

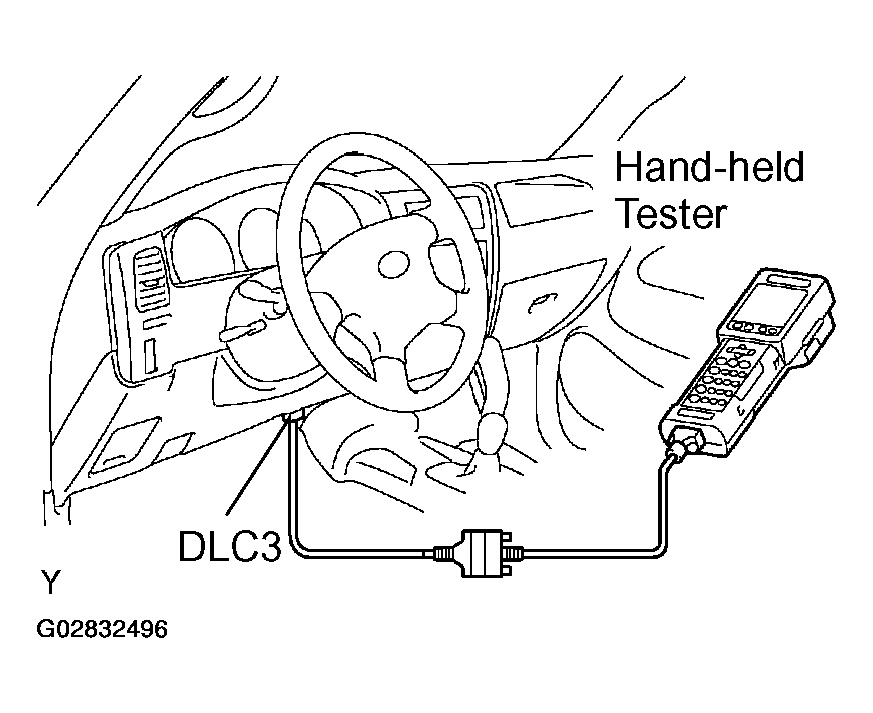

        Fig 6: Hooking Up Hand-Held Tester To DLC3
        G02832496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Turn the ignition switch ON.
      3. Operate the hand-held tester to erase the codes. (See hand-held tester operator's manual.)
    6. (Reference): Using break-out-box and hand-held tester, measure the ECU terminal values.
      1. Turn the ignition switch OFF.
      2. Hook up the break-out-box and hand-held tester to the vehicle.
      3. Fig 7: Hooking Up The Break-Out-Box And Hand-Held Tester
        G02832497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Turn the ignition switch ON.
      5. Read the ECU input/output values by following the prompts on the tester screen.
      NOTE:
      • Hand-held tester has a "Snapshot" function. This records the measured values and is effective in the diagnosis of intermittent problems.
      • Please refer to the hand-held tester/break-out-box operator's manual for further details.
  2. SENSOR SIGNAL CHECK (TEST MODE)
    NOTE:

    If the ignition switch is turned from ON to ACC or LOCK during test mode, DTC will be erased.

    1. In case of not using hand-held tester:

      Check the sensor signal.

      1. Turn the ignition switch OFF.
      2. Using SST, connect terminals Ts and CG of DLC3.
        Fig 8: Connecting Terminals TS And CG Of DLC3 Using SST
        G02832498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        SST 09843-18020

      3. Start the engine.
      4. Check that the ABS warning light blinks.
        Fig 9: ABS Warning Light Blinking Pattern
        G02832499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:

        If the ABS warning light does not blink, inspect the ABS WARNING LIGHT CIRCUIT  and TS TERMINAL CIRCUIT .

      5. Keep the vehicle in the stationary condition on the flat place for 6 sec. or more.
      6. Shift the transfer lever in L4 position.
      7. Shift the transfer lever in H position.
      8. Drive vehicle straight forward.

        When driving the vehicle with the speed faster than 45 km/h (28 mph) for several seconds, check that the ABS warning light comes off.

        NOTE:

        There is a case that the sensor check is not completed if the vehicle has its rear wheels spun or its steering wheel steered during this check.

      9. Stop the vehicle.
      10. Check ABS warning light lights up when the rear diff. lock indicator light lights up.
      11. Using SST, connect terminals Tc and CG of DLC3.

        SST 09843-18020 or 09843-18040

      12. Read the number of blinks of the ABS warning light.
        NOTE:
        • See the list of DTC in Fig 12.
        • If every sensor is normal, a normal code is output (A cycle of 0.25 sec. ON and 0.25 sec. OFF is repeated).
        • If 2 or more malfunctions are indicated at the same time, the lowest numbered code will be displayed 1st.

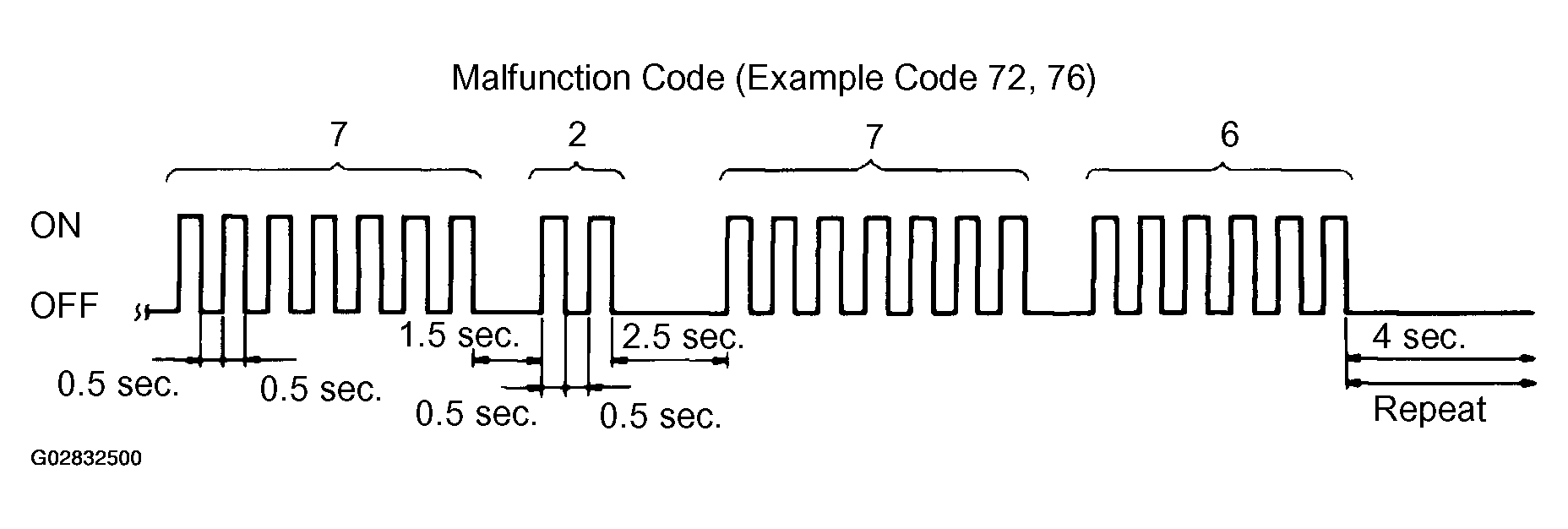

          Fig 10: Malfunctions Code Blinking Pattern
          G02832500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      13. After doing the check, disconnect the SST from terminals of DLC3, and turn the ignition switch OFF.

        SST 09843-18020 or 09843-18040

    2. In case of using hand-held tester:

      Check the sensor signal.

      1. Hook up the hand-held tester to the DLC3.

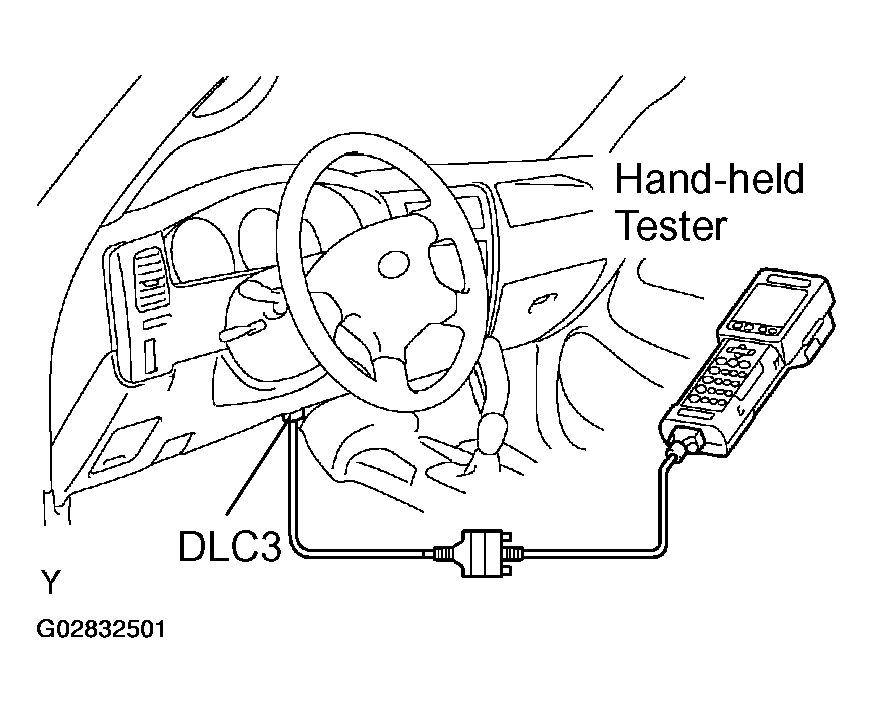

        Fig 11: Hooking Up Hand-Held Tester To DLC3
        G02832501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Do step  3 to  9 .
      3. Read the DTC by following the prompts on the tester screen.
        NOTE:

        Please refer to the hand-held tester operator's manual for further details.

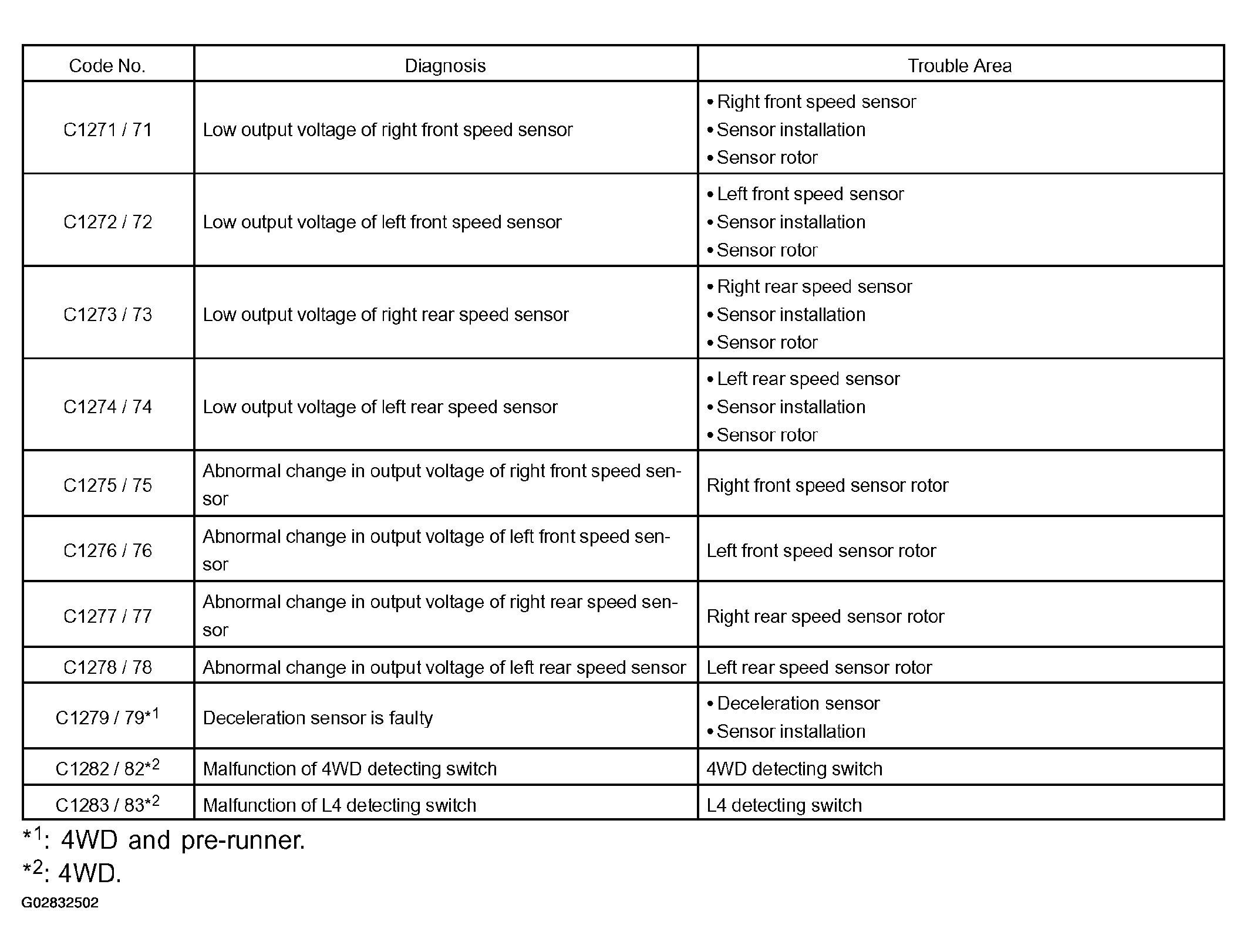

      DTC Of Sensor Check Function:

      Fig 12: DTC Sensor Checking Specifications
      G02832502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. DECELERATION SENSOR OPERATION DIAGNOSIS SYSTEM
    WARNING: While checking the deceleration sensor operating diagnosis system, ABS does not work and brake system works as a conventional brake system.
  4. 4WD AND PRE-RUNNER: ABS DECELERATION SENSOR CHECK
    1. Connect 3 dry batteries of 1.5 V in series.
    2. Connect VGS terminal to the batteries' positive (+) terminal, and GGND terminal to the batteries' negative (-) terminal, apply about 4.5 V between VGS and GGND terminals.

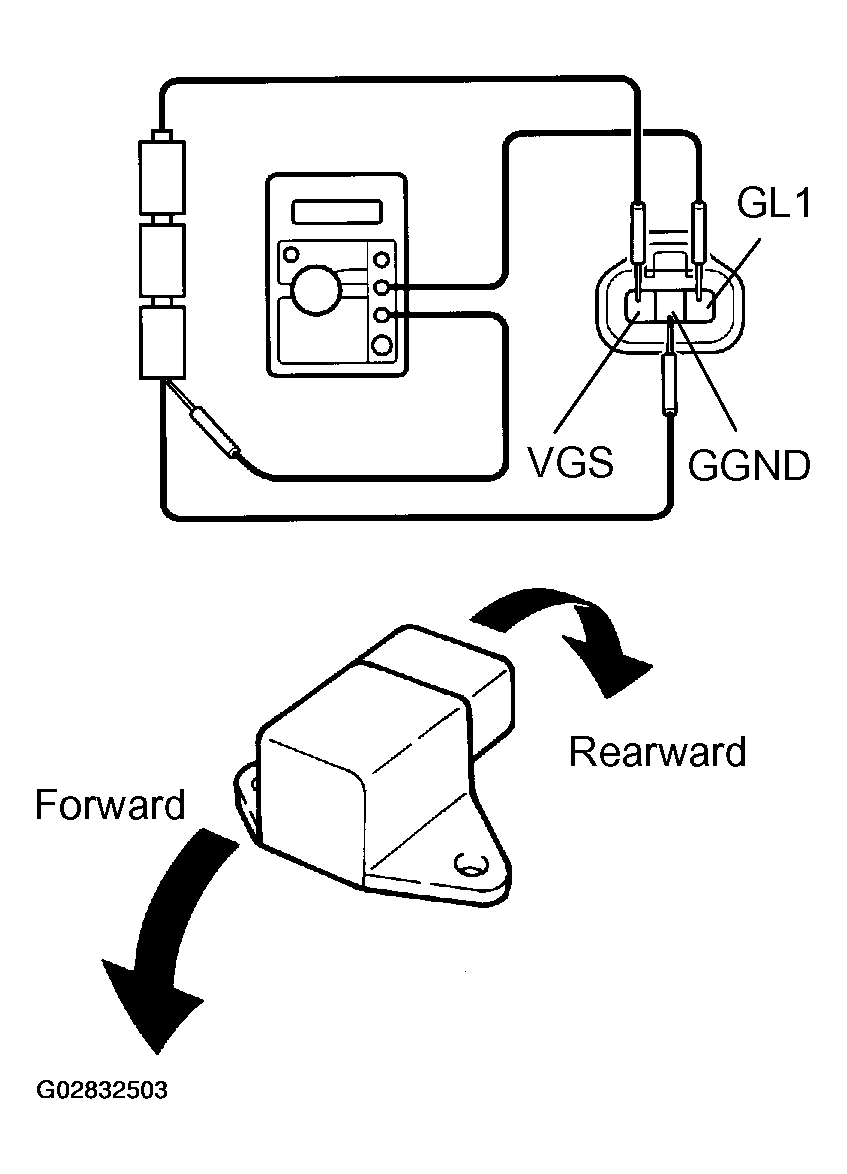

      Fig 13: Connecting VGS Terminal To Batteries' Positive (+) Terminal, And GGND Terminal To Batteries' Negative (-) Terminal
      G02832503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CAUTION: Do not apply voltage of 6 V or more to terminals VGS and GGND.
    3. Check the output voltage of GL1 terminals.
      OUTPUT VOLTAGE SPECIFICATION

      Symbols Condition Standard Value
      GL1 Horizontal About 2.3 V
      GL1 Lean forward 0.4 V-about 2.3 V
      GL1 Lean rearward About 2.3 V-4.1 V
      NOTE:
      • If the sensor is tilted too much it may show the wrong value.
      • If dropped, the sensor should be replaced with a new one.
      • The sensor removed from the vehicle should not be placed upside down.
