Inspection Procedure

  1. Check voltage between each terminal of the Power Seat Control Switch and SGND of Seat Position Control ECU connector.

    PREPARATION:

    Remove Seat Position Control ECU with connectors still connected.

    CHECK:

    Measure voltage between each terminal of the Power Seat Control Switch and SGND of Seat Position Control ECU connector. (The illustration shows inspection of the reclining as an example.)

    OK:

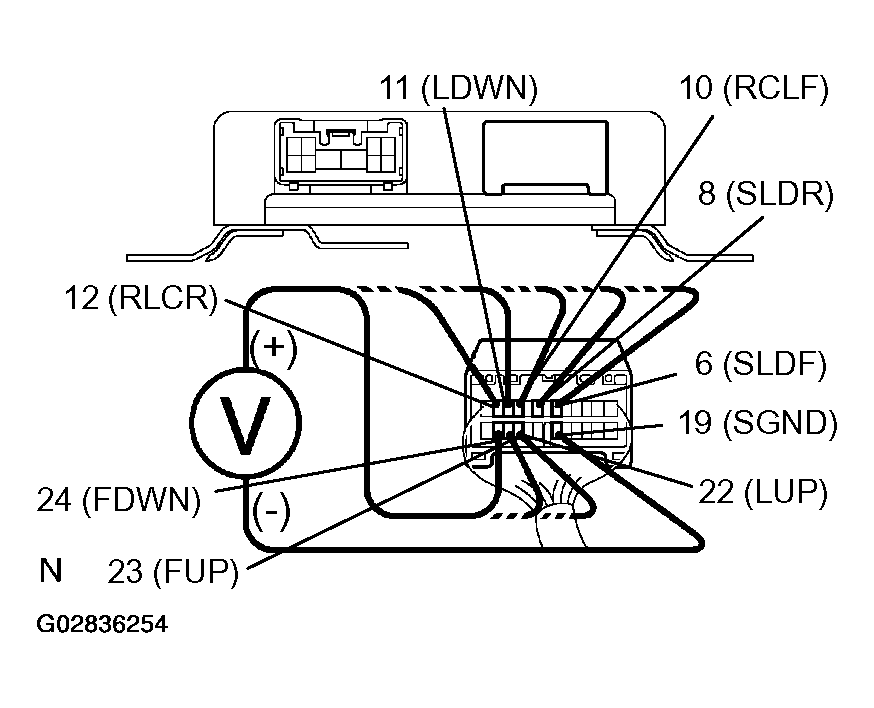

    Fig 1: Checking Voltage Between Each Terminal Of Power Seat Control Switch And SGND Of Seat Position Control ECU Connector
    G02836254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TERMINALS VOLTAGE REFERENCE

    At each terminal with switch ON 0 V
    At each terminal with switch OFF 10-14 V
    1. OK: Proceed to next circuit inspection shown in problem symptom table (See  PROBLEM SYMPTOMS TABLE  ).
    2. NG: Go to next step.
  2. Check power seat control switch.

    PREPARATION:

    1. Remove seat.
    2. Disconnect power seat control switch.

      CHECK:

      Check continuity between terminals when switch operated.

      OK:

      Driver's seat slide switch:

      TERMINALS CONTINUITY REFERENCE (DRIVER'S SEAT SLIDE SWITCH)

      Switch position Tester connection Specified condition
      FRONT 1-9 Continuity
      BACK 1-6 Continuity

      Driver's seat front vertical switch:

      TERMINALS CONTINUITY REFERENCE (DRIVER'S SEAT FRONT VERTICAL SWITCH)

      Switch position Tester connection Specified condition
      UP 1-5 Continuity
      DOWN 1-10 Continuity

      Driver's seat lifter switch:

      TERMINALS CONTINUITY REFERENCE (DRIVER'S SEAT LIFTER SWITCH)

      Switch position Tester connection Specified condition
      UP 1-8 Continuity
      DOWN 1-7 Continuity

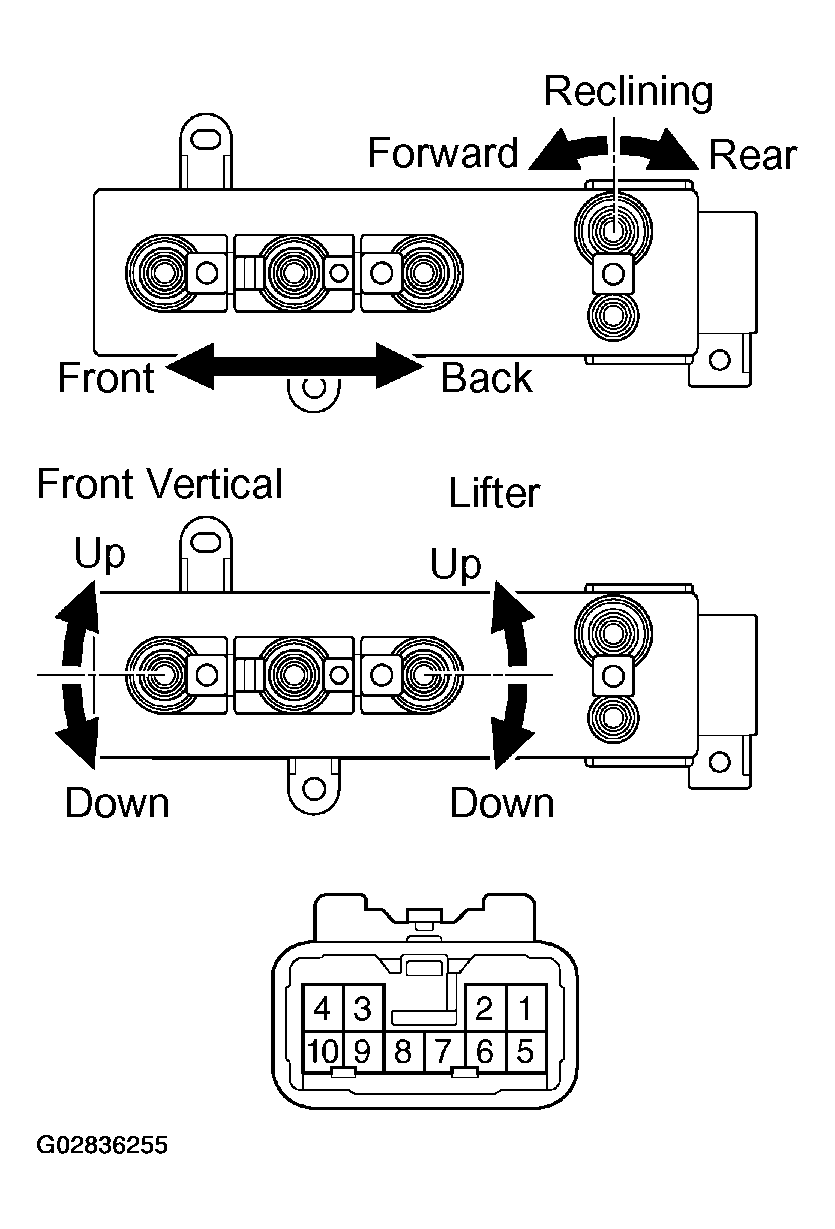

      Fig 2: Checking Power Seat Control Switch
      G02836255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Driver's seat reclining switch:

      TERMINALS CONTINUITY REFERENCE (DRIVER'S SEAT RECLINING SWITCH)

      Switch position Tester connection Specified condition
      FORWARD 1-3 Continuity
      REAR 1-2 Continuity

      Passenger's slide switch:

      TERMINALS CONTINUITY REFERENCE (PASSENGER'S SLIDE SWITCH)

      Switch position Tester connection Specified condition
      FRONT 1-9 Continuity
      BACK 1-6 Continuity

      Passenger's front vertical switch:

      TERMINALS CONTINUITY REFERENCE (PASSENGER'S FRONT VERTICAL SWITCH)

      Switch position Tester connection Specified condition
      UP 1-10 Continuity
      DOWN 1-5 Continuity

      Passenger's lifter switch:

      TERMINALS CONTINUITY REFERENCE (PASSENGER'S LIFTER SWITCH)

      Switch position Tester connection Specified condition
      UP 1-7 Continuity
      DOWN 1-8 Continuity

      Passenger's reclining switch:

      TERMINALS CONTINUITY REFERENCE (PASSENGER'S RECLINING SWITCH)

      Switch position Tester connection Specified condition
      FORWARD 1-3 Continuity
      REAR 1-2 Continuity
      1. NG: Replace power seat control switch.
      2. OK: Go to next step.
    3. Check harness and connectors between Seat Position Control ECU and power seat control switch (See  HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS  ).
      1. NG: Repair or replace harness or connector.
      2. OK: Check and replace Seat Position Control ECU.
