Output Speed Sensor: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify O-ring is installed into position. See Figure .
  2. Install and tighten input speed sensor to 20 ft. lbs. (27 N.m).

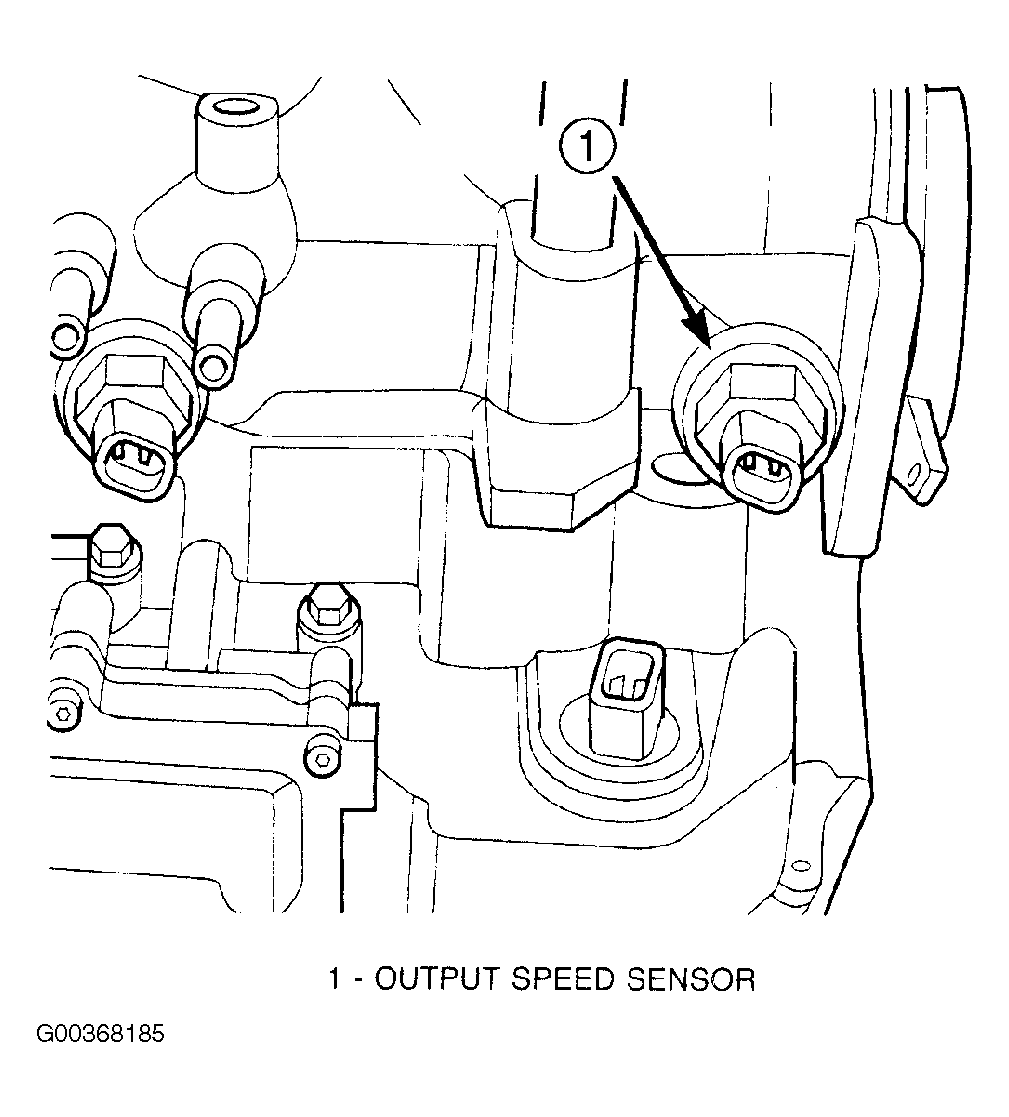

  3. Connect speed sensor connector. See Figure .
  4. Connect battery negative cable.
