Installation - Lower

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

Check for missing grommets or plastic nuts (Fig 1 ).

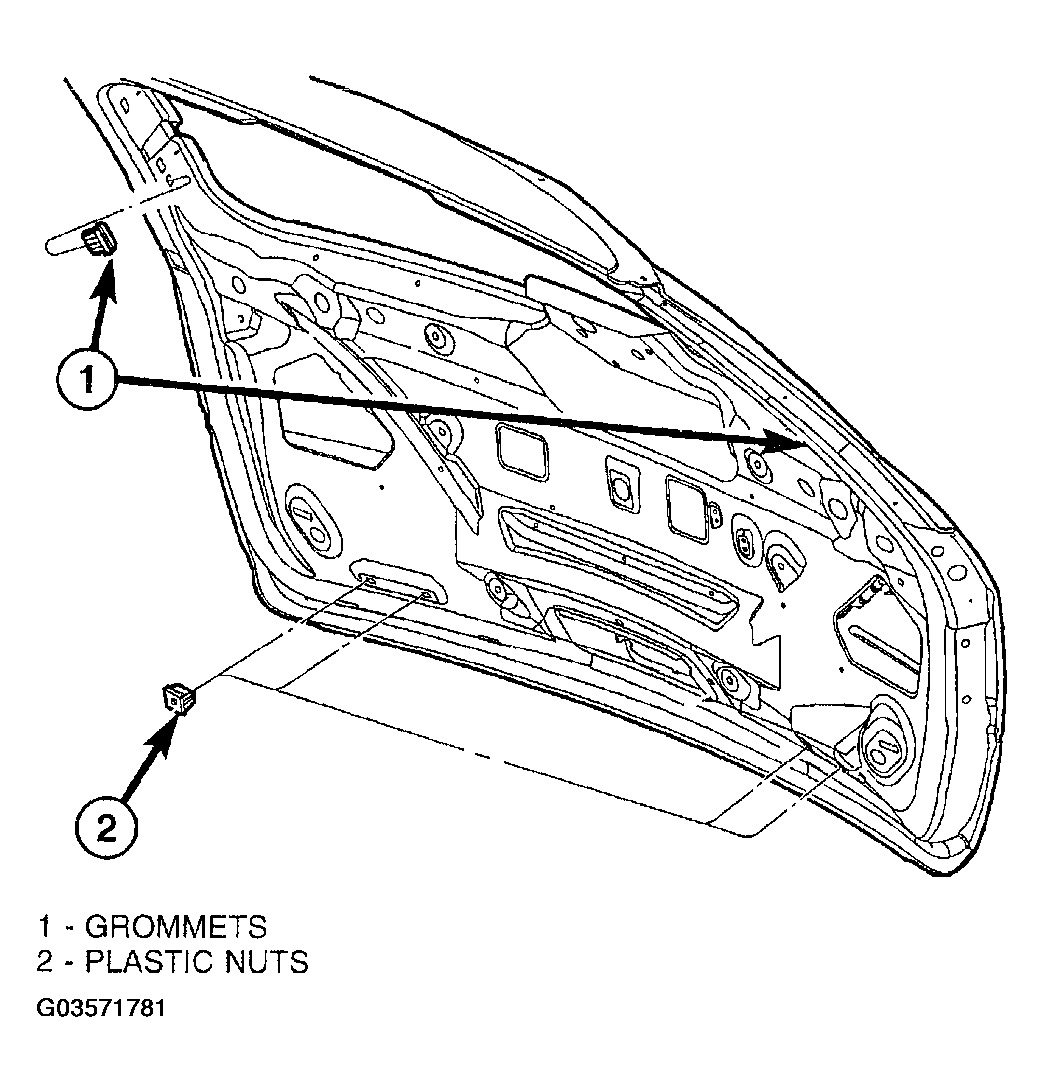

Fig 1: Identifying Liftgate Trim Panel Grommets And Plastic Nuts

Courtesy of DAIMLERCHRYSLER CORP.

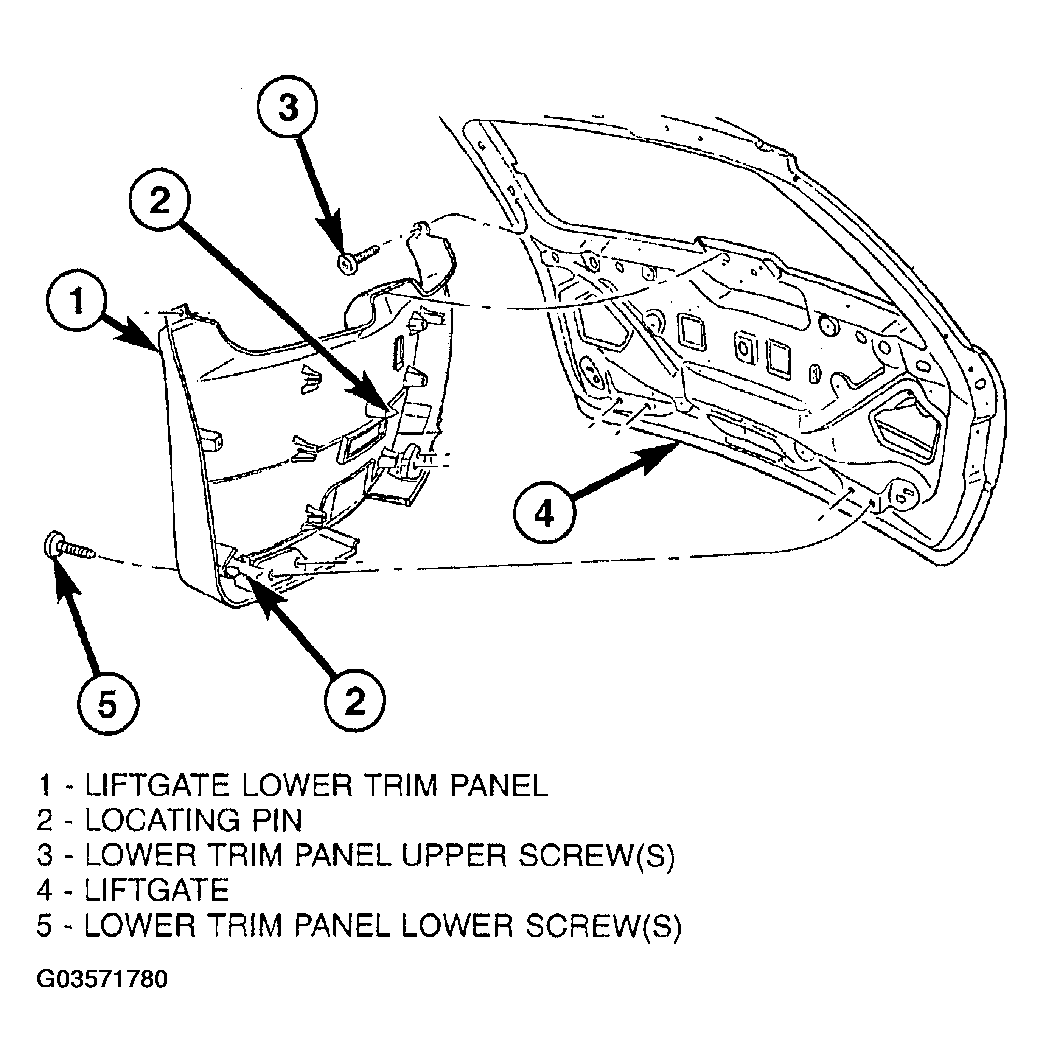

Place lower trim panel into position (Figure ).
Push trim panel against liftgate to engage pins and grommets.
Install six (6) lower screws attaching trim panel.
Install two (2) upper screws attaching trim panel.
Install liftgate upper trim panel.
Close liftgate.
