Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

Using Toyota hand-held tester or scan tool, read FREEZE FRAME data. Freeze frame data records engine conditions when malfunction is detected. When the ENGINE RUN TIME in the freeze frame data is less than 200 seconds, carefully check the vapor pressure sensor.

For EVAP system component locations, see Fig 1. For EVAP emission control system wiring diagram, see Fig 2. For diagnosis and repair procedure using Toyota hand-held tester, see Fig 3-Fig 23 . For diagnosis and repair procedure using OBD II scan tool, see Fig 24-Fig 31 .

When access to, or replacement of ECM is necessary, Engine Control Module (ECM) is located behind glove box. See Figure. For ECM connector terminal view, see Figure. For vacuum or EVAP hose routing, see VACUUM DIAGRAMS article. For testing of systems or components, see BASIC DIAGNOSTIC PROCEDURES - 4-CYLINDER article or SYSTEM & COMPONENT TESTING - 4-CYLINDER article. For adjustments, see ON-VEHICLE ADJUSTMENTS - 4-CYLINDER article. For removal and installation of components, see REMOVAL, OVERHAUL & INSTALLATION - 4-CYLINDER article.

Fig 1: Locating Emission System Components

G00023082

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: EVAP Emission Control System Wiring Diagram

G00236917

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: DTC P0441 & DTC P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 1-3)

G00233767

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: DTC P0441 & DTC P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 4-6)

G00233768

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: DTC P0441 & DTC P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 7-9)

G00233769

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: DTC P0441 & DTC P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 10-12)

G00233770

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: DTC P0441 & DTC P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 13-15)

G00236918

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: DTC P0441 & DTC P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 16-18)

G00236919

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

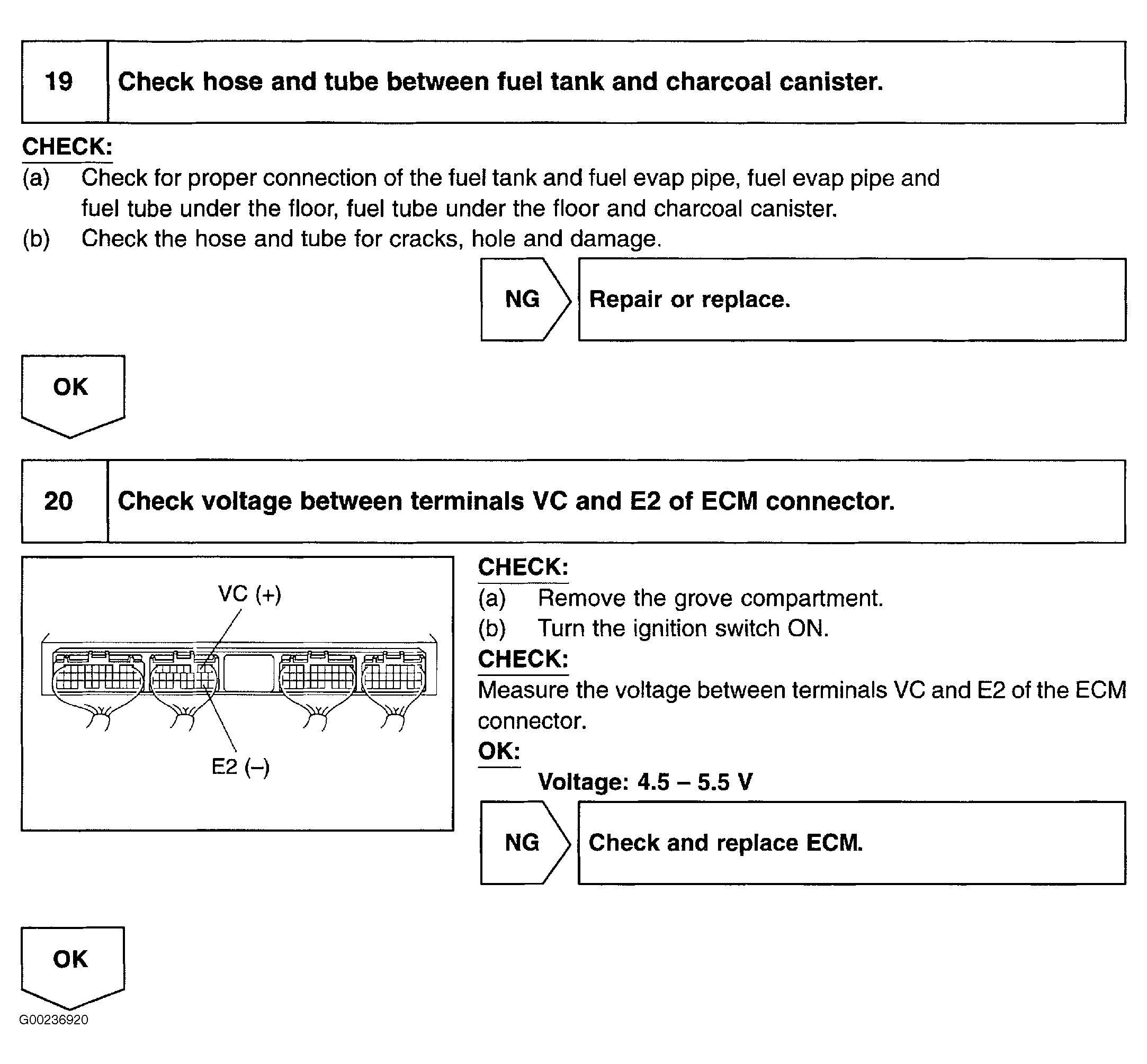

Fig 9: DTC P0441 & DTC P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 19-20)

G00236920

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

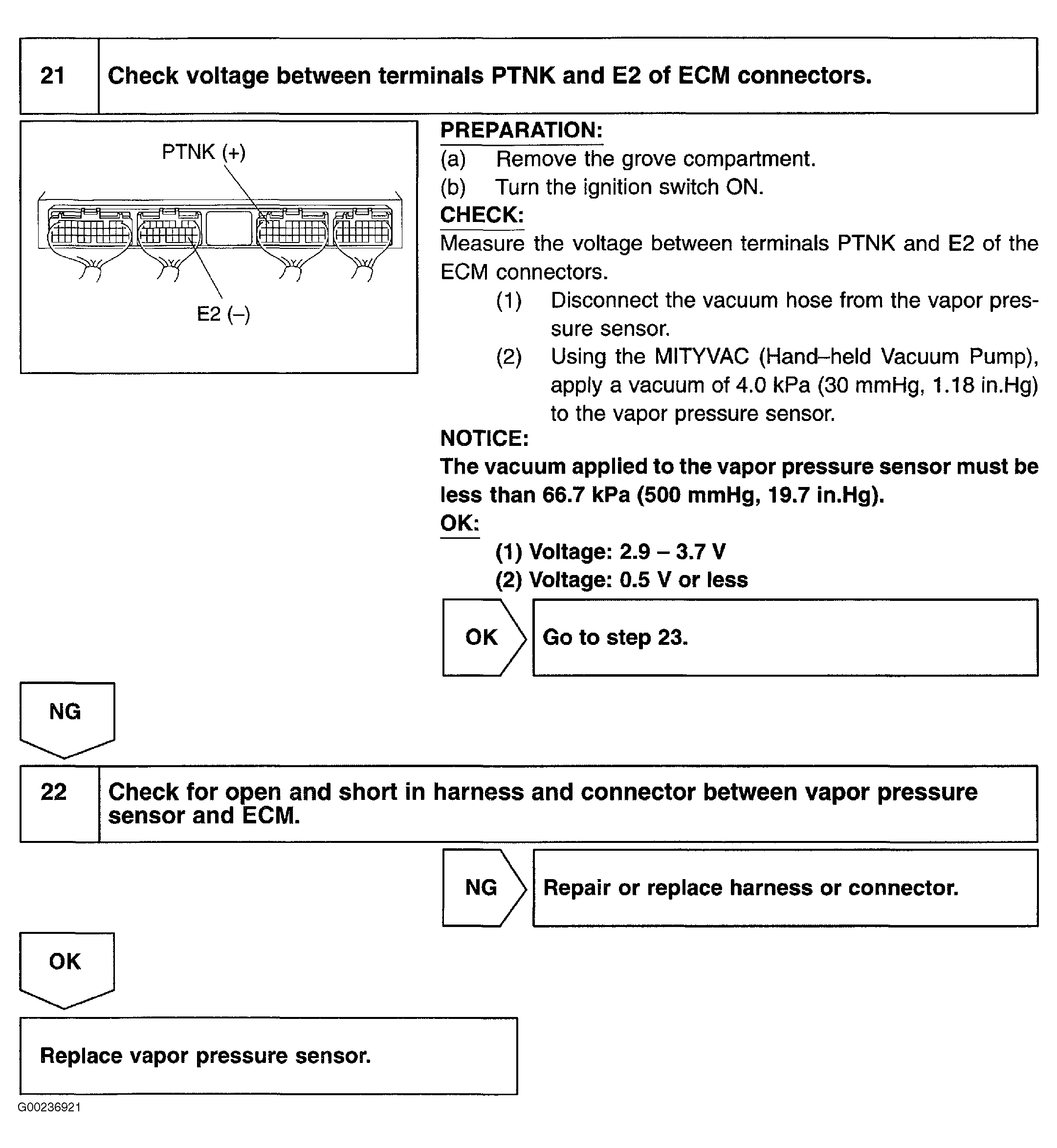

Fig 10: DTC P0441 & DTC P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 21-22)

G00236921

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: DTC P0441 & DTC P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 23-24)

G00236922

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: DTC P0441 & DTC P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 25-27)

G00236923

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: DTC P0441 & DTC P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 28-30)

G00236924

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: DTC P0441 & DTC P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 31-33)

G00236925

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: DTC P0441 & DTC P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 34-36)

G00236926

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

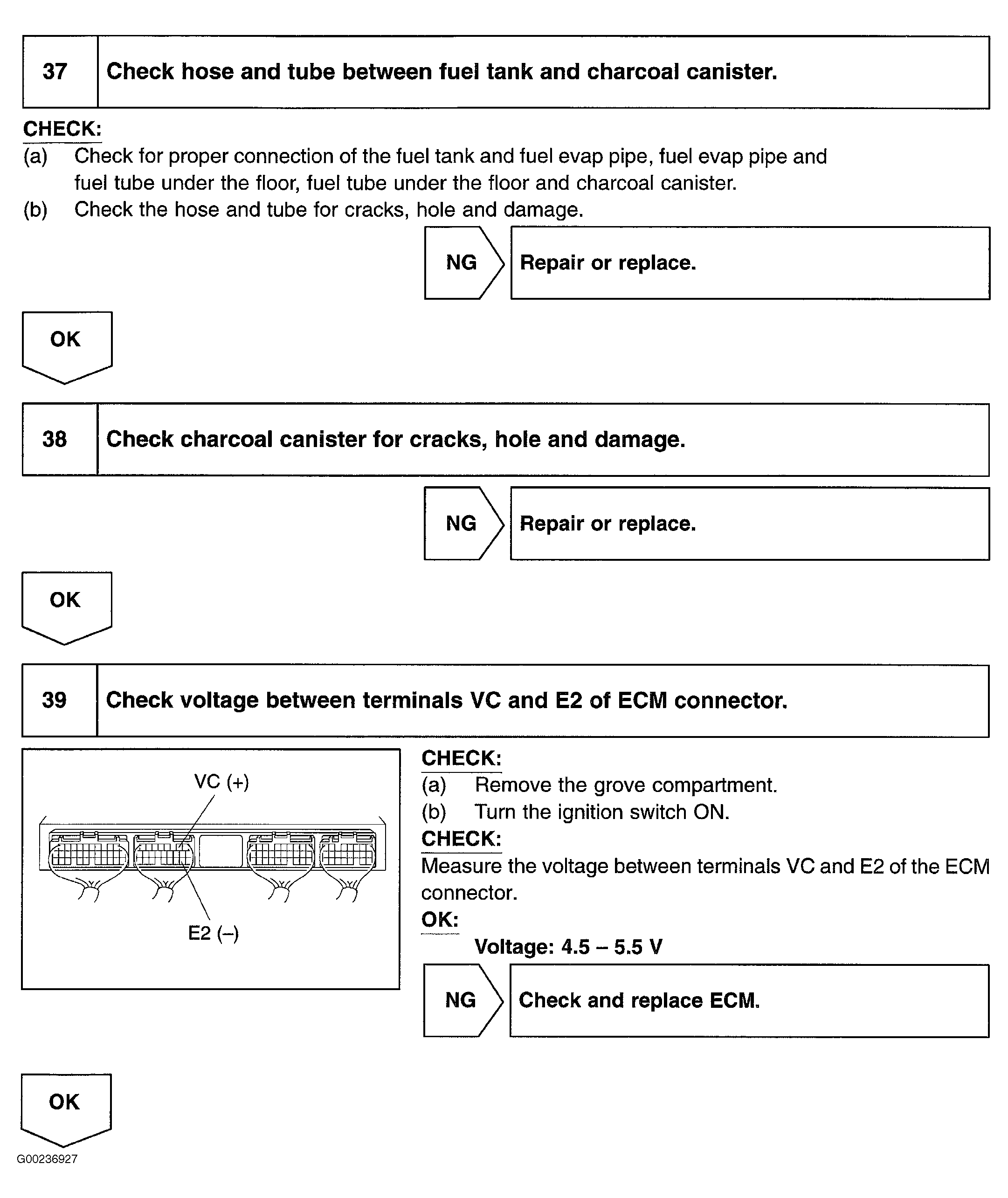

Fig 16: DTC P0441 & DTC P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 37-39)

G00236927

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

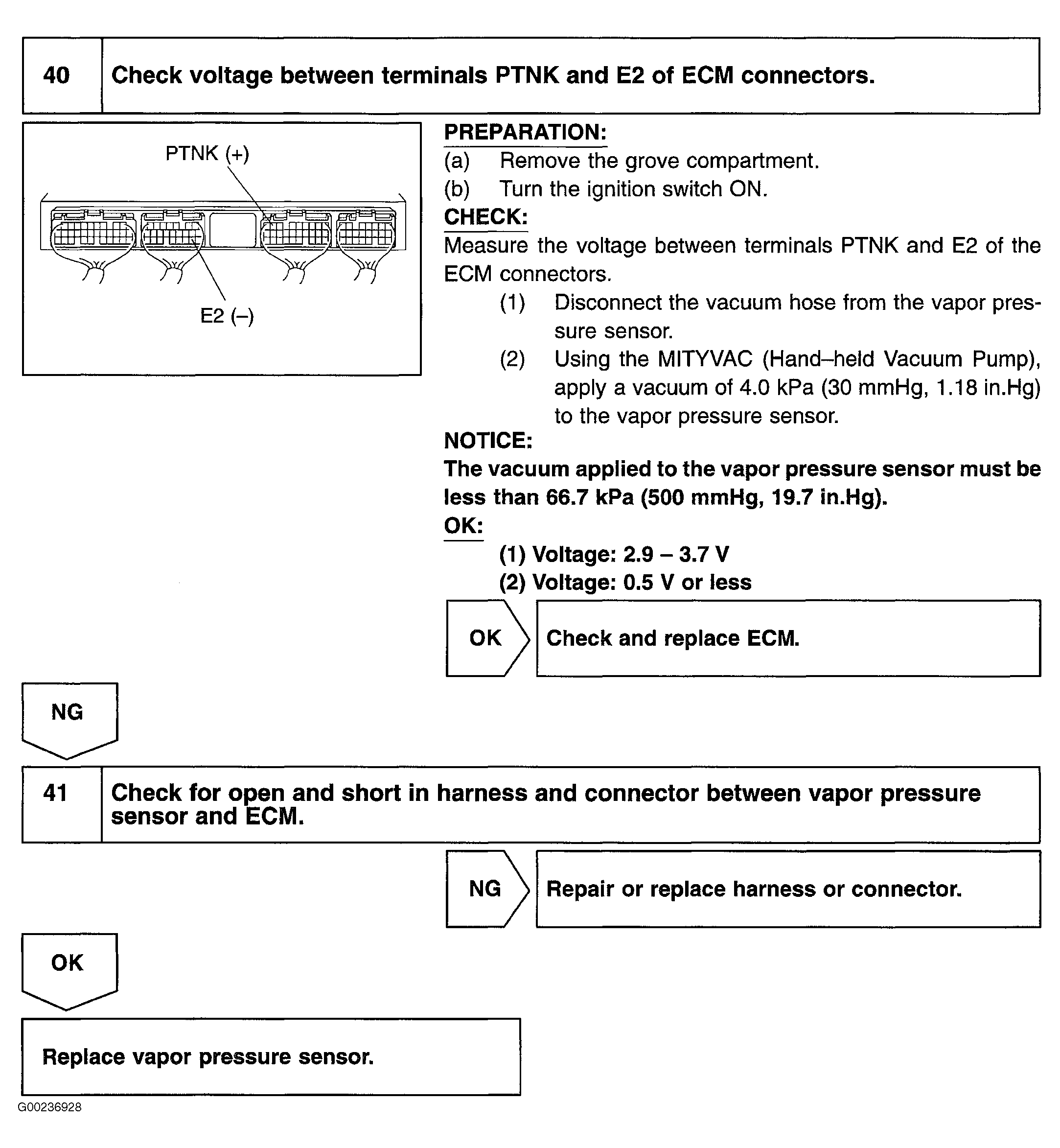

Fig 17: DTC P0441 & DTC P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 40-41)

G00236928

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: DTC P0441 & DTC P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 42-44)

G00236929

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: DTC P0441 & DTC P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 45-46)

G00236930

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: DTC P0441 & DTC P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 47-49)

G00236931

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: DTC P0441 & DTC P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 50-52)

G00236932

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: DTC P0441 & DTC P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 53-55)

G00236933

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

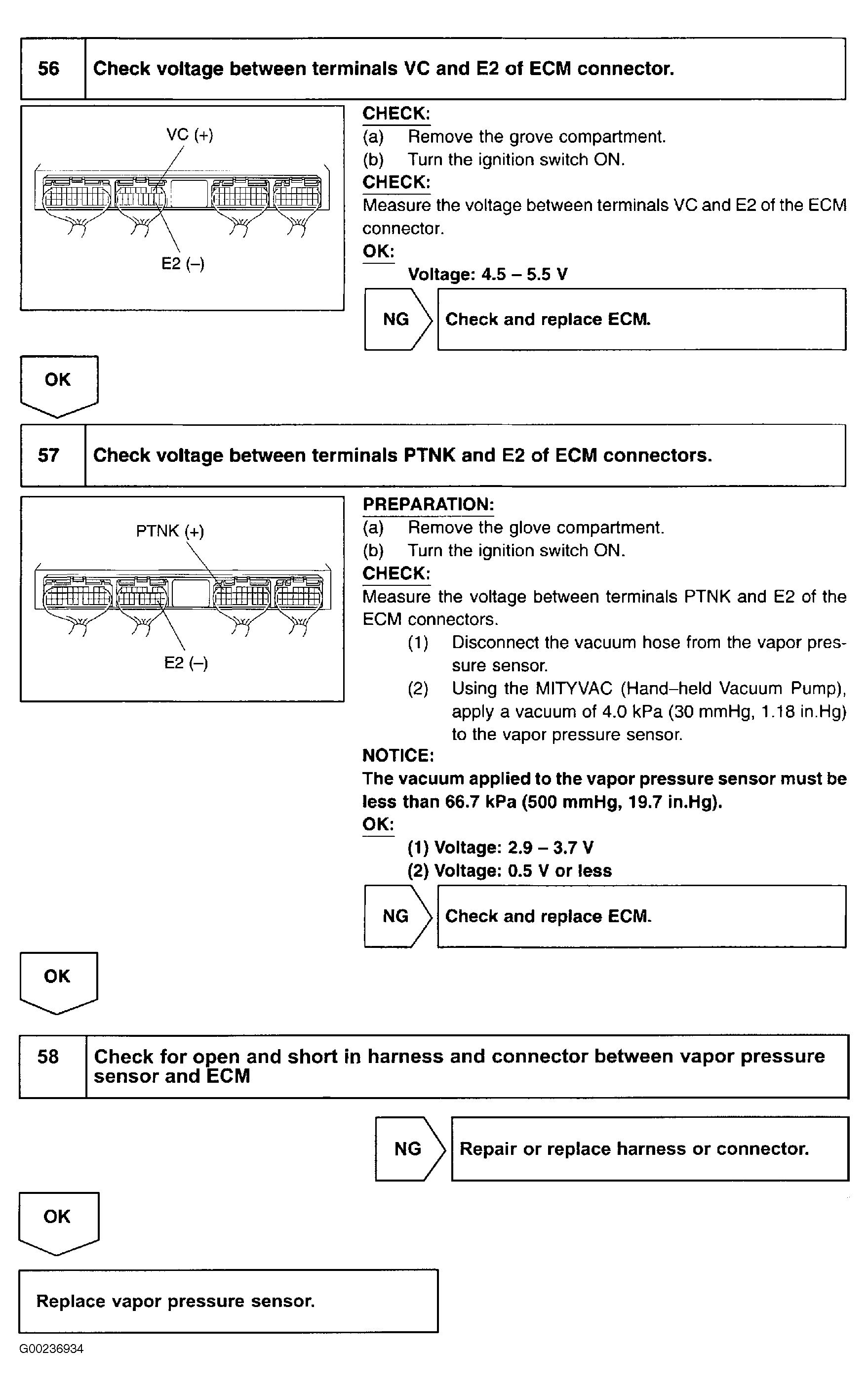

Fig 23: DTC P0441 & DTC P0446 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 56-58)

G00236934

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 24: DTC P0441 & DTC P0446 Diagnostic Procedure Using OBD-II Scan Tool (Steps 1-3)

G00236935

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 25: DTC P0441 & DTC P0446 Diagnostic Procedure Using OBD-II Scan Tool (Steps 4-6)

G00236936

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 26: DTC P0441 & DTC P0446 Diagnostic Procedure Using OBD-II Scan Tool (Steps 7-10)

G00236937

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

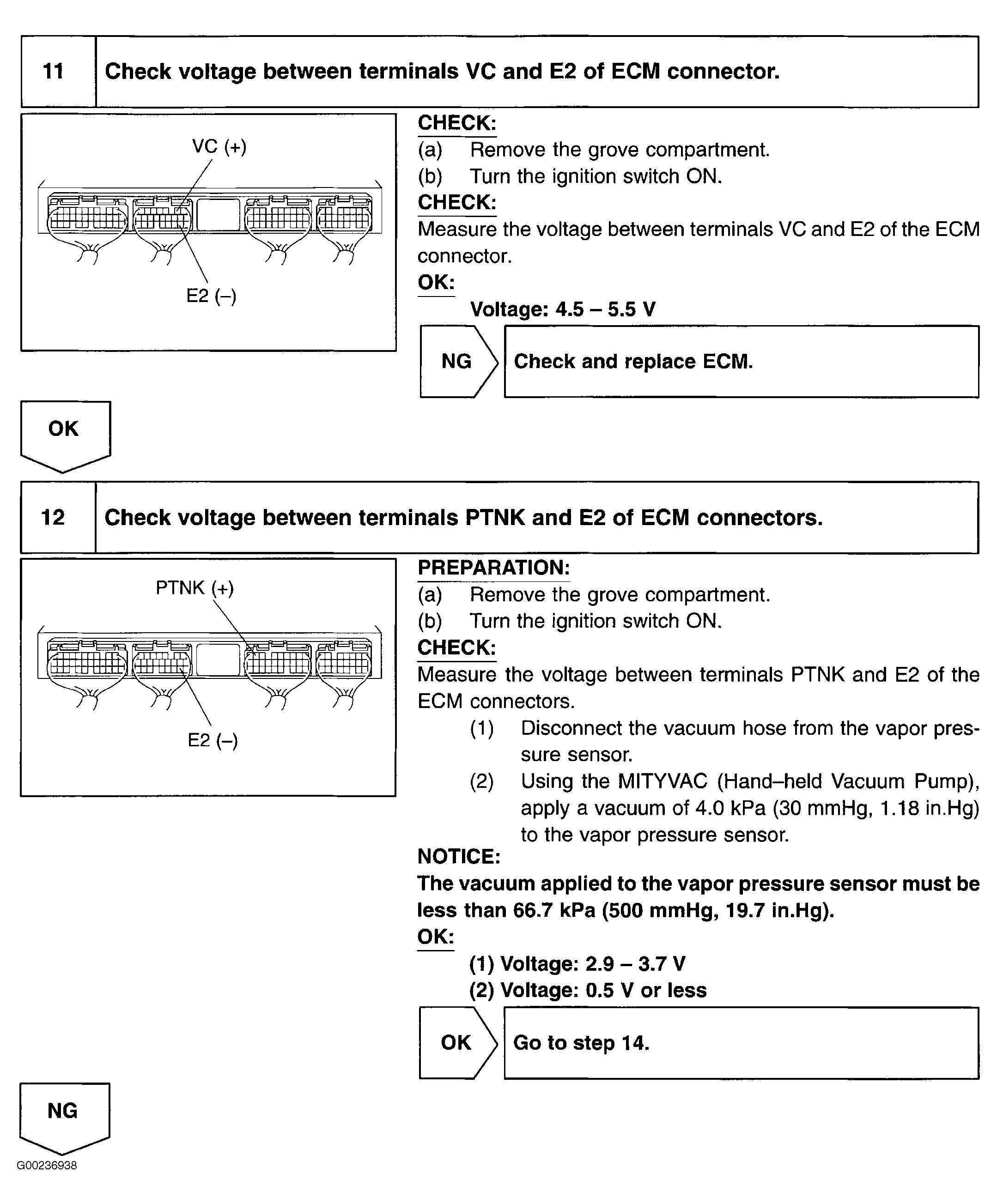

Fig 27: DTC P0441 & DTC P0446 Diagnostic Procedure Using OBD-II Scan Tool (Steps 11-12)

G00236938

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

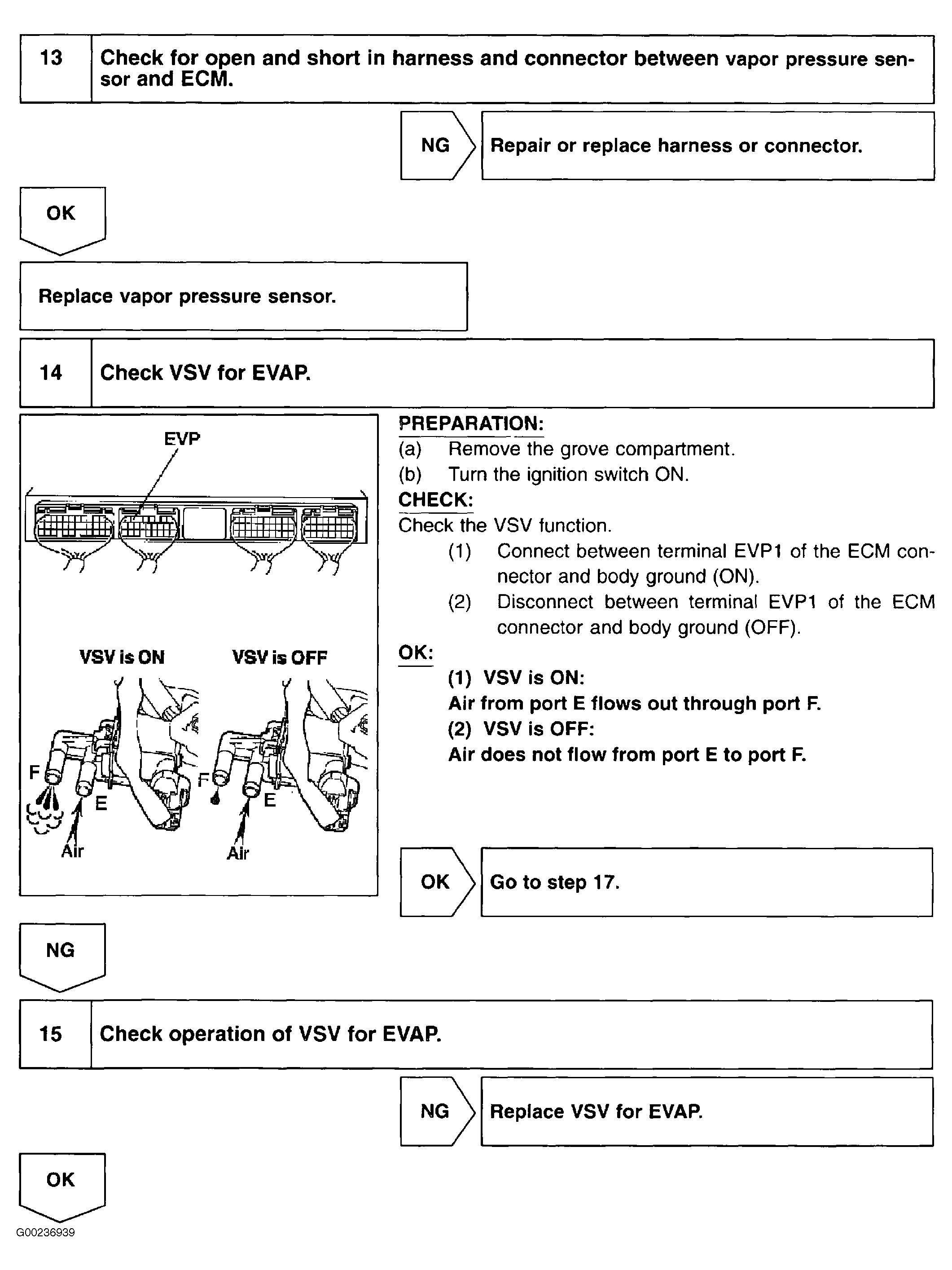

Fig 28: DTC P0441 & DTC P0446 Diagnostic Procedure Using OBD-II Scan Tool (Steps 13-15)

G00236939

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

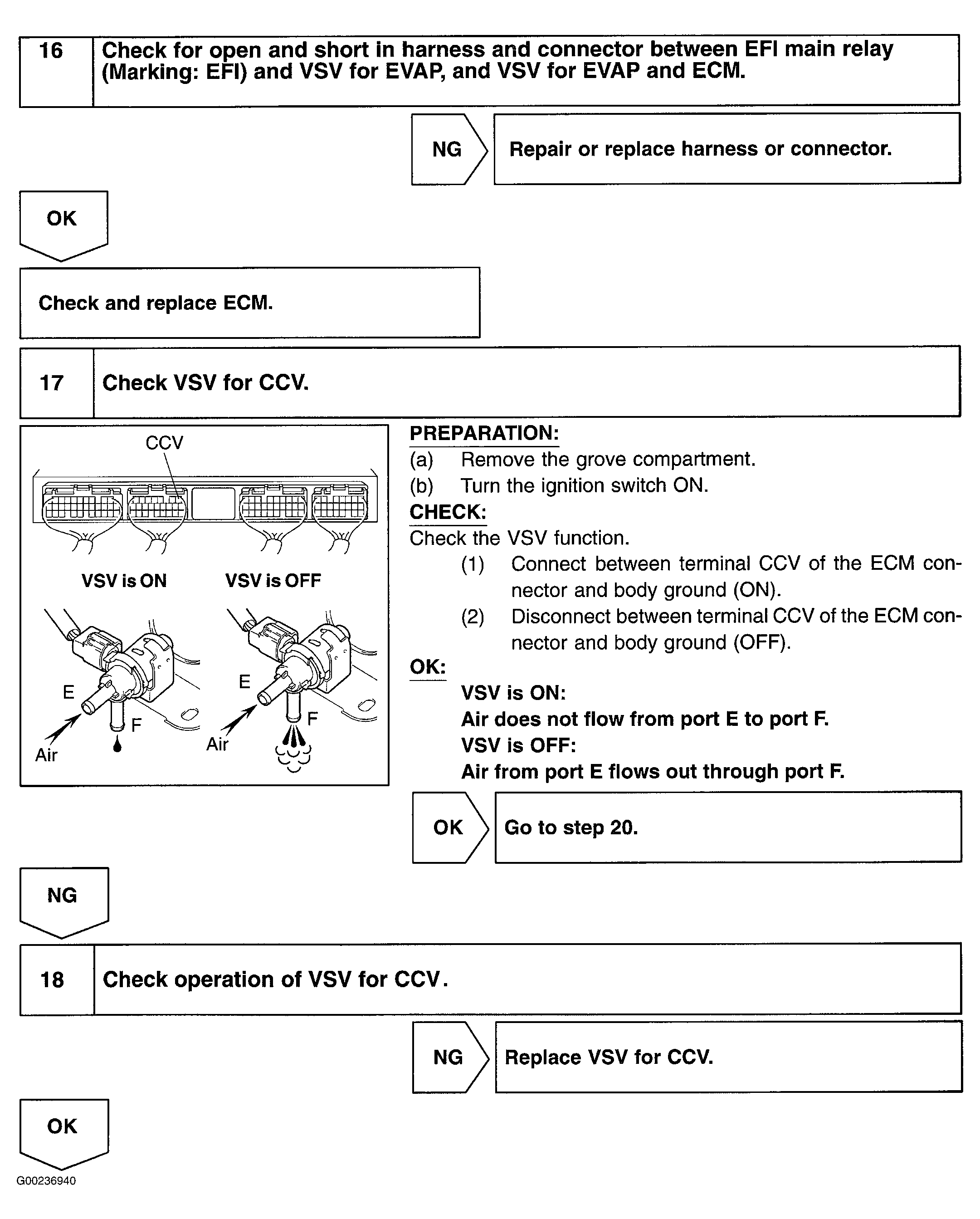

Fig 29: DTC P0441 & DTC P0446 Diagnostic Procedure Using OBD-II Scan Tool (Steps 16-18)

G00236940

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

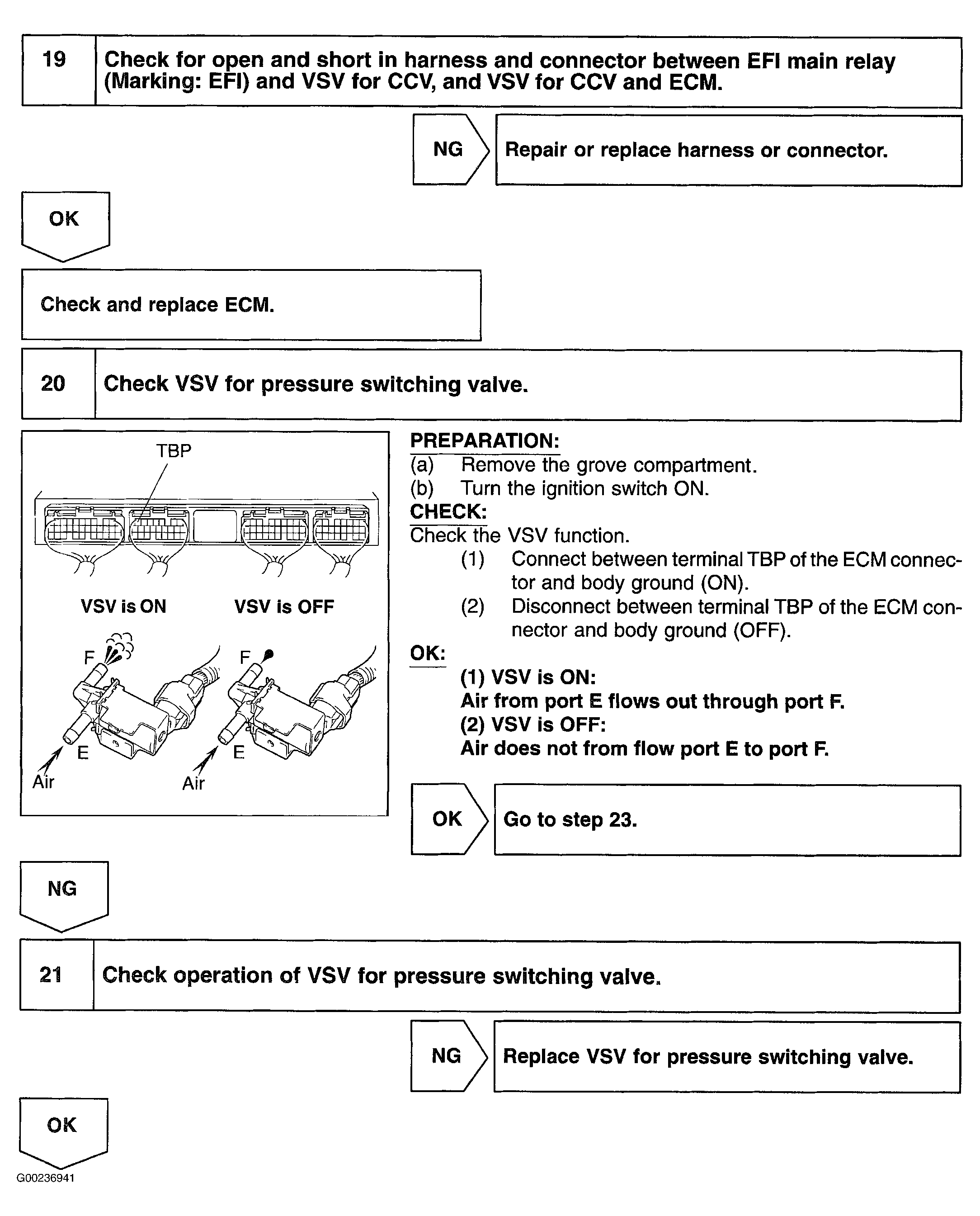

Fig 30: DTC P0441 & DTC P0446 Diagnostic Procedure Using OBD-II Scan Tool (Steps 19-21)

G00236941

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 31: DTC P0441 & DTC P0446 Diagnostic Procedure Using OBD-II Scan Tool (Steps 22-24)

G00236942

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
