- Start engine. Warm engine to normal operating temperature. Ensure idle speed is within specification. See IDLE SPEED & MIXTURE in ON-VEHICLE ADJUSTMENTS - V6 & V8 article.
- Turn ignition off. Apply parking brake and place transmission/transaxle in Neutral. Ensure A/C is off.

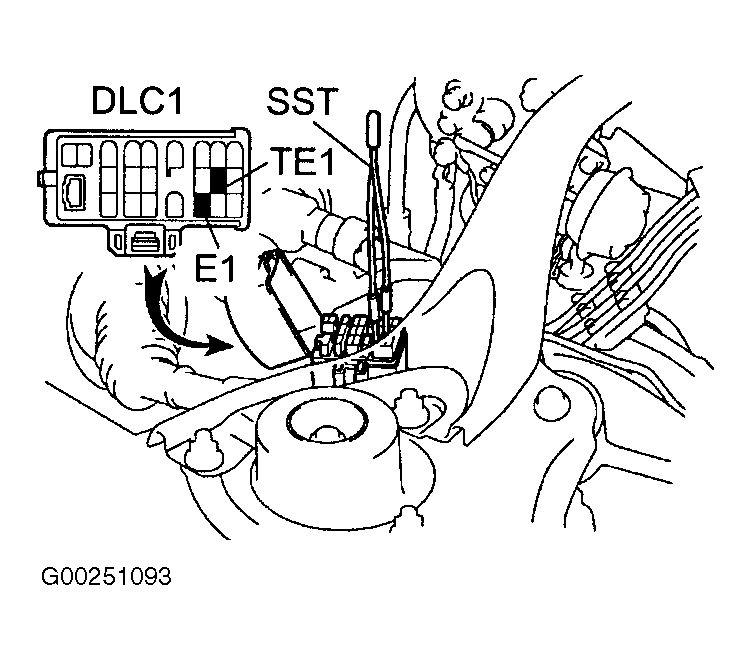

- Install Jumper Wire (SST 09843-18020) between terminals TE1 and E1 on data link connector No. 1 located at passenger's side of engine compartment, near strut tower. See Figure. Go to next step.
- Start engine and note engine speed. After engine speed is kept at 900-1300 RPM for 10 seconds, ensure engine returns to idle speed. Turn ignition off.

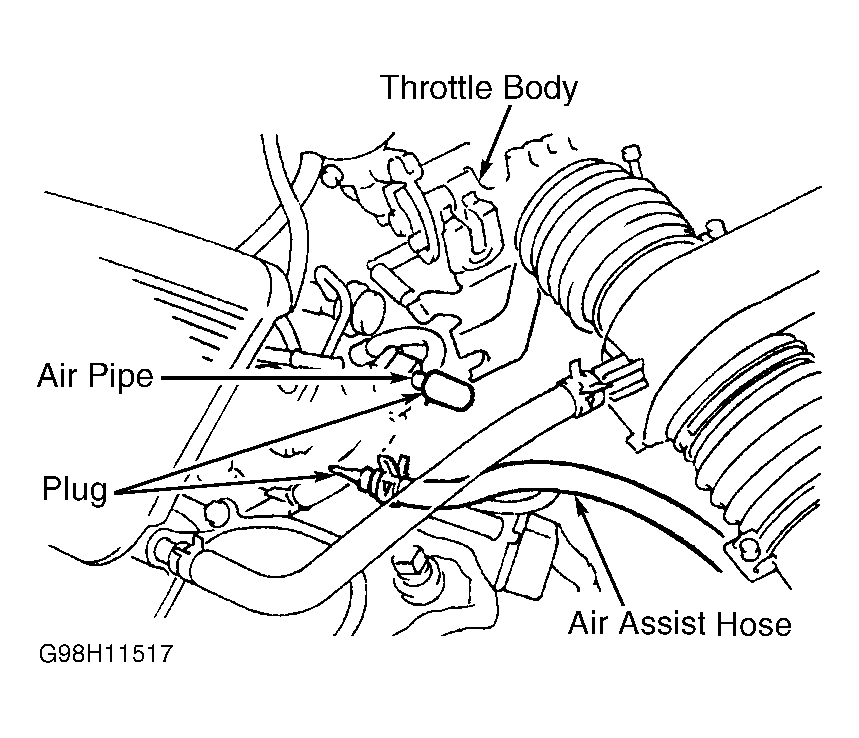

- Remove "V" bank cover located on top of engine (if necessary) and disconnect air assist hose from air pipe. See Fig 1. Air assist hose fits between IAC valve and air pipe. Place plug on end of air pipe and air assist hose. Place plug on end of air assist hose. Go to next step.
- Start engine and note idle speed. Idle speed should be 500 RPM or less which may cause the engine to stall. Turn ignition off. If idle speed is not 500 RPM or less, check for air leak between air assist hoses, air pipe and fuel injectors. Remove plugs and jumper wire. Reconnect air assist hose.
