Radiator Fan Relay: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: The relay mounting location is designed to dissipate heat. Ensure the relay is securely attached to prevent relay "thermal" shutdown and relay damage, resulting in possible engine overheating.

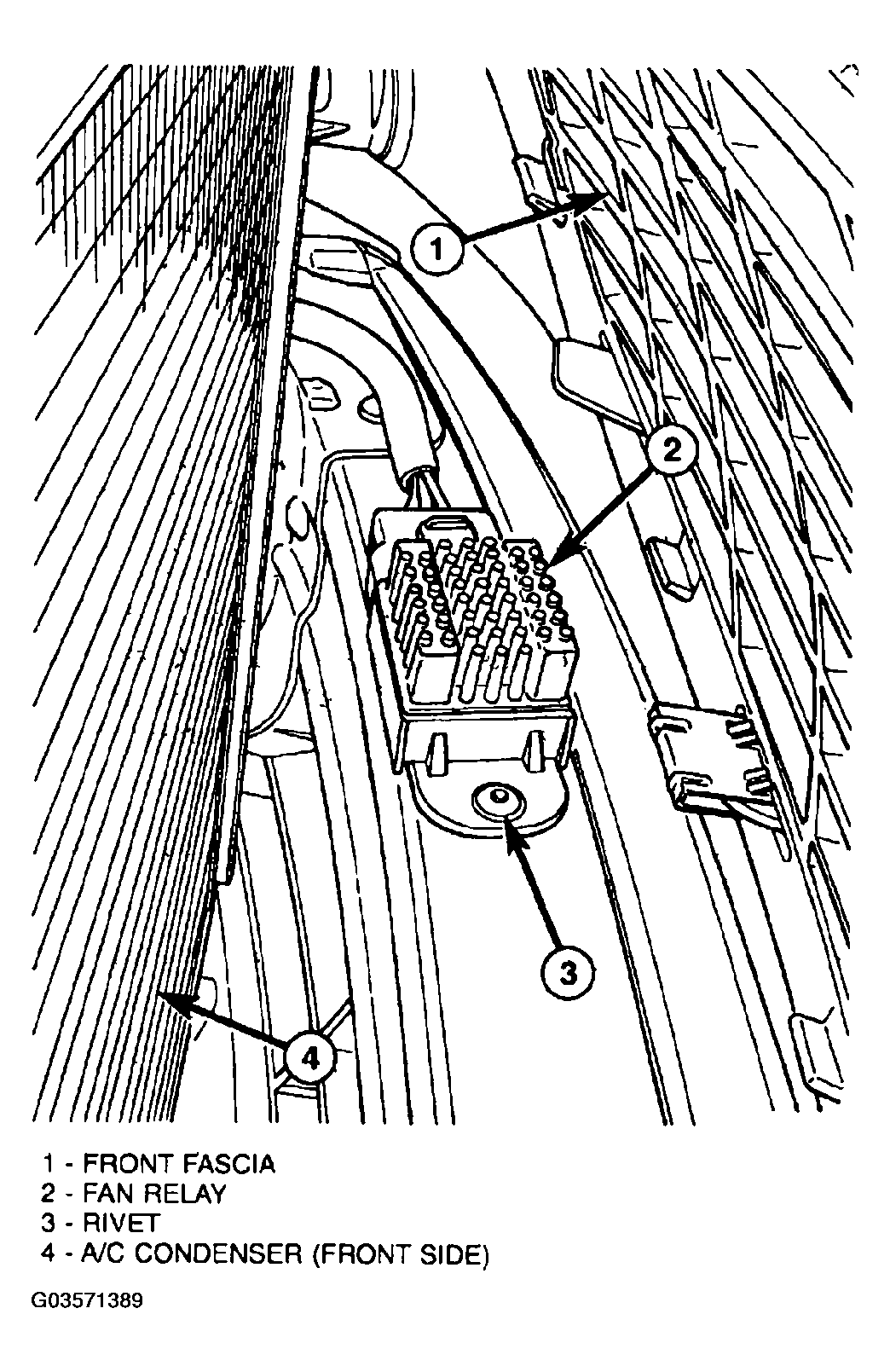

  1. Position relay and install a new rivet (Figure ).
  2. Connect electrical connector to relay.
  3. Install front facia (Refer to FRONT FASCIA ).
  4. Connect negative cable to battery.
