Inspection Procedure: Notes
WARNING: This page is about a different variant/trim than selected.
HINT:
- Following DTC chart is on the premise that the engine is cranked normally. If the engine is not cranked, proceed to the problem symptoms table PROBLEM SYMPTOMS TABLE .
- Read freeze frame data using the hand held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.
hand held tester:
- READ VALUE OF hand held TESTER (STARTER SIGNAL)
- Connect the hand held tester or OBD II scan tool to the DLC3.
- Turn the ignition switch ON and push the hand held tester main switch ON.
- Select the item "DIAGNOSIS/ENHANCED OBD II/DATA LIST/ALL/STARTER SIG" and read the value displayed the hand held tester.
Result:
IGNITION SWITCH POSITIONIgnition Switch Position ON START STA Signal OFF ON
- OK: REPLACE ECM (See REPLACEMENT )
- NG: Go to next step.
- INSPECT PARK/NEUTRAL POSITION SWITCH OR CLUTCH START SWITCH

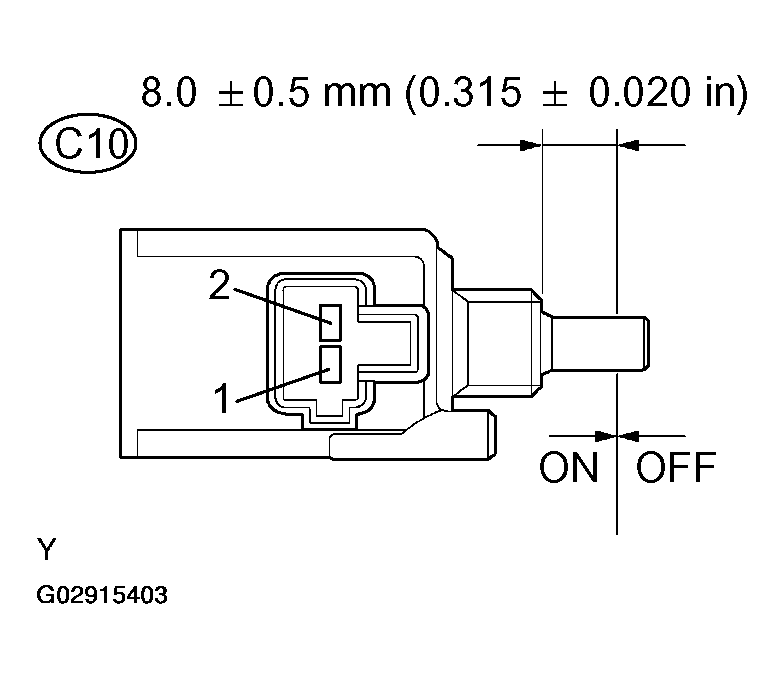

- Inspect the clutch start switch.
- Disconnect the C8 clutch start switch connector.

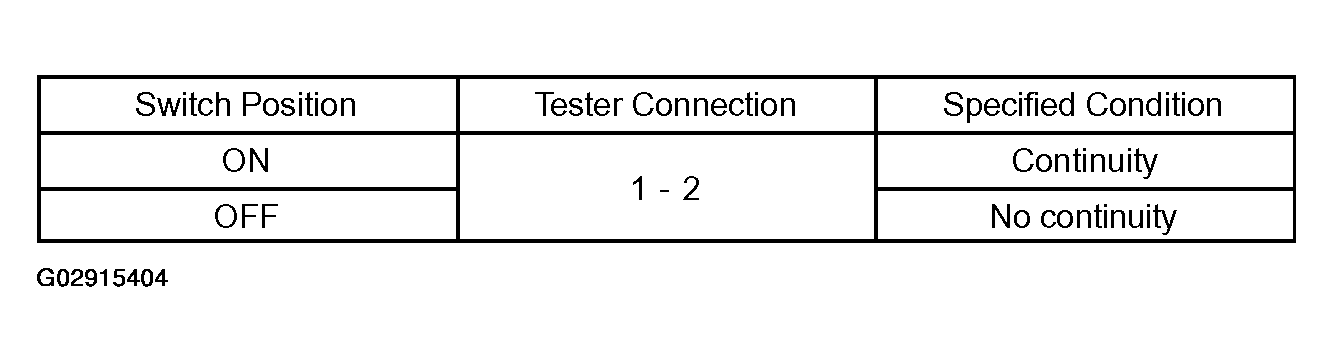

- Check for continuity between the terminals when the switch is ON and OFF.
Standard:
- Reconnect the clutch start switch connector.
- NG: REPLACE PARK/NEUTRAL POSITION SWITCH CLUTCH START SWITCH (GO TO NEXT STEP 3 AFTER THE REPLACEMENT)
- OK: Go to next step.
- Inspect the clutch start switch.
- READ VALUE OF hand held TESTER (STARTER SIGNAL)
- Connect the hand held tester to or OBD II scan tool the DLC3.
- Turn the ignition switch ON and push the hand held tester main switch ON.
- Select the item "DIAGNOSIS/ENHANCED OBD II/DATA LIST/ALL/STARTER SIG" and read its value displayed the hand held tester.
Result:
IGNITION SWITCH POSITIONIgnition Switch Position ON START STA Signal OFF ON
- OK: SYSTEM OK
- NG: Go to next step.

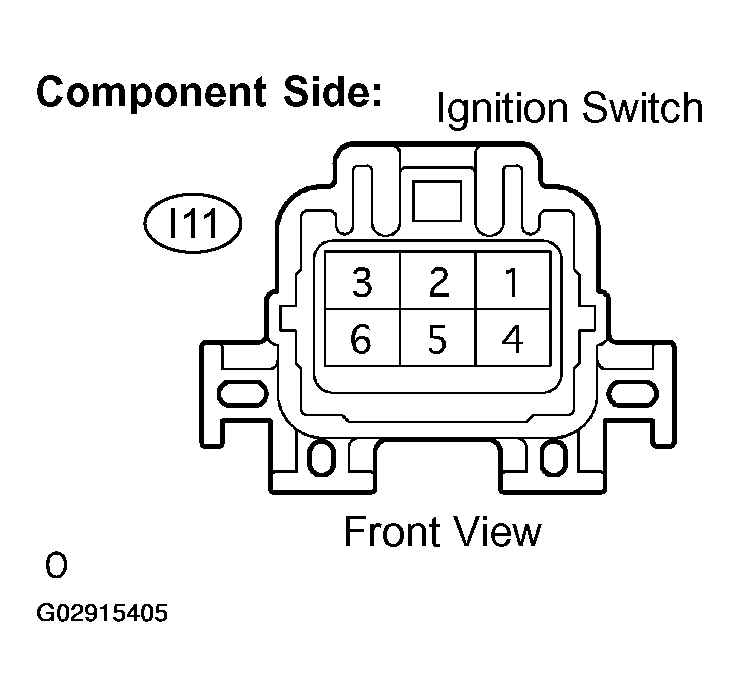

- INSPECT IGNITION OR STARTER SWITCH ASSY
- Check for continuity between the connector terminals shown in the chart below.CONNECTOR TERMINALS CONTINUITY
Switch Position Tester Connection Specified Condition LOCK All Terminals No continuity ACC 1-3 Continuity ON 1-2, 1-3, 2-3, 5-6 Continuity START 1-2, 4-5, 4-6, 5-6 Continuity
- NG: REPLACE IGNITION OR STARTER SWITCH ASSY (GO TO NEXT STEP 5 AFTER THE REPLACEMENT
- OK: Go to next step.
- Check for continuity between the connector terminals shown in the chart below.
- READ VALUE OF hand held TESTER (STARTER SIGNAL)
- Connect the hand held tester or OBD II scan tool to the DLC3.
- Turn the ignition switch ON and push the hand held tester main switch ON.
- Select the item "DIAGNOSIS/ENHANCED OBD II/DATA LIST/ALL/STARTER SIG" and read its value displayed the hand held tester.
Result:
IGNITION SWITCH POSITIONIgnition Switch Position ON START STA Signal OFF ON
- OK: SYSTEM OK
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
